02615 - Toro HoverPro 400 Walk-Behind Mower (SN: 403230000 - 407999999) Cylinder Barrel Assembly Parts Diagram

HoverPro 400 Walk-Behind Mower

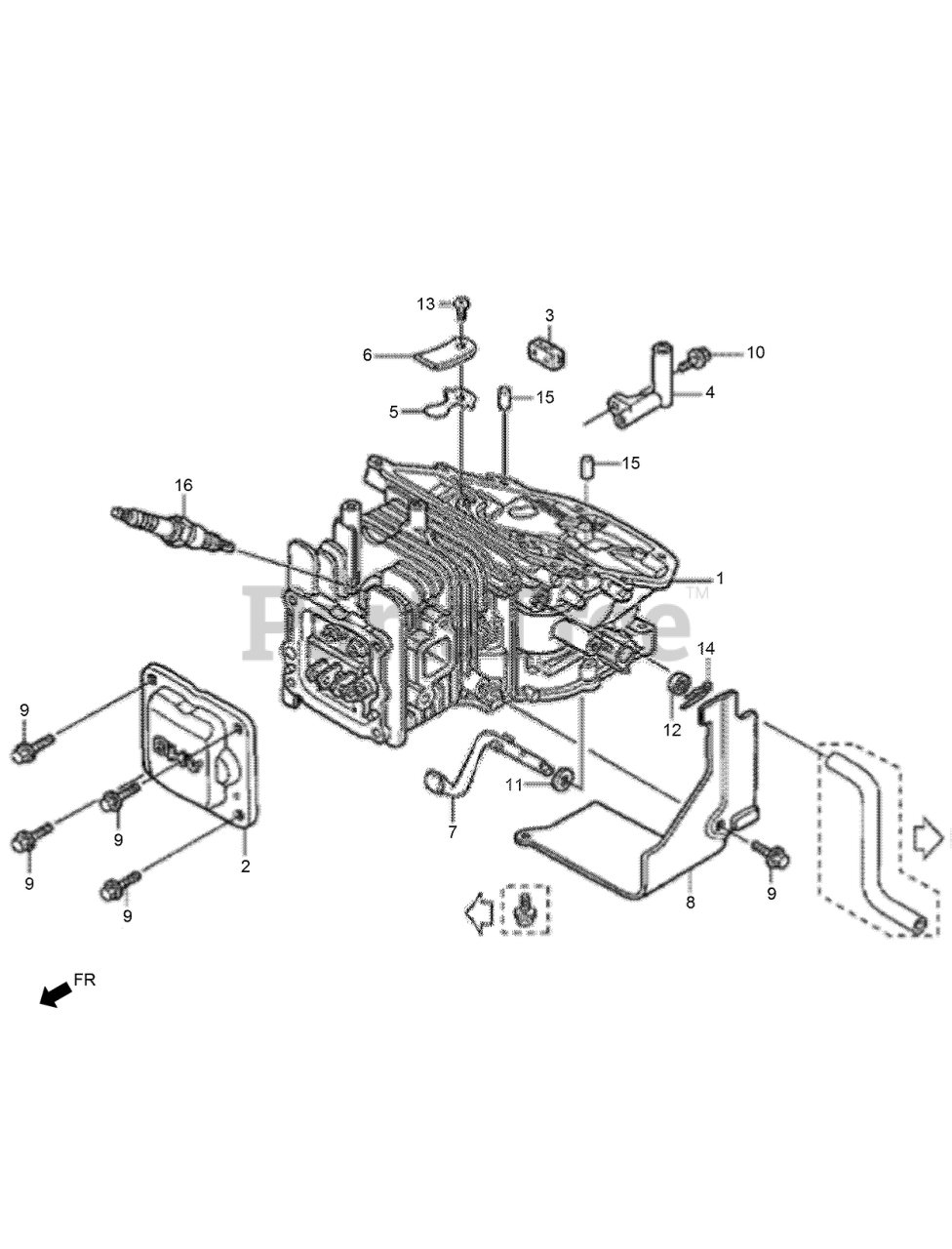

Cylinder Barrel Assembly Parts Diagram

  • Title

1

Toro 132-0117

CYLINDER BARREL ASM

$313.99

$

Usually ships in 3-6 days

0

2

Toro 132-0130

COVER-HEAD

$19.99

$

Usually ships in 3-6 days

0

3

Toro 132-0132

FILTER-BREATHER

$8.49

$

Usually ships in 3-6 days

0

4

Toro 132-0216

PIPE-BREATHER

$13.99

$

Usually ships in 3-6 days

0

5

Toro 132-0218

VALVE-OIL OUTLET

$6.99

$

Usually ships in 3-6 days

0

6

Toro 132-0219

PLATE-STOPPER

$3.99

$

Usually ships in 3-6 days

0

7

Toro 132-0309

SHAFT-GOVERNOR ARM

$8.99

$

Usually ships in 3-6 days

0

8

Toro 132-0474

SHROUD

$12.99

$

Usually ships in 3-6 days

0

9

Toro 132-0577

BOLT-FLANGE-5X12

$5.99

$

Usually ships in 3-6 days

0

10

Toro 132-0588

BOLT-4X10

$9.49

$

Usually ships in 3-6 days

0

11

Toro 132-0634

WASHER-5.2X9

$6.99

$

Usually ships in 3-6 days

0

12

Toro 132-0652

ROLLER-6X14.8

$11.99

$

Usually ships in 3-6 days

0

13

Toro 132-0662

OIL SEAL-5X11X5

$4.99

$

Usually ships in 3-6 days

0

14

Toro 132-0675

SCREW-PAN-3X5

$2.99

$

Usually ships in 3-6 days

0

15

Toro 132-0692

PIN-LOCK-6MM

$4.99

$

Usually ships in 3-6 days

0

16

Toro 131-8229

SPARKPLUG (U16FSR-UB)
(Superseded to 131-8230)

$7.99

$

Usually ships in 3-6 days

0

16

Toro 131-8230

SPARKPLUG (CR4HSB)

$7.99

$

Usually ships in 3-6 days

0
