02615 - Toro HoverPro 400 Walk-Behind Mower (SN: 315000001 - 315999999) (2015) CAMSHAFT ASSEMBLY Parts Diagram

HoverPro 400 Walk-Behind Mower

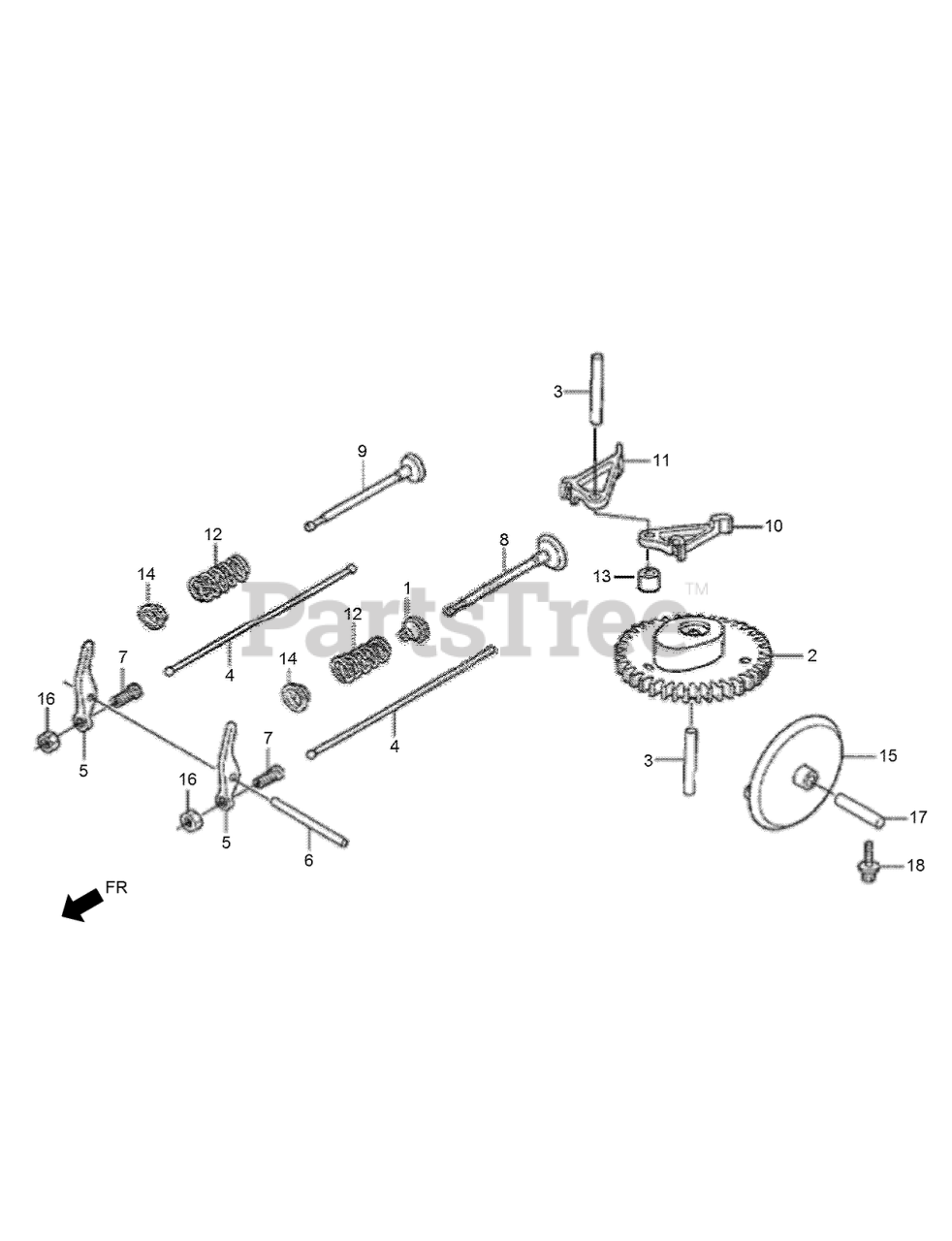

CAMSHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 132-0123

SEAL-VALVE STEM

$15.99

$

Usually ships in 3-6 days

0

2

Toro 132-0171

CAMSHAFT ASM

$53.99

$

Usually ships in 3-6 days

0

3

Toro 132-0173

ROLLER

$2.99

$

Usually ships in 3-6 days

0

4

Toro 132-0182

ROD-PUSH

$10.99

$

Usually ships in 3-6 days

0

5

Toro 132-0185

ARM-VALVE ROCKER

$26.99

$

Usually ships in 3-6 days

0

6

Toro 132-0186

ROLLER

$2.99

$

Usually ships in 3-6 days

0

7

Toro 132-0189

PIVOT-ROCKER ARM

$6.99

$

Usually ships in 3-6 days

0

8

Toro 132-0197

VALVE-INTAKE

$17.99

$

Usually ships in 3-6 days

0

9

Toro 132-0202

VALVE-EXHAUST

$19.99

$

Usually ships in 3-6 days

0

10

Toro 132-0204

LIFTER-VALVE

$13.99

$

Usually ships in 3-6 days

0

11

Toro 132-0205

LIFTER-EXHAUST VALVE

$13.99

$

Usually ships in 3-6 days

0

12

Toro 132-0208

SPRING-VALVE

$3.49

$

Usually ships in 3-6 days

0

13

Toro 132-0209

COLLAR-LIFTER

$3.99

$

Usually ships in 3-6 days

0

14

Toro 132-0212

RETAINER-VALVE SPRING

$6.99

$

Usually ships in 3-6 days

0

15

Toro 132-0217

SLINGER-OIL

$10.99

$

Usually ships in 3-6 days

0

16

Toro 132-0628

NUT-TAPPET ADJUSTING

$6.99

$

Usually ships in 3-6 days

0

17

Toro 132-0653

ROLLER-6X25

$3.99

$

Usually ships in 3-6 days

0

18

Toro 132-0674

BOLT-WASHER-5X16

$3.99

$

Usually ships in 3-6 days

0
