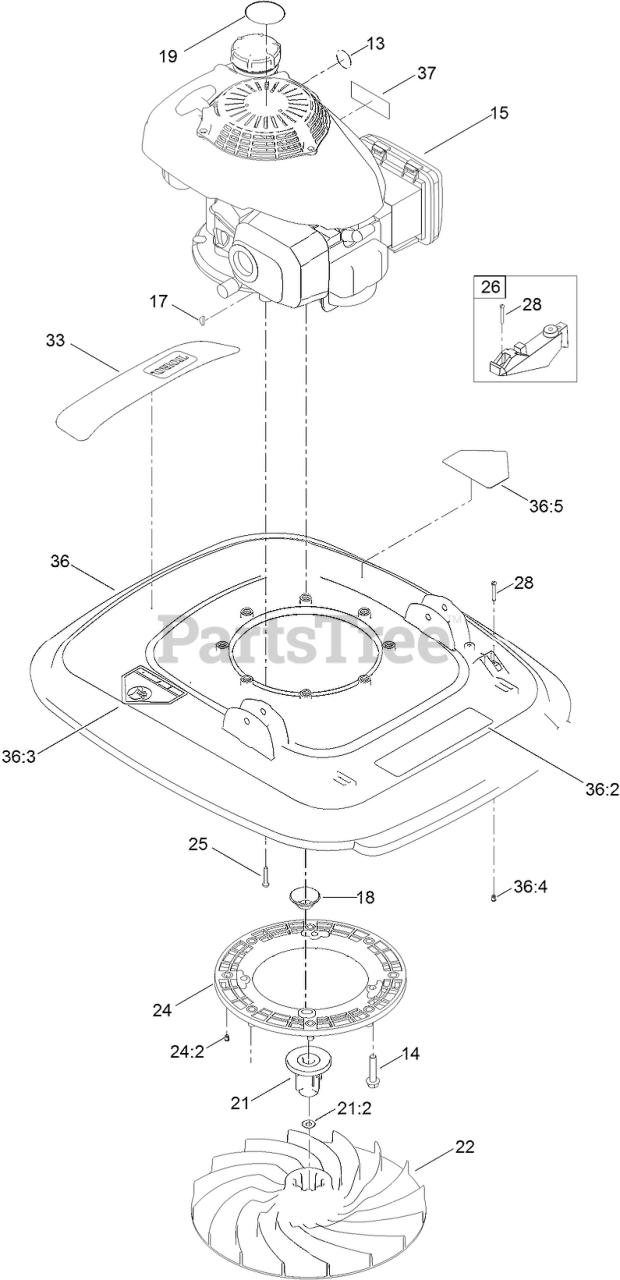

02611 - Toro HoverPro 550 Walk-Behind Mower (SN: 402000000 - 407999999) Engine and Impeller Assembly Parts Diagram

HoverPro 550 Walk-Behind Mower

Engine and Impeller Assembly Parts Diagram

  • Title
13

Toro H295124

DECAL

$

$

Currently unavailable

14

Toro 111-2157

SCREW-TAPTITE

$

$

Currently unavailable

15

Toro 111-7164

ENGINE-HONDA

$

$

Not available

17

Toro 1662

KEY-WOODRUFF

$

$

Currently unavailable

18

Toro H190118

PROTECTOR-SEAL, OIL

$

$

Currently unavailable

19

Toro 111-7340

DECAL-ENGINE

$

$

Currently unavailable

21

Toro H290011

DRIVE AND SPACER ASM

$

$

Not available

21:2

Toro 09479

WASHER-PLAIN

$

$

Not available

22

Toro H192268

IMPELLER

$

$

Currently unavailable

24

Toro H290003

FRAME-ENGINE

$

$

Currently unavailable

24:2

Toro H192266

INSERT-BRASS

$

$

Currently unavailable

25

Toro H292004

SET-SCREW

$

$

Currently unavailable

26

Toro H292269

BRACKET

$

$

Currently unavailable

28

Toro H292279

SCREW

$

$

Currently unavailable

33

Toro 111-5351

DECAL-HOVER PRO

$

$

Currently unavailable

36

Toro 111-9827

KIT - DECK 21" ASM 02611

$

$

Currently unavailable

36:2

Toro 111-5393

DECAL-WARNING

$

$

Currently unavailable

36:3

Toro 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

36:4

Toro H292280

INSERT

$

$

Currently unavailable

36:5

Toro 111-9826

DECAL-DANGER

$

$

Currently unavailable

37

Toro 133-8062

DECAL-ARRESTOR, SPARK

$2.99

$

Usually ships in 3-6 days

0
