02611 - Toro HoverPro 550 Walk-Behind Mower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

HoverPro 550 Walk-Behind Mower

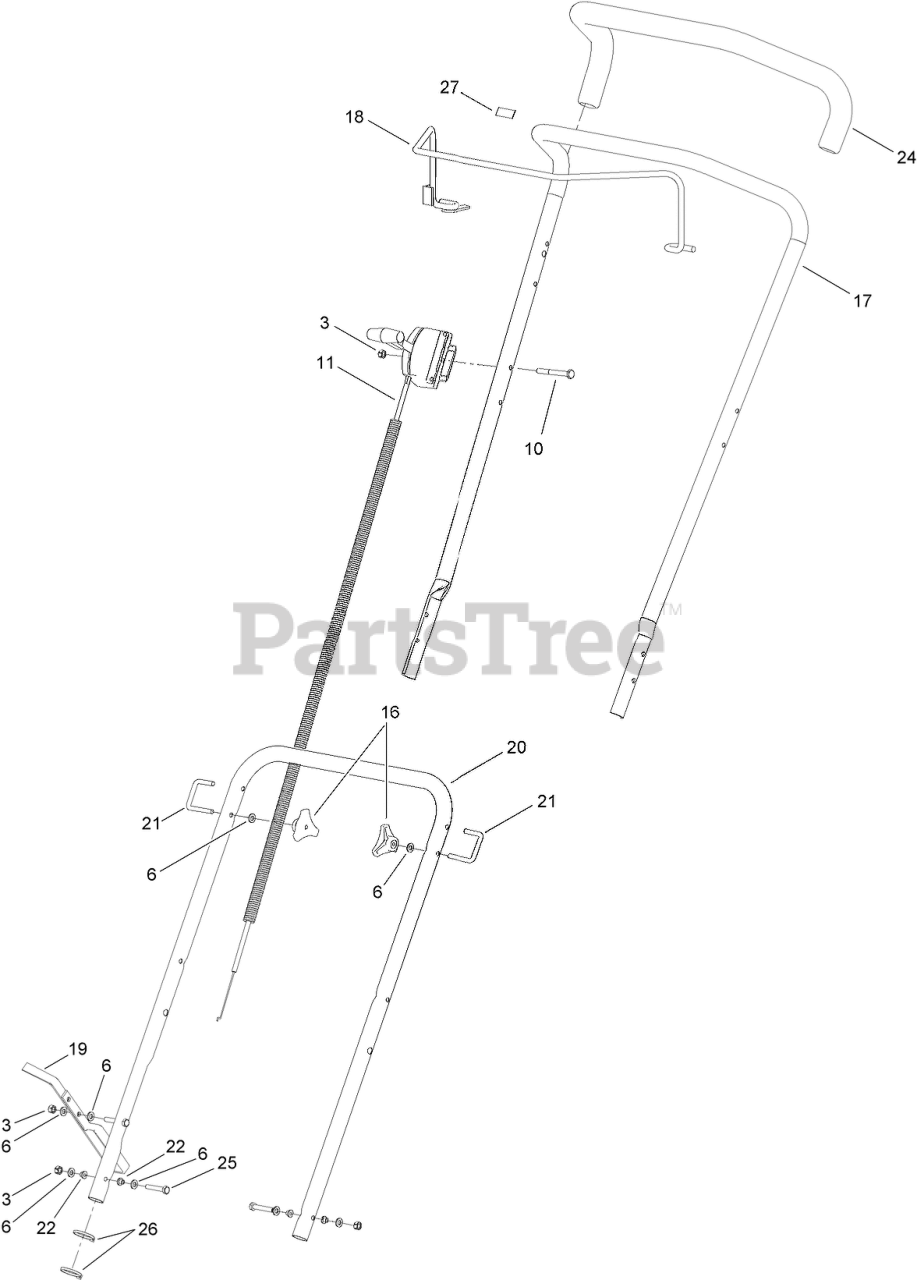

HANDLE ASSEMBLY Parts Diagram

  • Title
3

Toro 09438

NUT-NYLOC

$

$

Not available

6

Toro 100.000.630

WASHER
(Superseded to 111-7679)

$

$

Not available

10

Toro 09780

SETSCREW

$

$

Currently unavailable

11

Toro 111-2205

THROTTLE CONTROL WITH OPC ASM

$

$

Not available

16

Toro H192204

HANDWHEEL

$

$

Currently unavailable

17

Toro H290237

HANDLE-UPPER

$

$

Currently unavailable

18

Toro H290239

ARM-BAIL

$

$

Currently unavailable

19

Toro H290286

FOOTSTOP

$

$

Currently unavailable

20

Toro H290288

HANDLE-LOWER

$

$

Not available

21

Toro H292026

BOLT-U

$

$

Currently unavailable

22

Toro H292058

SPACER-HANDLE

$

$

Currently unavailable

24

Toro H292276

GRIP-HANDLE

$

$

Currently unavailable

25

Toro H292309

BOLT-HEX

$

$

Currently unavailable

26

Toro HY3966

TIE-CABLE

$

$

Not available

27

Toro H295159

DECAL-STOP

$

$

Currently unavailable
