02609 - Toro HoverPro 450 Walk-Behind Mower (SN: 313000001 - 313999999) (2013) OIL PAN ASSEMBLY Parts Diagram

HoverPro 450 Walk-Behind Mower

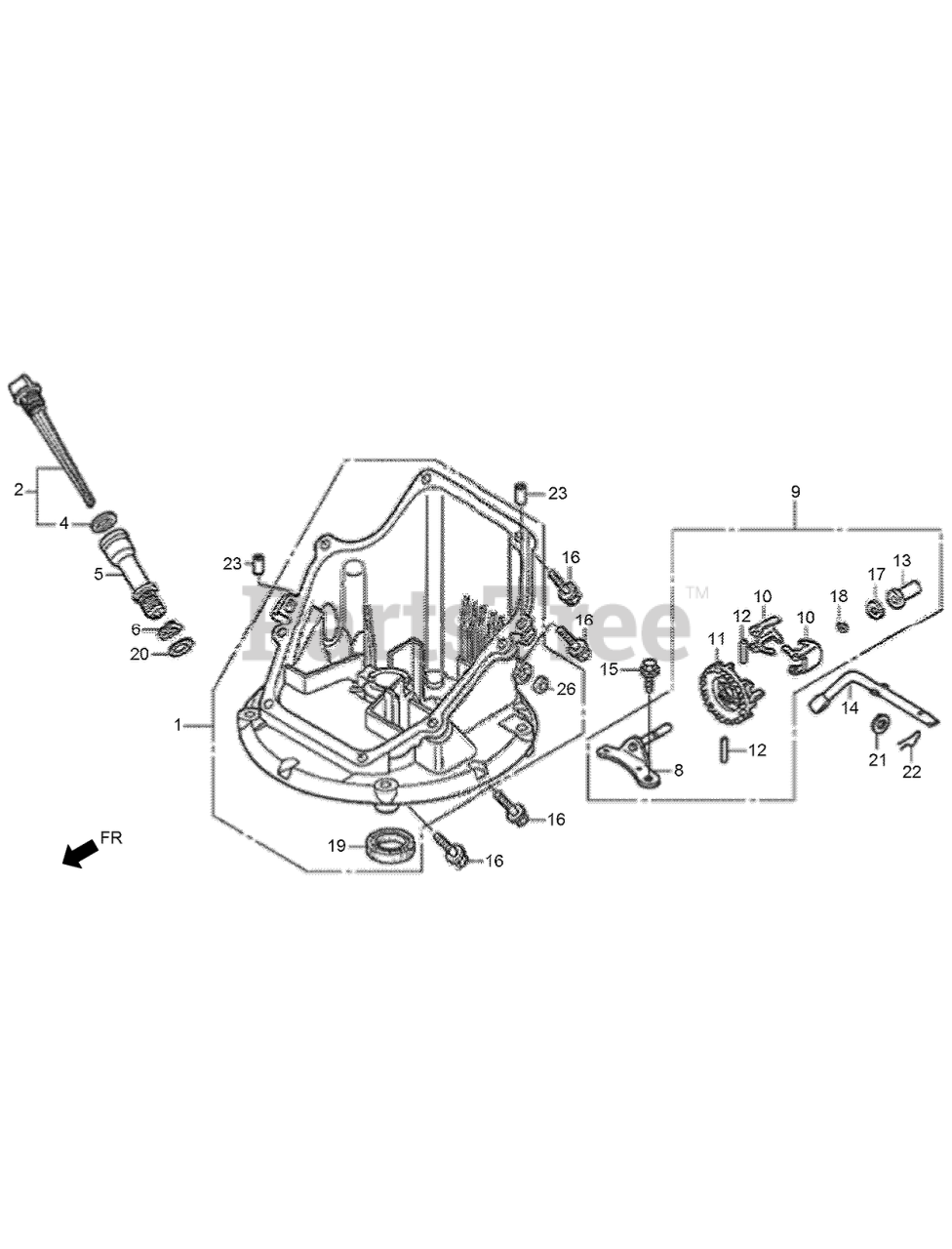

OIL PAN ASSEMBLY Parts Diagram

  • Title

1

Toro 132-0102

PAN ASM-OIL

$

$

Not available

2

Toro 132-0230

GAUGE ASM-OIL LEVEL
(Superseded to 132-0231)

$13.99

$

Usually ships in 3-6 days

0

4

Toro 132-0226

PACKING-OIL FILLER CAP

$8.49

$

Usually ships in 3-6 days

0

5

Toro 132-0227

EXTENSION-OIL FILLER

$17.99

$

Usually ships in 3-6 days

0

6

Toro 132-0229

WASHER-EXTENSION LOCK

$2.99

$

Usually ships in 3-6 days

0

8

Toro 132-0296

GOVERNOR HOLDER SHAFT ASM

$13.99

$

Usually ships in 3-6 days

0

9

Toro 132-0297

GOVERNOR ASM

$43.99

$

Usually ships in 3-6 days

0

10

Toro 132-0299

WEIGHT-GOVERNOR

$3.99

$

Usually ships in 3-6 days

0

11

Toro 132-0301

HOLDER-GOVERNOR WEIGHT

$11.99

$

Usually ships in 3-6 days

0

12

Toro 132-0303

PIN-GOVERNOR WEIGHT

$8.99

$

Usually ships in 3-6 days

0

13

Toro 132-0304

SLIDER-GOVERNOR

$5.49

$

Usually ships in 3-6 days

0

14

Toro 132-0308

SHAFT-GOVERNOR ARM

$8.49

$

Usually ships in 3-6 days

0

15

Toro 132-0595

BOLT-FLANGE-6X14

$11.99

$

Usually ships in 3-6 days

0

16

Toro 132-0606

BOLT-FLANGE-6X26

$8.99

$

Usually ships in 3-6 days

0

16

Toro 132-0620

BOLT-FLANGE-6X25

$10.99

$

Usually ships in 3-6 days

0

17

Toro 132-0635

WASHER-THRUST-6MM

$6.49

$

Usually ships in 3-6 days

0

18

Toro 132-0642

CLIP-GOVERNOR HOLDER

$3.99

$

Usually ships in 3-6 days

0

19

Toro 132-0660

OIL SEAL-28X41.25X6

$13.99

$

Usually ships in 3-6 days

0

20

Toro 132-0666

O-RING-14.8X2.4

$6.49

$

Usually ships in 3-6 days

0

21

Toro 132-0688

WASHER-PLAIN-6MM

$3.49

$

Usually ships in 3-6 days

0

22

Toro 132-0693

PIN-LOCK-8MM

$5.99

$

Usually ships in 3-6 days

0

23

Toro 132-0696

DOWEL PIN-8X20

$7.49

$

Usually ships in 3-6 days

0

26

Toro 132-0661

OIL SEAL-6X11X4

$5.49

$

Usually ships in 3-6 days

0
