02606 - Toro HoverPro 550 Walk-Behind Mower (SN: 400000000 - 999999999) FUEL TANK AND FUEL PUMP ASSEMBLY Parts Diagram

HoverPro 550 Walk-Behind Mower

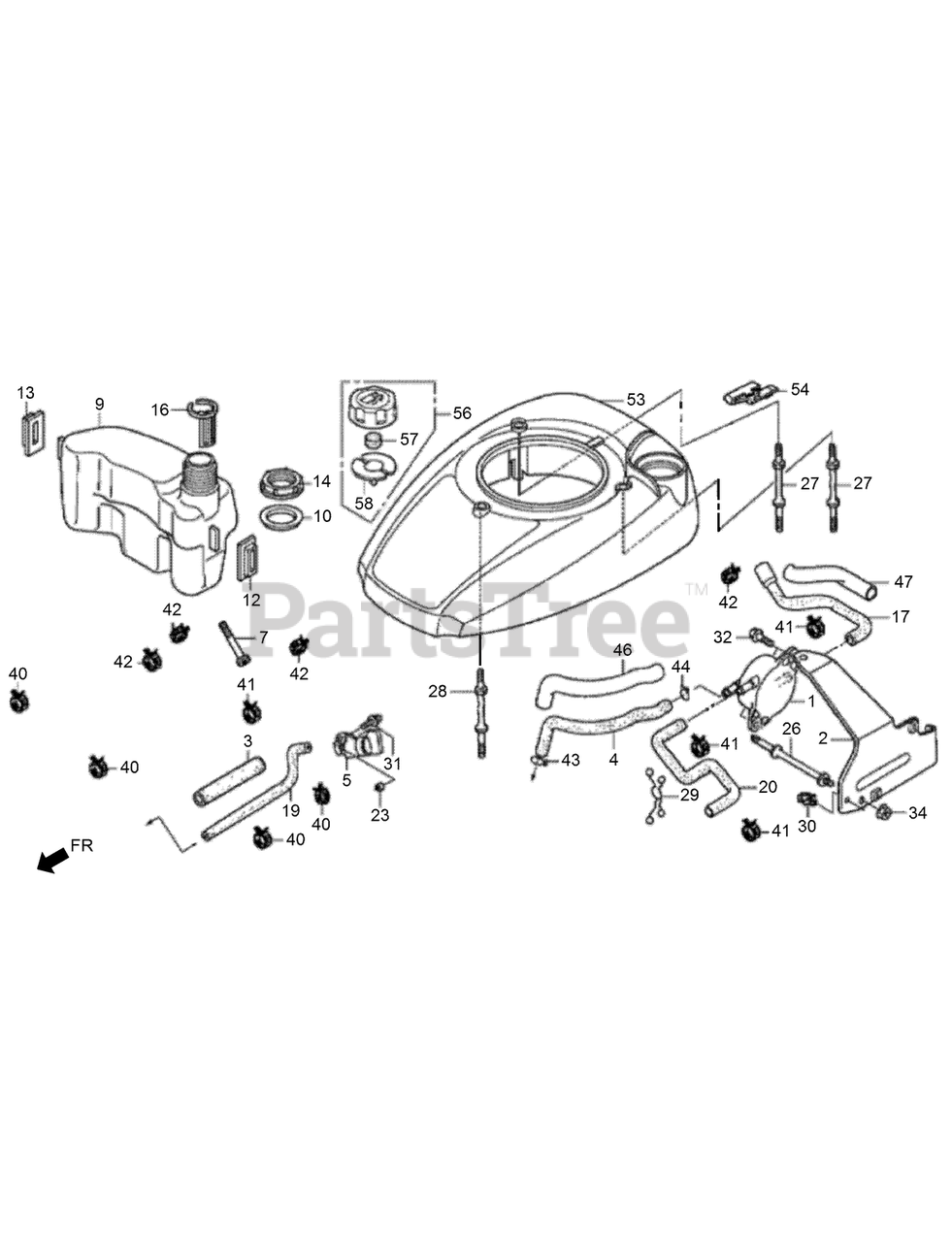

FUEL TANK AND FUEL PUMP ASSEMBLY Parts Diagram

  • Title
1

Toro 132-0346

PUMP ASM-FUEL

$94.99

$

Usually ships in 3-6 days

0

2

Toro 132-0347

STAY-FUEL PUMP

$45.99

$

Usually ships in 3-6 days

0

3

Toro 132-0349

RUBBER-SUPPORTER

$9.49

$

Usually ships in 3-6 days

0

4

Toro 132-0352

TUBE-DIAPHRAGM

$8.99

$

Usually ships in 3-6 days

0

5

Toro 132-0355

COCK ASM-FUEL

$18.99

$

Usually ships in 3-6 days

0

7

Toro 132-0356

STRAINER-FUEL

$21.99

$

Usually ships in 3-6 days

0

9

Toro 132-0401

TANK-FUEL

$46.99

$

Usually ships in 3-6 days

0

10

Toro 132-0402

SEAL-FUEL FILLER NECK

$1.49

$

Usually ships in 3-6 days

0

12

Toro 132-0406

RUBBER A-TANK MOUNTING

$29.99

$

Usually ships in 3-6 days

0

13

Toro 132-0408

RUBBER B-TANK MOUNTING

$5.49

$

Usually ships in 3-6 days

0

14

Toro 132-0409

NUT-TANK MOUNTING

$2.99

$

Usually ships in 3-6 days

0

16

Toro 132-0432

GAUGE-FUEL LEVEL

$0.99

$

Usually ships in 3-6 days

0

17

Toro 132-0436

TUBE-FUEL TANK

$53.99

$

Usually ships in 3-6 days

0

19

Toro 132-0438

TUBE-FUEL

$42.99

$

Usually ships in 3-6 days

0

20

Toro 132-0444

TUBE B-FUEL

$65.99

$

Usually ships in 3-6 days

0

23

Toro 132-0670

COLLAR-FUEL COCK

$3.99

$

Usually ships in 3-6 days

0

26

Toro 132-0607

BOLT-STUD

$24.99

$

Usually ships in 3-6 days

0

27

Toro 132-0611

BOLT-STUD

$4.49

$

Usually ships in 3-6 days

0

28

Toro 132-0611

BOLT-STUD

$4.49

$

Usually ships in 3-6 days

0

29

Toro 132-0639

CLIP-PURSE LOCK

$12.99

$

Usually ships in 3-6 days

0

30

Toro 132-0644

CLIP-WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

31

Toro 132-0681

SCREW-WASHER-5X10

$3.49

$

Usually ships in 3-6 days

0

32

Toro 132-0683

SCREW-WASHER-5X14

$4.49

$

Usually ships in 3-6 days

0

34

Toro 132-4881

NUT-FLANGE-6MM

$3.49

$

Usually ships in 3-6 days

0

40

Toro 131-8211

CLAMP-TUBE

$7.99

$

Usually ships in 3-6 days

0

41

Toro 131-8212

CLAMP-TUBE

$8.99

$

Usually ships in 3-6 days

0

42

Toro 131-8213

CLAMP-TUBE

$8.99

$

Usually ships in 3-6 days

0

43

Toro 131-8214

CLIP-TUBE

$3.99

$

Usually ships in 3-6 days

0

44

Toro 131-8215

CLIP-TUBE

$3.99

$

Usually ships in 3-6 days

0

46

Toro 131-8217

TUBE-VINYL-9X11X210

$5.49

$

Usually ships in 3-6 days

0

47

Toro 131-8219

TUBE-VINYL-13X15X90

$5.99

$

Usually ships in 3-6 days

0

53

Toro 132-0470

COVER-FAN (NH1)

$24.99

$

Usually ships in 3-6 days

0

54

Toro 132-0404

CLIP-TANK MOUNTING (NH1)

$15.99

$

Usually ships in 3-6 days

0

56

Toro 132-0411

CAP ASM-FUEL TANK

$10.99

$

Usually ships in 3-6 days

0

57

Toro 132-0420

SPONGE-FUEL CAP BREATHER

$4.49

$

In Stock, only 1 left!

0

58

Toro 132-0423

PACKING-FUEL CAP

$8.99

$

In Stock, only 1 left!

0
