02606 - Toro HoverPro 550 Walk-Behind Mower (SN: 314000001 - 314000372) (2014) PISTON AND CONNECTING ROD ASSEMBLY Parts Diagram

HoverPro 550 Walk-Behind Mower

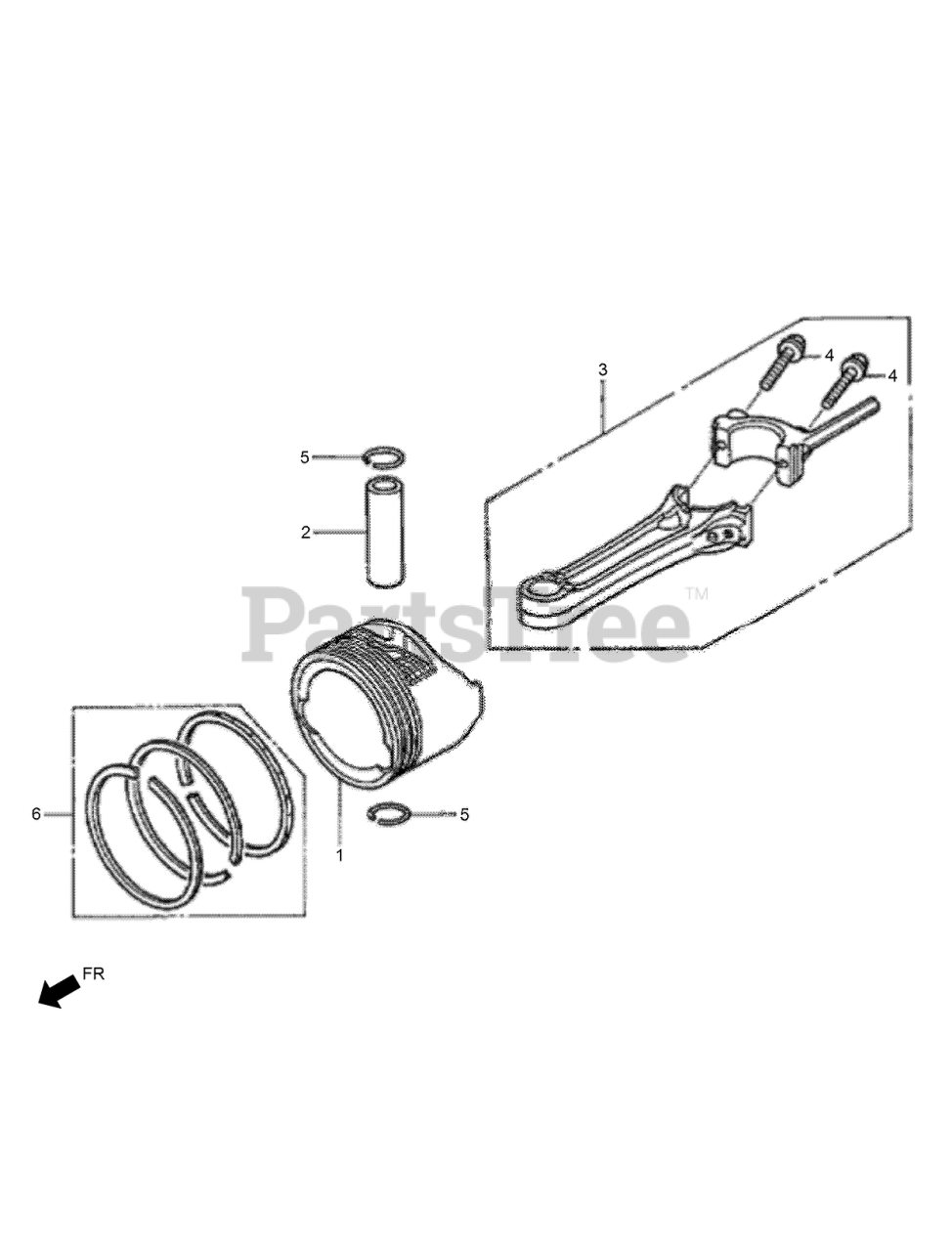

PISTON AND CONNECTING ROD ASSEMBLY Parts Diagram

  • Title
1

Toro 132-0143

PISTON

$77.99

$

Usually ships in 3-6 days

0

2

Toro 132-0149

PIN-PISTON (from S/N 3381418)

$10.99

$

Usually ships in 3-6 days

0

2

Toro 132-0152

PIN-PISTON (to S/N 3381417)

$38.99

$

Usually ships in 3-6 days

0

3

Toro 132-0156

ROD ASM-CONNECTING

$110.99

$

Usually ships in 3-6 days

0

4

Toro 132-0573

BOLT-CONNECTING ROD

$14.99

$

Usually ships in 3-6 days

0

5

Toro 132-0636

CLIP-PISTON PIN-13MM

$6.99

$

Usually ships in 3-6 days

0

6

Toro 132-0136

RING SET-PISTON (STD)

$

$

Not available
