02606 - Toro HoverPro 550 Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE, DECK AND IMPELLER ASSEMBLY Parts Diagram

HoverPro 550 Walk-Behind Mower

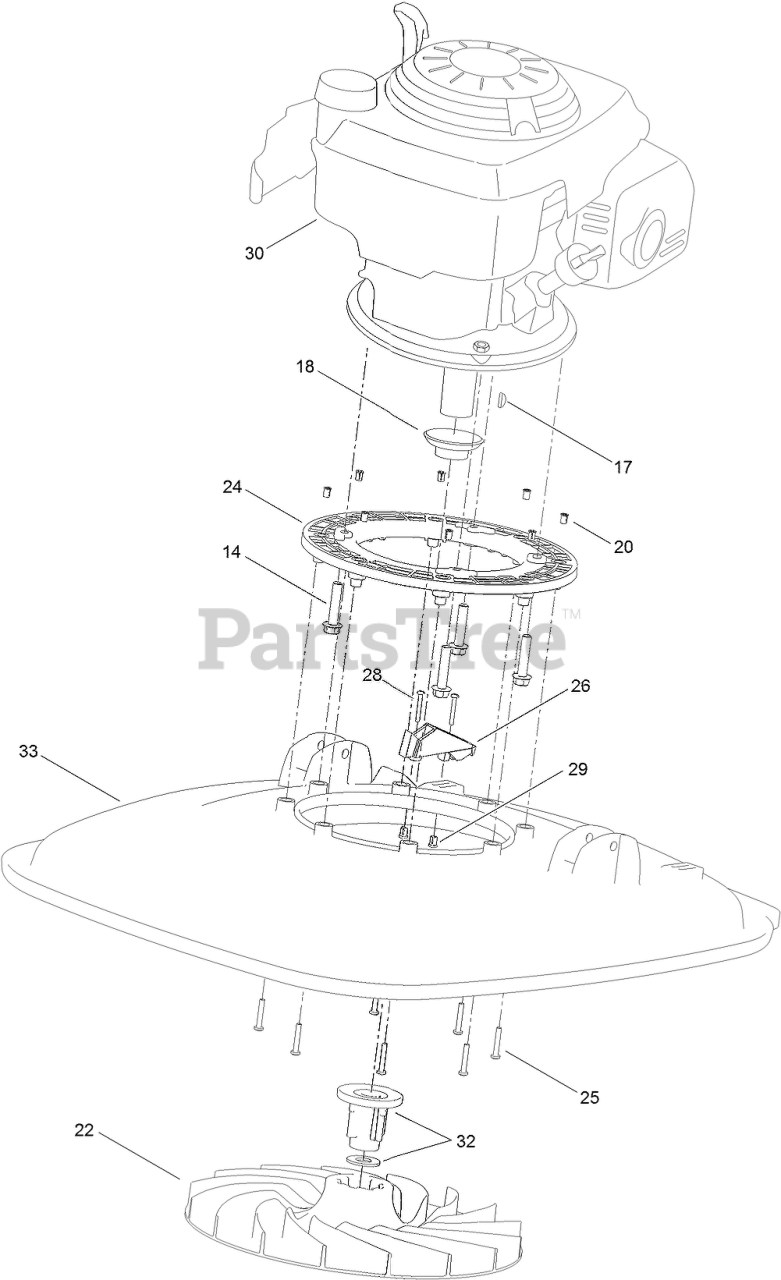

ENGINE, DECK AND IMPELLER ASSEMBLY Parts Diagram

  • Title
14

Toro 111-2157

SCREW-TAPTITE

$

$

Currently unavailable

17

Toro 1662

KEY-WOODRUFF

$

$

Currently unavailable

18

Toro H190118

PROTECTOR-SEAL, OIL

$

$

Currently unavailable

20

Toro H192266

INSERT-BRASS

$

$

Currently unavailable

22

Toro H192268

IMPELLER

$

$

Currently unavailable

24

Toro H292000

FRAME-MOUNTING, ENGINE

$

$

Not available

25

Toro H292004

SET-SCREW

$

$

Currently unavailable

26

Toro H292269

BRACKET

$

$

Currently unavailable

28

Toro H292279

SCREW

$

$

Currently unavailable

29

Toro H292280

INSERT

$

$

Currently unavailable

30

Toro H292312

ENGINE-HONDA
(Superseded to 111-7163)

$

$

Not available

32

Toro H290011

DRIVE AND SPACER ASM

$

$

Not available

33

Toro H290221

DECK-DRILLED

$

$

Not available
