02603 - Toro HoverPro 450 Walk-Behind Mower (SN: 314000001 - 314999999) (2014) FUEL TANK AND FUEL PUMP ASSEMBLY Parts Diagram

HoverPro 450 Walk-Behind Mower

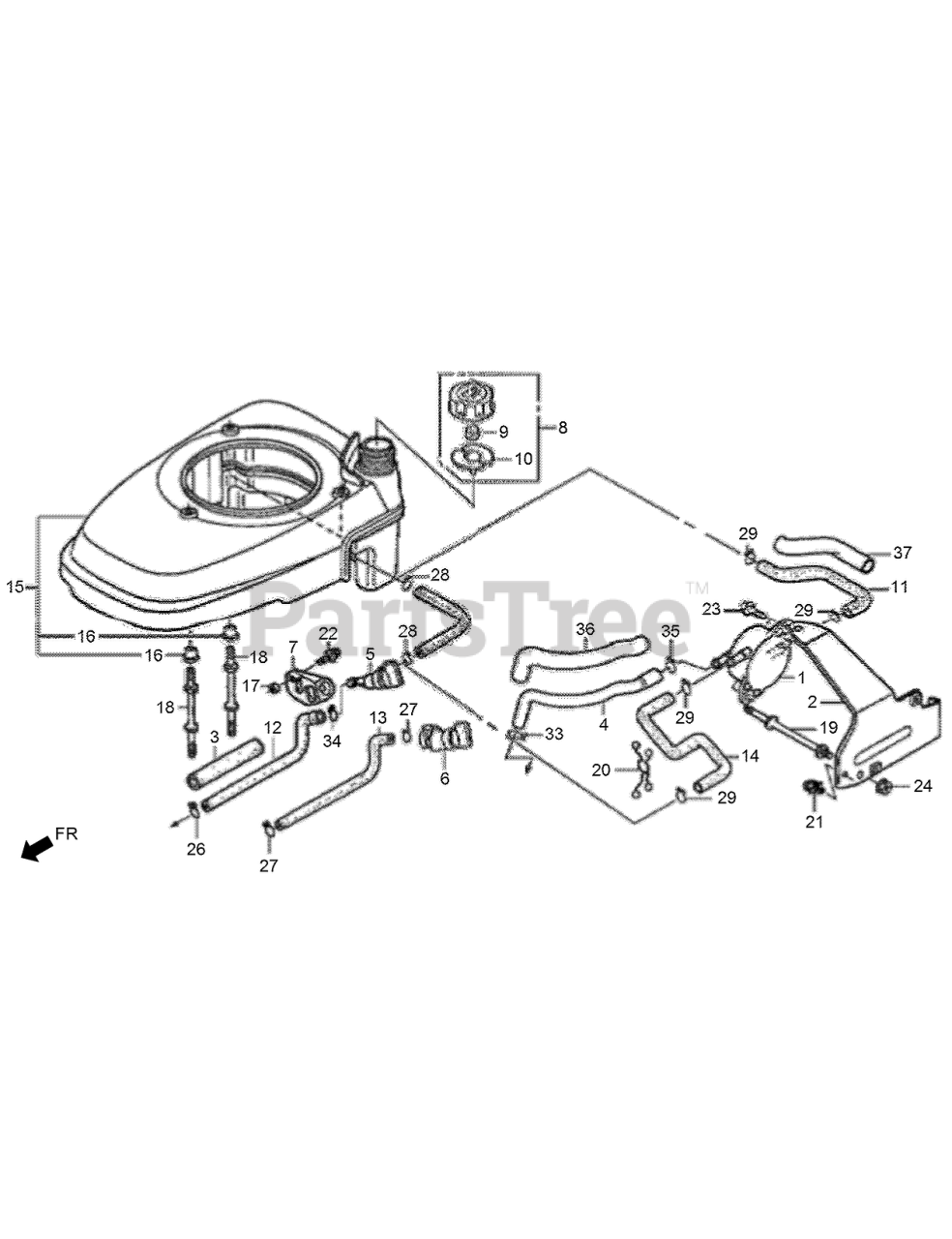

FUEL TANK AND FUEL PUMP ASSEMBLY Parts Diagram

  • Title
1

Toro 132-0346

PUMP ASM-FUEL

$94.99

$

Usually ships in 3-6 days

0

2

Toro 132-0348

STAY-FUEL PUMP

$55.99

$

Usually ships in 3-6 days

0

3

Toro 132-0349

RUBBER-SUPPORTER

$9.49

$

Usually ships in 3-6 days

0

4

Toro 132-0353

TUBE-DIAPHRAGM

$8.99

$

Usually ships in 3-6 days

0

5

Toro 132-0354

COCK ASM-FUEL (to S/N 1694818)

$

$

Not available

6

Toro 132-0355

COCK ASM-FUEL (from S/N 1694819)

$18.99

$

Usually ships in 3-6 days

0

7

Toro 132-0363

BRACKET-FUEL COCK (to S/N 1694818)

$5.99

$

Usually ships in 3-6 days

0

8

Toro 132-0411

CAP ASM-FUEL TANK

$10.99

$

Usually ships in 3-6 days

0

9

Toro 132-0420

SPONGE-FUEL CAP BREATHER

$4.49

$

In Stock, only 1 left!

0

10

Toro 132-0423

PACKING-FUEL CAP

$8.99

$

In Stock, only 1 left!

0

11

Toro 132-0434

TUBE-FUEL TANK

$18.99

$

Usually ships in 3-6 days

0

12

Toro 132-0439

TUBE-FUEL (to S/N 1694818)

$16.99

$

Usually ships in 3-6 days

0

13

Toro 132-0440

TUBE-FUEL (from S/N 1694819)

$17.99

$

Usually ships in 3-6 days

0

14

Toro 132-0442

TUBE B-FUEL (to S/N 1963046)

$10.99

$

Usually ships in 3-6 days

0

14

Toro 132-0443

TUBE B-FUEL (from S/N 1963047)

$8.99

$

Usually ships in 3-6 days

0

15

Toro 132-0466

FAN COVER ASM (NH1)

$139.99

$

Usually ships in 3-6 days

0

16

Toro 132-0471

COLLAR-FAN COVER

$5.49

$

Usually ships in 3-6 days

0

17

Toro 132-0527

COLLAR-FR WINKER

$5.99

$

Usually ships in 3-6 days

0

18

Toro 132-0609

BOLT-STUD

$

$

Not available

19

Toro 132-0607

BOLT-STUD

$24.99

$

Usually ships in 3-6 days

0

20

Toro 132-0639

CLIP-PURSE LOCK

$12.99

$

Usually ships in 3-6 days

0

21

Toro 132-0644

CLIP-WIRE HARNESS

$12.99

$

Usually ships in 3-6 days

0

22

Toro 132-0681

SCREW-WASHER-5X10

$3.49

$

Usually ships in 3-6 days

0

23

Toro 132-0683

SCREW-WASHER-5X14

$4.49

$

Usually ships in 3-6 days

0

24

Toro 132-4881

NUT-FLANGE-6MM

$3.49

$

Usually ships in 3-6 days

0

26

Toro 132-0699

CLIP-TUBE (to S/N 1694818)

$3.49

$

Usually ships in 3-6 days

0

27

Toro 132-0699

CLIP-TUBE (from S/N 1694819)

$3.49

$

Usually ships in 3-6 days

0

28

Toro 131-8209

CLIP-TUBE

$6.49

$

Usually ships in 3-6 days

0

29

Toro 131-8209

CLIP-TUBE

$6.49

$

Usually ships in 3-6 days

0

33

Toro 131-8214

CLIP-TUBE

$3.99

$

Usually ships in 3-6 days

0

34

Toro 131-8215

CLIP-TUBE (to S/N 1694818)

$3.99

$

Usually ships in 3-6 days

0

35

Toro 131-8215

CLIP-TUBE

$3.99

$

Usually ships in 3-6 days

0

36

Toro 131-8217

TUBE-VINYL-9X11X210

$5.49

$

Usually ships in 3-6 days

0

37

Toro 131-8218

TUBE-VINYL-11X13X100

$

$

Not available
