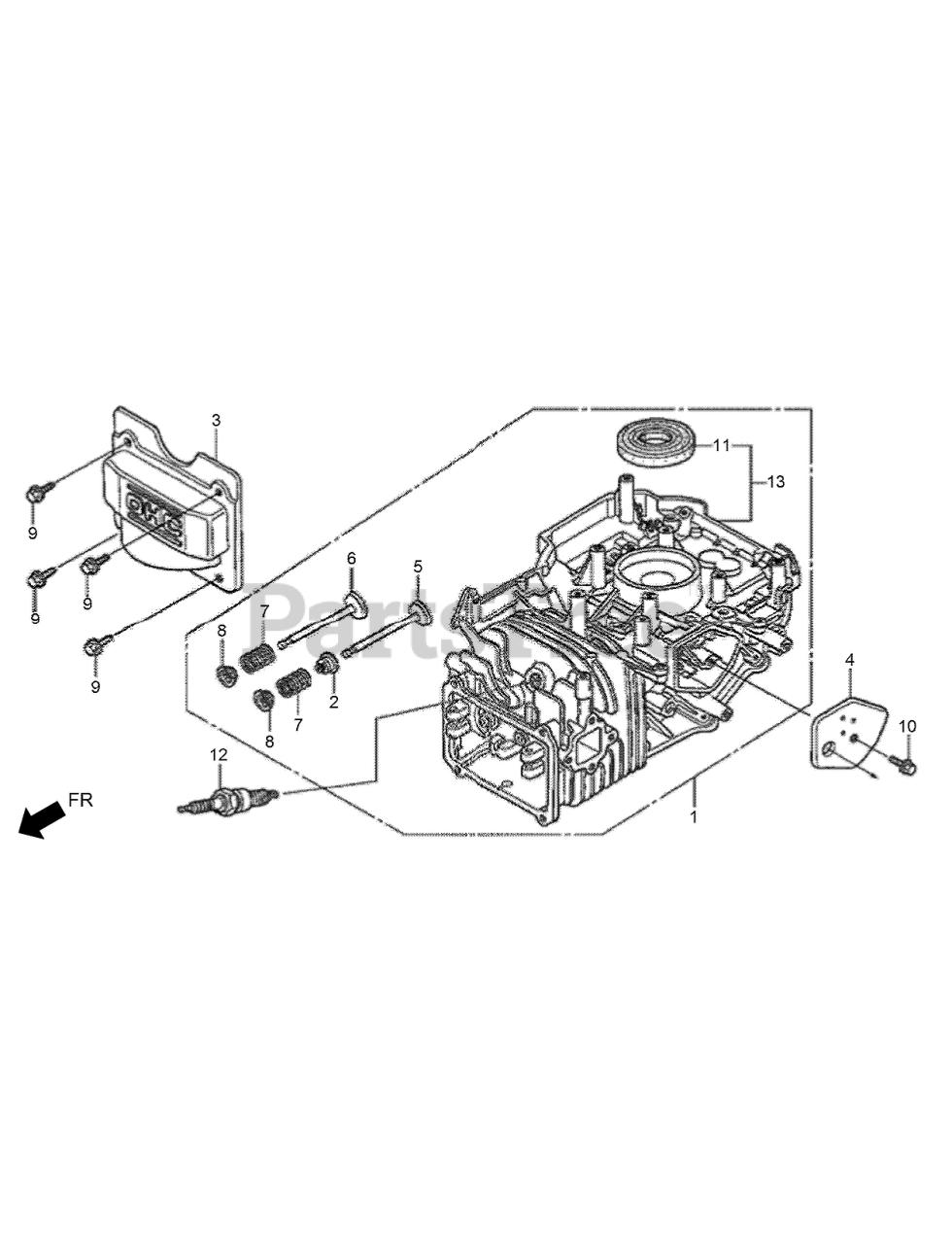

02602 - Toro HoverPro 450 Walk-Behind Mower (SN: 314000001 - 314999999) (2014) CYLINDER BARREL ASSEMBLY Parts Diagram

HoverPro 450 Walk-Behind Mower

CYLINDER BARREL ASSEMBLY Parts Diagram

  • Title

1

Toro 132-0116

BARREL ASM-CYLINDER (to S/N 4079546)

$338.99

$

Usually ships in 3-6 days

0

2

Toro 132-0122

SEAL-VALVE STEM

$16.99

$

Usually ships in 3-6 days

0

3

Toro 132-0129

COVER-HEAD

$12.99

$

Usually ships in 3-6 days

0

4

Toro 132-0131

BREATHER COVER ASM

$18.99

$

Usually ships in 3-6 days

0

5

Toro 132-0192

VALVE-INTAKE
(Superseded to 132-0193)

$8.99

$

Usually ships in 3-6 days

0

6

Toro 132-0201

VALVE-EXHAUST

$

$

Currently unavailable

7

Toro 132-0207

SPRING-VALVE

$2.99

$

Usually ships in 3-6 days

0

8

Toro 132-0211

RETAINER-INTAKE VALVE SPRING

$2.49

$

Usually ships in 3-6 days

0

9

Toro 132-4880

BOLT-FLANGE-6X12

$7.99

$

Usually ships in 3-6 days

0

10

Toro 132-0595

BOLT-FLANGE-6X14

$11.99

$

Usually ships in 3-6 days

0

11

Toro 132-0655

OIL SEAL-25.4X62X6

$14.99

$

Usually ships in 3-6 days

0

12

Toro 131-8232

SPARKPLUG
(Superseded to 81-3250)

$3.49

$

In Stock, Qty 20+

0

13

Toro 132-0109

BARREL ASM-CYLINDER (from S/N 4079547 to 4408691)

$306.99

$

Usually ships in 3-6 days

0

13

Toro 132-0110

BARREL ASM-CYLINDER (from S/N 4408692)

$306.99

$

Usually ships in 3-6 days

0
