02602 - Toro HoverPro 450 Walk-Behind Mower (SN: 312000001 - 312999999) (2012) PISTON AND CONNECTING ROD ASSEMBLY Parts Diagram

HoverPro 450 Walk-Behind Mower

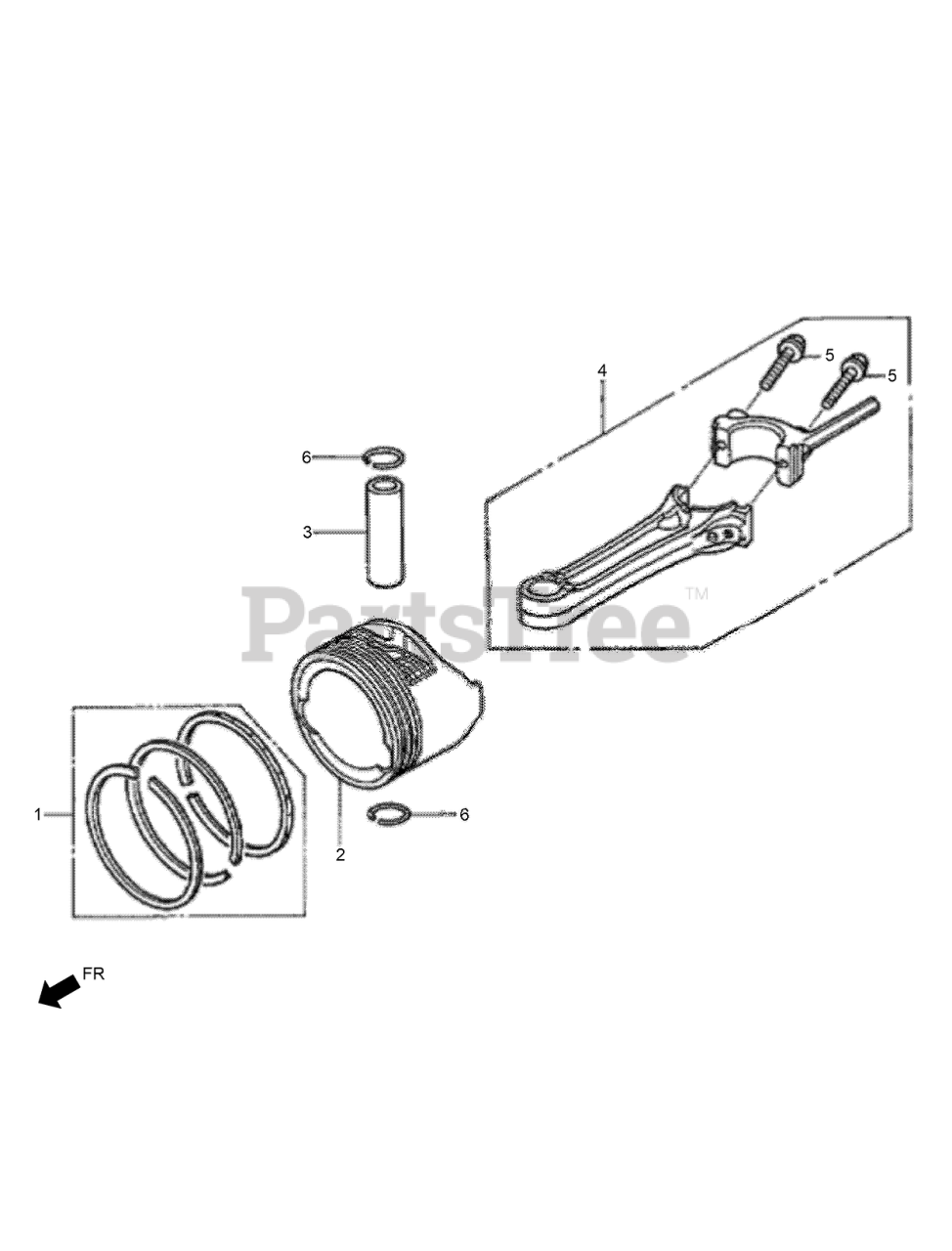

PISTON AND CONNECTING ROD ASSEMBLY Parts Diagram

  • Title

1

Toro 132-0134

RING SET-PISTON (from S/N 2277163 to 2531728)

$54.99

$

Usually ships in 3-6 days

0

1

Toro 132-0135

RING SET-PISTON (STD) (from S/N 2277163 to 2531728)

$54.99

$

Usually ships in 3-6 days

0

1

Toro 132-0136

RING SET-PISTON (STD) (from S/N 2531729)

$

$

Not available

1

Toro 132-0139

RING SET-PISTON (to S/N 2277162)

$54.99

$

Usually ships in 3-6 days

0

1

Toro 132-0140

RING SET-PISTON (to S/N 2531728)

$54.99

$

Usually ships in 3-6 days

0

2

Toro 132-0146

PISTON (to S/N 2277162)

$96.99

$

Usually ships in 3-6 days

0

2

Toro 132-0143

PISTON (from S/N 2531729)

$77.99

$

Usually ships in 3-6 days

0

2

Toro 132-0142

PISTON (from S/N 2277163 to 2531728)

$43.99

$

Usually ships in 3-6 days

0

3

Toro 132-0149

PIN-PISTON (from S/N 4433466)

$10.99

$

Usually ships in 3-6 days

0

3

Toro 132-0152

PIN-PISTON (to S/N 4433465)

$38.99

$

Usually ships in 3-6 days

0

4

Toro 132-0157

ROD ASM-CONNECTING

$108.99

$

Usually ships in 3-6 days

0

5

Toro 132-0573

BOLT-CONNECTING ROD

$14.99

$

Usually ships in 3-6 days

0

6

Toro 132-0636

CLIP-PISTON PIN-13MM

$6.99

$

Usually ships in 3-6 days

0
