02600 - Toro HoverPro 400 Walk-Behind Mower (SN: 312000001 - 312999999) (2012) ENGINE AND DECK ASSEMBLY Parts Diagram

HoverPro 400 Walk-Behind Mower

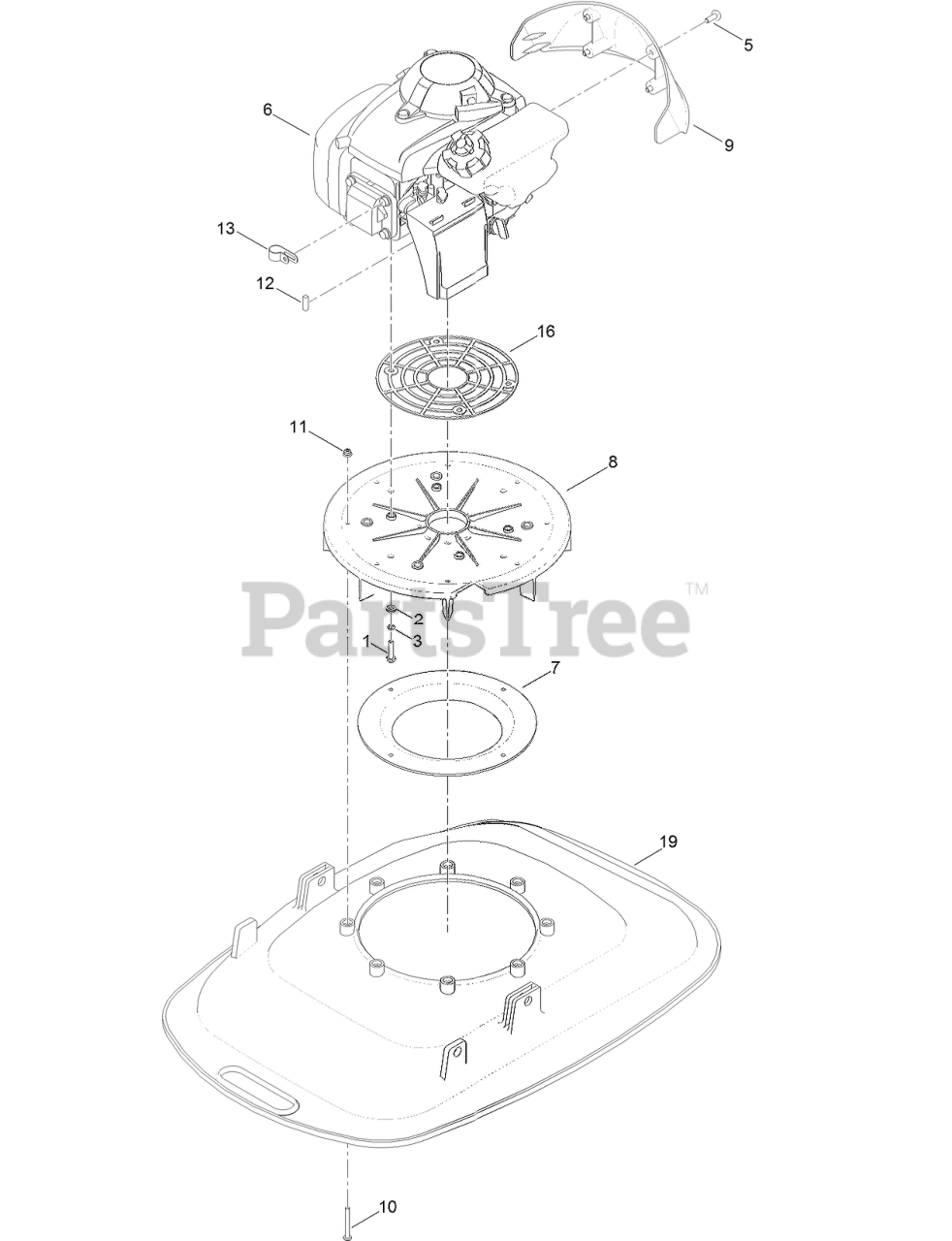

ENGINE AND DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 09364

SCREW-HH

$

$

Not available

2

Toro 09472

WASHER-PLAIN

$

$

Not available

3

Toro 09474

WASHER-SPRING

$

$

Not available

5

Toro 09784

SCREW-SOC, HD

$

$

Currently unavailable

6

Toro 111-1245

ENGINE-HONDA
(Superseded to 111-7161)

$

$

Not available

7

Toro 111-1299

BELL-MOUTH

$

$

Currently unavailable

8

Toro 111-1300

PLATE-ENGINE

$

$

Currently unavailable

9

Toro 111-5480

COVER-SUMP

$

$

Currently unavailable

10

Toro 111-1501

SCREW-PPH

$

$

Currently unavailable

11

Toro 111-1502

NUT-HHF, NY

$

$

Currently unavailable

12

Toro 111-1503

KEY-DRIVE, SQUARE ENDED

$

$

Currently unavailable

13

Toro 111-1792

CLIP-P, NATURAL

$

$

Currently unavailable

16

Toro 111-4675

SINK-HEAT

$

$

Currently unavailable

19

$

$

Not available
