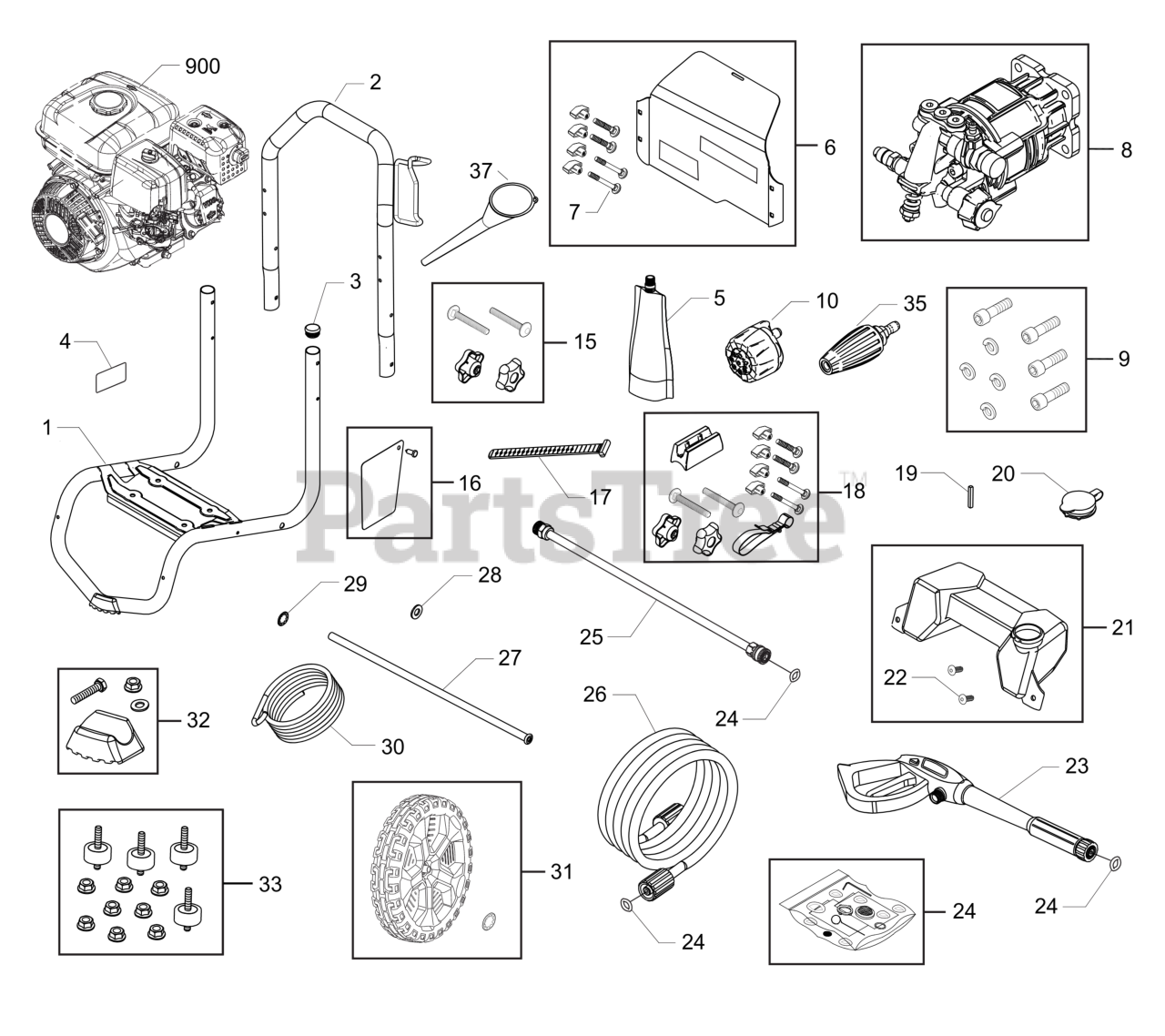

020832-00 - Husqvarna 3,200 PSI Pressure Washer Main Unit Parts Diagram

3,200 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 84006759

BASE

Note: (Includes Item 3)

$

$

Currently unavailable

2

Briggs & Stratton 84006752

HANDLE

$107.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 189332GS

PLUG, Hole

$3.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 705851

DECAL-Warning Spark

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 100005

OIL-4 CYCLE 30W 18OZ.

$8.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 84006750

KIT-BILLBOARD

Note: (Includes Item 7)

$32.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 84006781

KIT-Hardware, Billboard Mounting

$5.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84007448

PUMP

$250.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84006755

MULTI-NOZZLE, QC

$40.99

$

In Stock, Qty 8

0

15

Briggs & Stratton 84001720

KIT-HANDLE

$5.99

$

In Stock, Qty 6

0

16

Briggs & Stratton 84007536

KIT-TAG Warning, English

$

$

Currently unavailable

16

Briggs & Stratton 84007537

KIT-TAG Warning, French

$

$

Currently unavailable

17

Briggs & Stratton 84001717

STRAP

$6.49

$

In Stock, only 2 left!

0

18

Briggs & Stratton 84007538

KIT, Accessory

Note: (Includes Items 7, 15)

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

20

Briggs & Stratton 312369GS

CAP-CHEMICAL TANK

$5.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 84006503

KIT-CHEMICAL TANK

$

$

Not available

22

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84004780

GUN

$67.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 705001

O-RING, 0.706 ID X 0.097

$18.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 706595

EXTENSION

$47.99

$

In Stock, Qty 11

0

26

Briggs & Stratton 84006753

HOSE ASSEMBLY

$59.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 84006751

AXLE

$15.99

$

In Stock, only 3 left!

0

28

Briggs & Stratton 22304GS

Washer, Flat 1/2

$3.49

$

In Stock, Qty 20+

0

29

Briggs & Stratton 315543GS

PUSHNUT

$3.99

$

In Stock, Qty 20+

0

30

Briggs & Stratton 705076

HOSE-CHEMICAL

$12.99

$

In Stock, only 1 left!

0

31

Briggs & Stratton 84006363

WHEEL

Note: (Includes Item 29)

$28.99

$

In Stock, Qty 7

0

32

Briggs & Stratton 84006505

KIT-MOUNT, VIBRATION

$10.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 84007449

NOZZLE, Turbo

$55.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 707650

FUNNEL

$13.99

$

Usually ships in 2-12 days

0

900

ENGINE, 208CC, BLACK RECOIL

Note: (Not Serviced as a Complete Assembly. Refer to 80098013 Component Groups)

$

$

Not available

--

Briggs & Stratton 6039

PUMP Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6059

PERFECT MIX MULTI-PURPOSE WASH

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 6060

PERFECT MIX CONCRETE BRICK & TILE CLEANER

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
