020548-00 - Craftsman 3,300 PSI Pressure Washer Main Unit (319290) Parts Diagram

3,300 PSI Pressure Washer

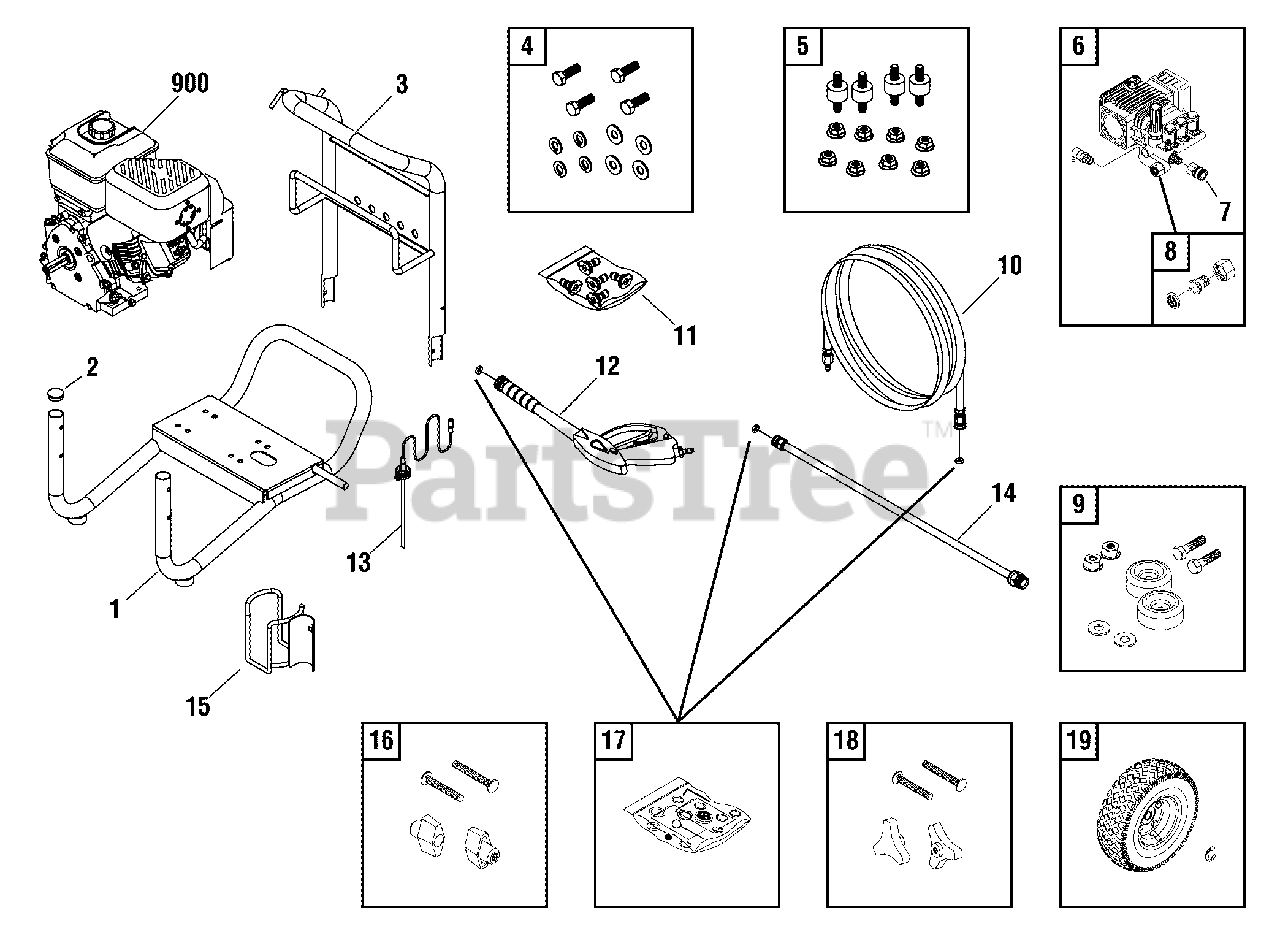

Main Unit (319290) Parts Diagram

  • Title

1

Briggs & Stratton 319887GS

BASE

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 189332GS

PLUG

$3.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 315381ZGS

HANDLE

$254.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 202771GS

KIT-HARDWARE PUMP MOUNTING

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192134GS

KIT-VIBRATION MOUNT

$29.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 319888GS

PUMP

$651.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 95458GS

ADAPTER
(Superseded to 703824)

$

$

Not available

8

Briggs & Stratton 199310GS

ADAPTER-GARDEN HOSE

$12.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 192310GS

MOUNT-VIBRATION

$9.99

$

In Stock, Qty 6

0

10

Briggs & Stratton 205695GS

HOSE

$112.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 208324GS

KIT-QC NOZZLES

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983NGS

NOZZLE-QC RED

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983PGS

NOZZLE-QC YELLOW

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983QGS

NOZZLE-QC GREEN

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983RGS

NOZZLE-QC WHITE

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE-QC BLACK

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 199956GS

GUN
(Superseded to 704311)

$115.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 204658GS

HOSE-CHEMICAL

$30.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 207785GS

EXTENSION-QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 206566GS

WELDMENT

$27.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2203GS

KIT-HARDWARE HANDLE

$5.49

$

In Stock, only 1 left!

0

17

Briggs & Stratton 196002GS

O-RINGS
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 203040GS

KIT-HARDWARE HANDLE

$6.99

$

In Stock, Qty 11

0

19

Briggs & Stratton 311470GS

KIT-WHEEL

$65.99

$

In Stock, Qty 10

0

--

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 12

0

900

Briggs & Stratton 15T212-0111-F8

* ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 319227GS

MANUAL-OPERATOR

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 191267ABGS

AXLE

Note: (Not Illustrated)

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139DGS

KEY

Note: (Not Illustrated)

$4.49

$

In Stock, only 1 left!

0

--

Briggs & Stratton 30809GS

GROMMET

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317999GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 208538GS

DECAL-Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310975GS

HOSE-CHEMICAL
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 194256GS

TAG-WARNING
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 75187

Garden Hose Quick Connect

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75197

Accessory Quick Connect

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75134

50' Replacement Hose

Note: (Optional Accessory)

$155.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 75116

O Ring Repair Kit
(Superseded to 7075115YP)

Note: (Optional Accessory)

$9.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 75129

Turbo Nozzle

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75121

25' Extension Hose
(Superseded to 7075121YP)

Note: (Optional Accessory)

$40.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 74403

Pump Saver

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74404

PerfectMix™ Multi-Purpose & Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74405

PerfectMix™ Degreaser Cleaner
(Superseded to 7074405YP)

Note: (Optional Accessory)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 74406

PerfectMix™ Mold & Mildew Cleaner
(Superseded to 7074406YP)

Note: (Optional Accessory)

$37.99

$

In Stock, only 1 left!

0
