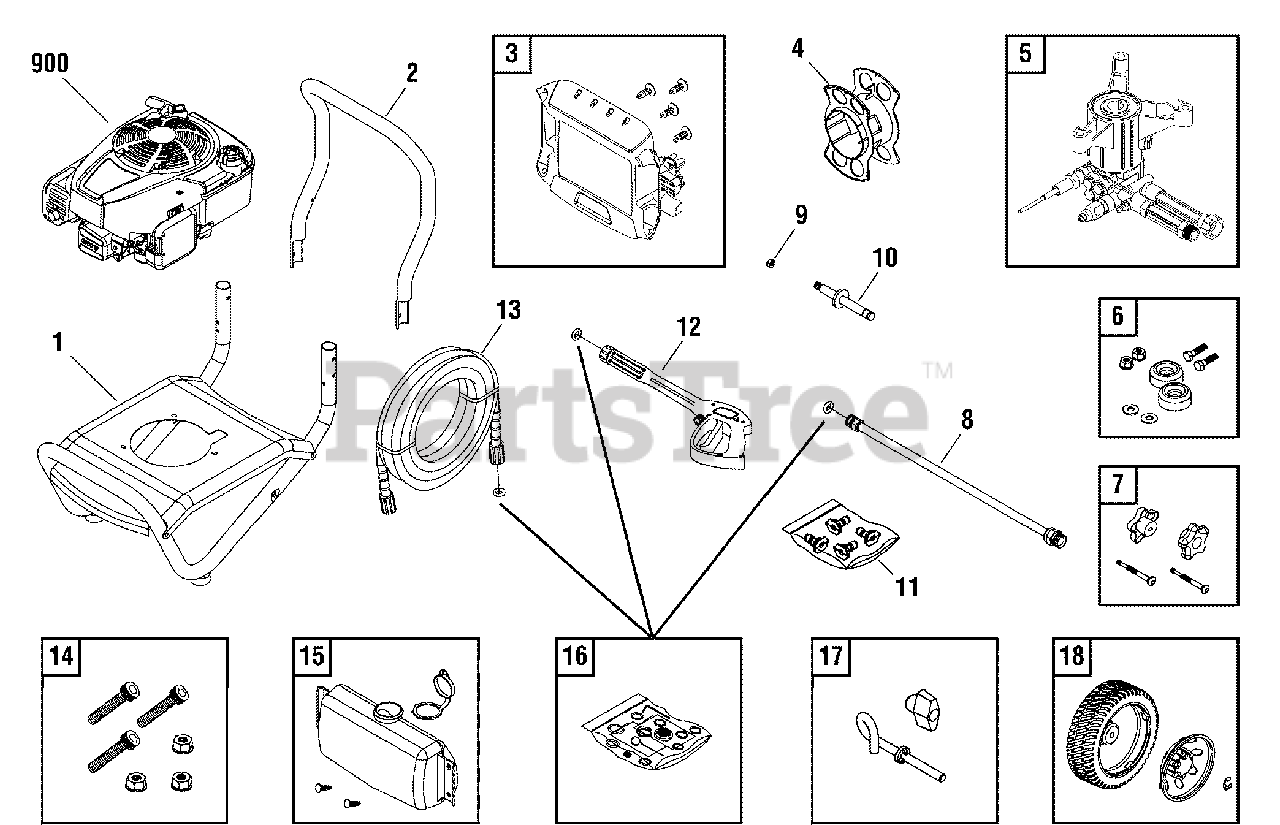

020539-01 - Briggs & Stratton 2,900 PSI Pressure Washer Main Unit (80013151) Parts Diagram

2,900 PSI Pressure Washer

Main Unit (80013151) Parts Diagram

  • Title

1

Briggs & Stratton 318236GS

BASE

$285.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 204257BSGS

HANDLE

$142.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 318081GS

BILLBOARD

$110.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 204684GS

WRAP, Hose

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 317593GS

PUMP

$316.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 7

0

7

Briggs & Stratton 205910GS

KIT, Hardware, Handle

$22.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 706595

EXTENSION, QC

$47.99

$

In Stock, Qty 11

0

9

Briggs & Stratton 703347

NUT

$4.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 315134GS

AXLE

$28.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 314075GS

KIT-QC NOZZLES

$37.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 319853GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 202017GS

HOSE

$

$

Not available

14

Briggs & Stratton 315139GS

KIT, Hardware, Pump Mounting

$9.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 205369GS

TANK, Chemical

$67.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310333GS

KIT, Valve

$10.99

$

In Stock, Qty 6

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B3222EGS

CAP, Chemical Tank

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 705001

KIT, O-Rings

$18.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 205912GS

GUIDE, Rope

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 209568GS

KIT, Wheel
(Superseded to 203083GS)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 703976

E-RING

$4.49

$

In Stock, Qty 9

0

900

Briggs & Stratton 122S02-0153-H1

* ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 208538GS

DECAL, Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 189332GS

PLUG, Hole

Note: (Not Illustrated)

$3.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 95456GS

QUICK CONNECT
(Superseded to 7175187GS)

Note: (Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 705850

HOSE, Chemical

Note: (Not Illustrated)

$5.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 705854

TAG, Warning

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
