020505-02 - Briggs & Stratton 3,400 PSI Pressure Washer Main Unit (316413) Parts Diagram

3,400 PSI Pressure Washer

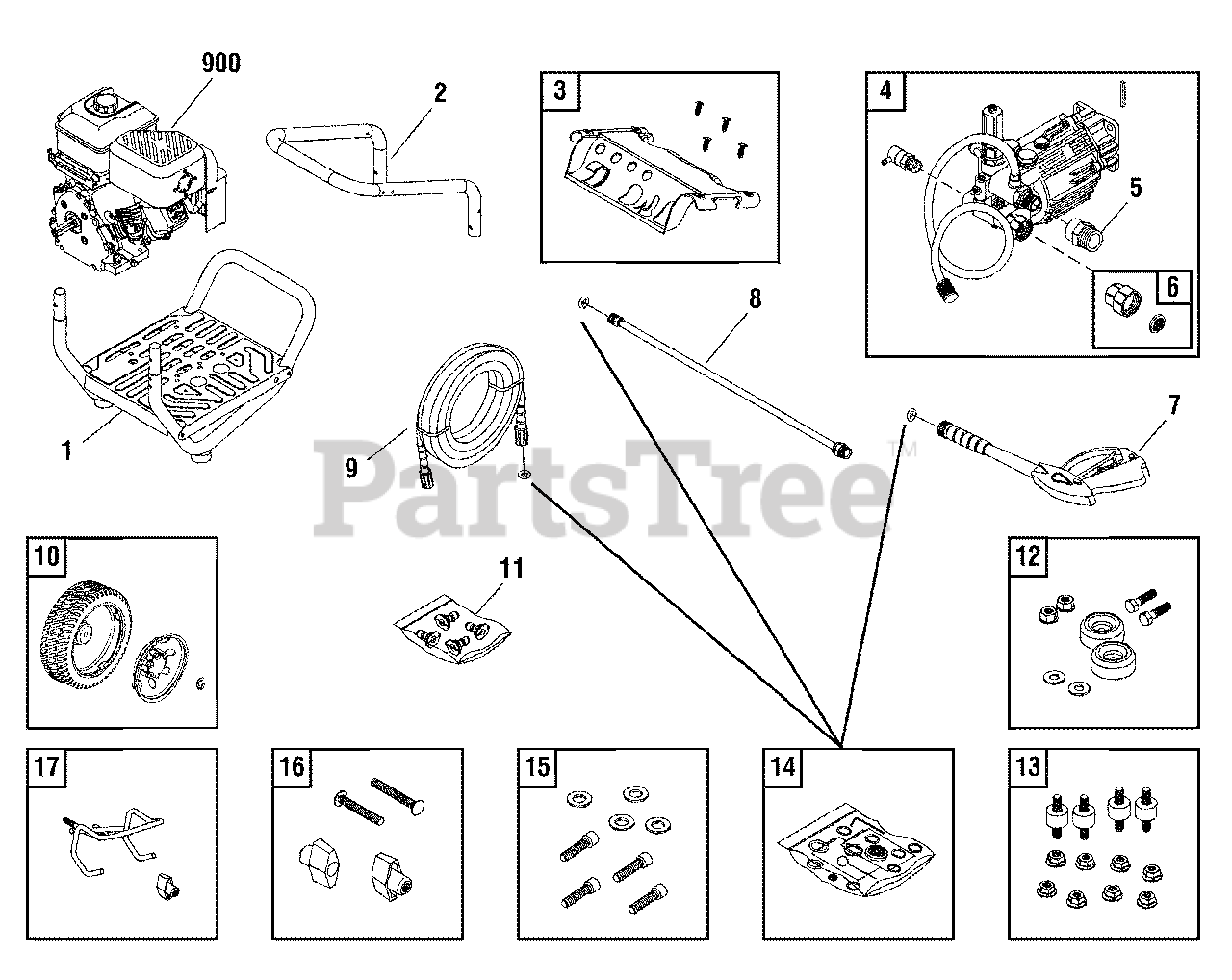

Main Unit (316413) Parts Diagram

  • Title

1

Briggs & Stratton 314587GS

BASE

$296.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201499BRGS

HANDLE

$98.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316210GS

BILLBOARD

$71.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 202005GS

PUMP

$719.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

5

Briggs & Stratton 95457GS

ADAPTER

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 194004GS

CONNECTOR, Garden Hose

$

$

Not available

7

Briggs & Stratton 704312

GUN

$93.99

$

In Stock, Qty 7

0

8

Briggs & Stratton 207785GS

EXTENSION, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 209283GS

HOSE

$106.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 203083GS

KIT, Wheel

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 703977

E-RING

$4.99

$

In Stock, Qty 14

0

11

Briggs & Stratton 314075GS

KIT, QC Nozzles

$37.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192553GS

MOUNT, Vibration

$16.99

$

In Stock, Qty 7

0

13

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 705001

KIT, O-Ring

$18.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 1 left!

0

17

Briggs & Stratton 201661GS

WIREFORM

$36.99

$

Usually ships in 2-12 days

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton A1040DGS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 199272GS

OIL
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 201314GS

AXLE

Note: (Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 695755

KNOB, Throttle

Note: (Not Illustrated)

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 707165

TAG, Warning

Note: (Not Illustrated)

$9.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
