020504-01 - Briggs & Stratton 3,000 PSI Pressure Washer Main Unit (316414) Parts Diagram

3,000 PSI Pressure Washer

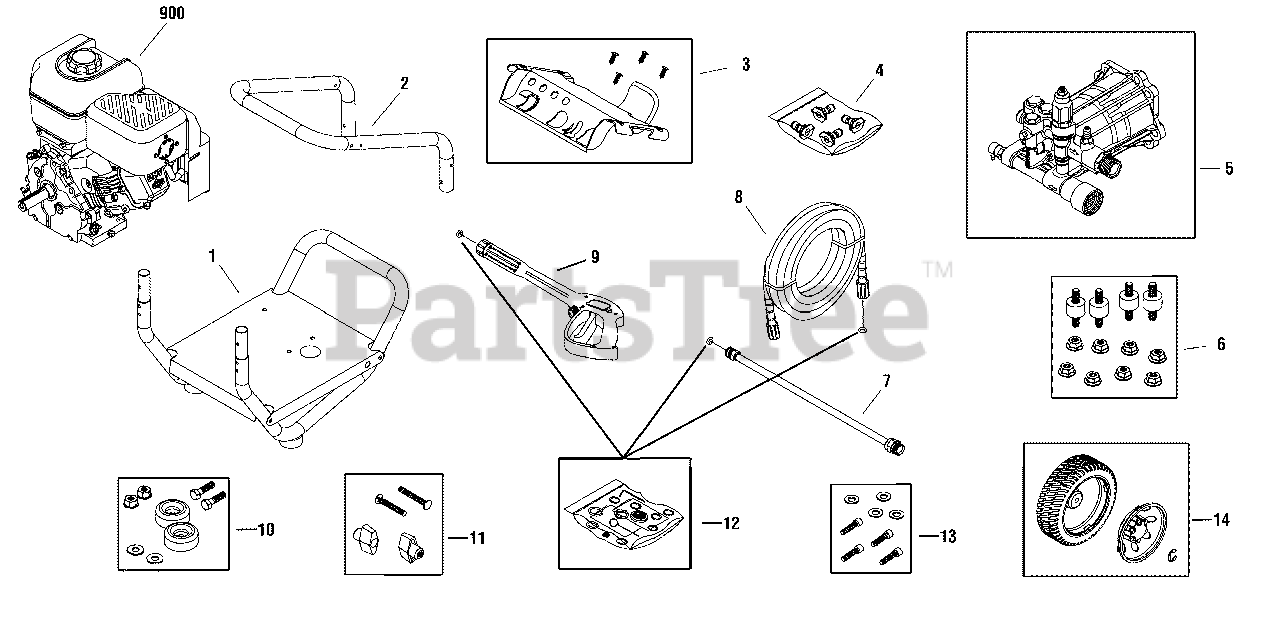

Main Unit (316414) Parts Diagram

  • Title

1

Briggs & Stratton 314587GS

BASE

$296.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 201499BRGS

HANDLE

$98.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316215GS

BILLBOARD

$84.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 314075GS

KIT, QC Nozzle

$37.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 318112GS

PUMP

$551.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 706595

EXTENSION

$47.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 319853GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192553GS

MOUNT, Vibration

$16.99

$

In Stock, Qty 7

0

11

Briggs & Stratton B2203GS

KIT, Hardware Handle

$5.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 196002GS

KIT, O-Ring
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 192131GS

KIT, Hardware Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 203083GS

KIT, Wheel

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 703976

E-RING

$4.49

$

In Stock, Qty 10

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 208538GS

DECAL,Spark
(Superseded to 705920)

Note: (Part Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139DGS

KEY

Note: (Part Not Illustrated)

$4.49

$

In Stock, only 1 left!

0

--

Briggs & Stratton 705076

HOSE, Chemical

Note: (Part Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 201314GS

AXLE

Note: (Part Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 199272GS

OIL
(Superseded to 100005WEB)

Note: (Part Not Illustrated)

$

$

Not available

--

Briggs & Stratton 695755

KNOB, Throttle

Note: (Part Not Illustrated)

$11.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 707165

TAG, Warning

Note: (Part Not Illustrated)

$9.49

$

Usually ships in 2-12 days

0
