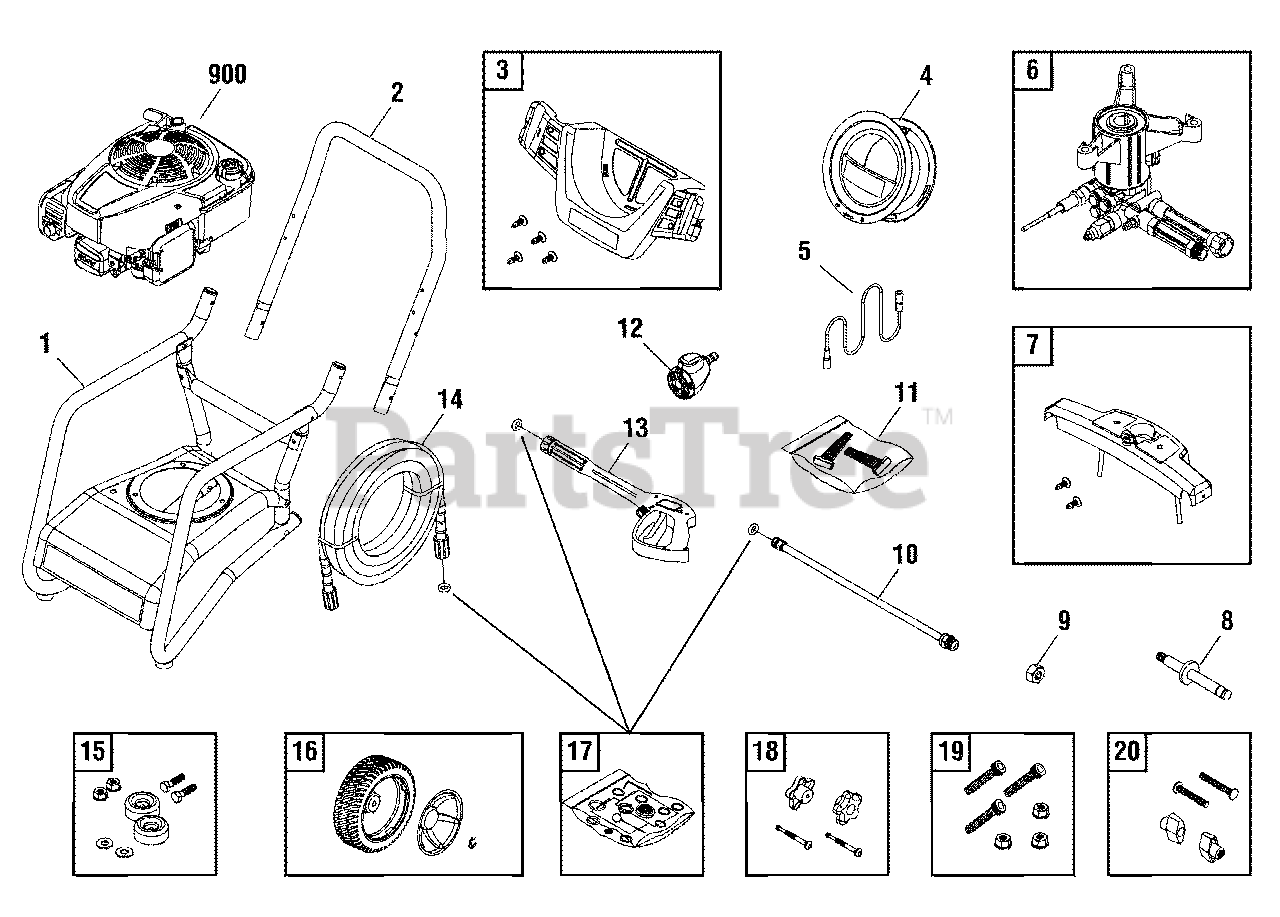

020496-00 - Craftsman 2,700 PSI Pressure Washer Main Unit (316077) Parts Diagram

2,700 PSI Pressure Washer

Main Unit (316077) Parts Diagram

  • Title

1

Briggs & Stratton 317152GS

BASE
(Superseded to 319974GS)

$209.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 314931ZGS

HANDLE

$79.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 315850GS

BILLBOARD

$55.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIP

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 315859GS

HOSE REEL

$37.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 316031GS

HOSE

$17.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 314441GS

PUMP

$322.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 316006GS

BRACKET

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315087GS

T-VALVE

$25.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315084GS

KNOB

$30.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 315922GS

HOSE

$29.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIP

$4.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 315134GS

AXLE

$28.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 7091585SM

NUT
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 207784GS

EXTENSION-QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

11

Briggs & Stratton 317099GS

KIT-STRAP

$8.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 314509GS

NOZZLE-QC

$

$

Not available

13

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202017GS

HOSE

$

$

Not available

15

Briggs & Stratton 192310GS

MOUNT-VIBRATION

$9.99

$

In Stock, Qty 9

0

16

Briggs & Stratton 202978GS

KIT-WHEEL

$40.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 196002GS

KIT-0-RING
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 205910GS

KIT-HANDLE

$22.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 315139GS

KIT-HARDWARE PUMP MOUNTING

$9.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton B2203GS

KIT-HANDLE

$5.49

$

In Stock, only 1 left!

0

900

Briggs & Stratton 112P02-0117-F2

* ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 316055GS

MANUAL-OPERATOR

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

Note: (Not Illustrated)

$4.49

$

In Stock, Qty 9

0

--

Briggs & Stratton AB3061BGS

OIL

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 189332GS

PLUG-HOLE

Note: (Not Illustrated)

$3.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 310975GS

HOSE-CHEMICAL
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 194256GS

TAG-WARNING
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 75187

Garden Hose Quick Connect

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75197

Accessory Quick Connect

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75138

Dual Action Brush Kit

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75122

30' Replacement Hose

Note: (Optional Accessory)

$

$

Not available

--

Briggs & Stratton 75116

O Ring Repair Kit
(Superseded to 7075115YP)

Note: (Optional Accessory)

$10.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 75129

Turbo Nozzle

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75121

25' Extension Hose
(Superseded to 7075121YP)

Note: (Optional Accessory)

$40.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 75247

Surface Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74403

Pump Saver

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 33386

CARTRIDGE, Fresh Start

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 75180

Detergent Siphon Hose & Filter

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74404

PerfectMix™ Multi-Purpose & Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 74405

PerfectMix™ Degreaser Cleaner
(Superseded to 7074405YP)

Note: (Optional Accessory)

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 74406

PerfectMix™ Mold & Mildew Cleaner
(Superseded to 7074406YP)

Note: (Optional Accessory)

$37.99

$

In Stock, only 1 left!

0
