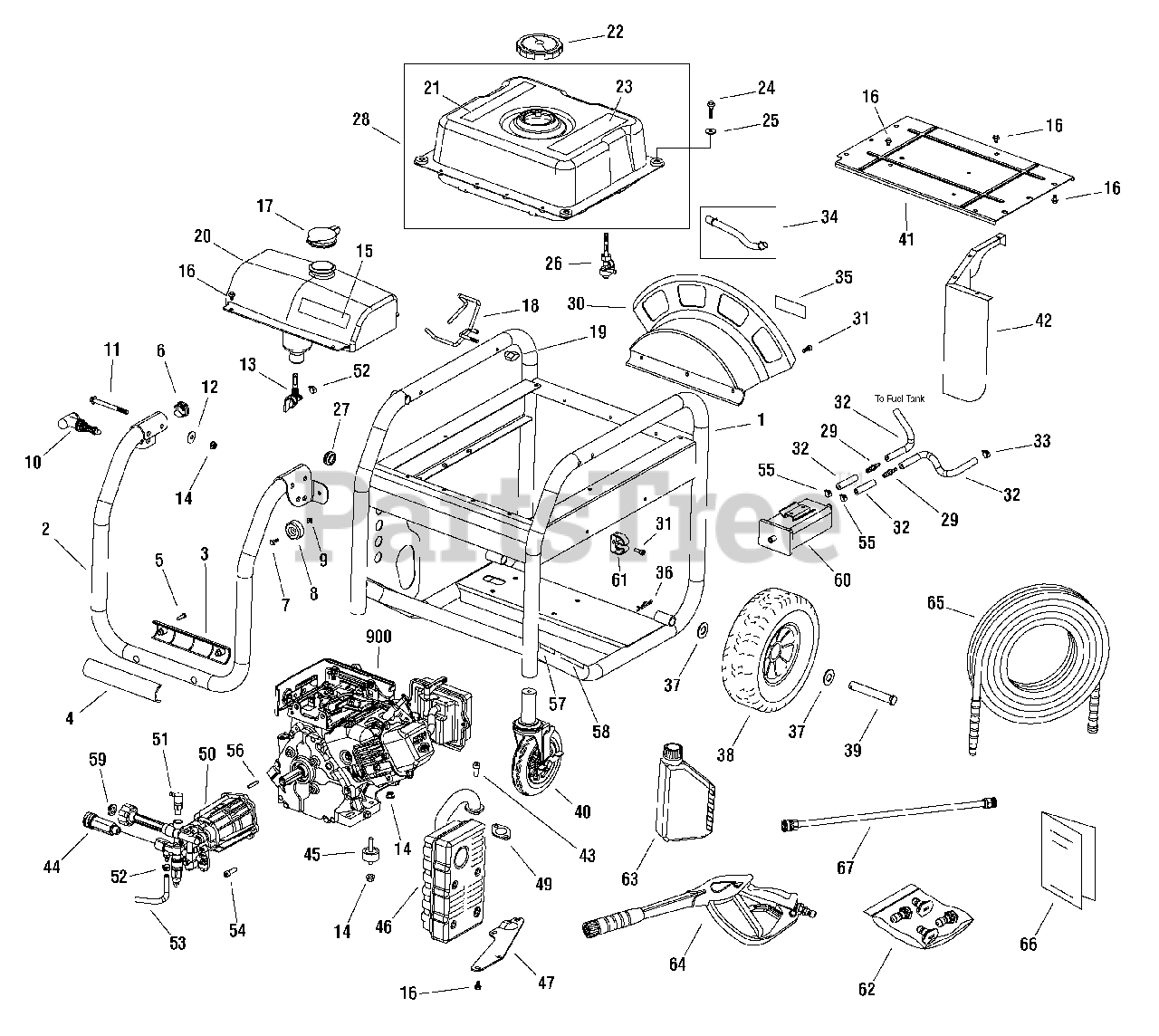

020490-01 - Husqvarna 3,100 PSI Pressure Washer Main Unit (316332) Parts Diagram

3,100 PSI Pressure Washer

Main Unit (316332) Parts Diagram

  • Title

1

Briggs & Stratton 316434GS

BASE

$1024.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313252GS

HANDLE

$103.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316502GS

GRIP, Handle

$7.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 316501GS

GRIP, Handle

$7.49

$

Usually ships in 2-12 days

0

5

-----

* SCREW, M5-0.8 x 20

$

$

Not available

6

Briggs & Stratton 316712GS

CAP, Plug

$5.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 706865

SCREW, M6 x 18

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 316713GS

MOUNT, Vibration

$12.99

$

Usually ships in 2-12 days

0

9

-----

* NUT, M6 1.0

$

$

Not available

10

Briggs & Stratton 316732GS

T-KNOB

$11.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 316508GS

SCREW

$2.49

$

In Stock, only 1 left!

0

12

Briggs & Stratton 706926

WASHER

$3.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 317106GS

VALVE, Chemical Tank

$

$

Not available

14

-----

* NUT, Flange, M8

$

$

Not available

15

Briggs & Stratton 316726GS

DECAL

$9.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 706152

SCREW, M6 x 12

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 317542GS

CAP, Chemical Tank

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 316500GS

WIREFORM

$27.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 194289GS

KNOB

$7.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 316342GS

TANK, Chemical

$

$

Not available

21

Briggs & Stratton 316936GS

DECAL

$7.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 316670GS

CAP, Fuel

$34.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 316778GS

DECAL

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 706866

SCREW

$5.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 312005GS

WASHER

$3.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 209417GS

VALVE, Fuel

$8.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 706895

GROMMET

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 319972GS

TANK, Fuel

$177.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 317025GS

BARB, Hose

$8.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 316374GS

WRAP, Hose

$

$

Not available

31

Briggs & Stratton 318992GS

SCREW

$4.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 315017GS

HOSE, Vapor (cut to fit)

$28.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 48031JGS

CLAMP

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 791745

KIT, Fuel Hose (cut to fit)

$10.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 197798GS

DECAL

$9.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 5025210YP

PIN, Hair

$3.99

$

In Stock, Qty 20+

0

37

-----

* WASHER, Flat, 5/8"

$

$

Not available

38

Briggs & Stratton 316406GS

WHEEL

$99.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 317577GS

AXLE

$23.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 316405GS

WHEEL, Caster

$

$

Not available

41

Briggs & Stratton 317058GS

HEATSHIELD

$91.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 316505GS

HEATSHIELD

$85.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 706921

KIT-HARDWARE MUFFLER

$5.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 703825

FITTING

$

$

Not available

45

Briggs & Stratton 21217GS

MOUNT, Vibration

$7.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 188301GS

MUFFLER

$152.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 191785GS

BRACKET, Muffler

$16.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 798516

GASKET

$4.99

$

In Stock, only 2 left!

0

50

Briggs & Stratton 317604GS

PUMP

$481.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 48031GGS

CLAMP

$3.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton A1040DGS

HOSE, Chemical
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 23707GS

SCREW

$3.99

$

In Stock, only 1 left!

0

55

Briggs & Stratton 204024GS

CLAMP

$

$

Currently unavailable

56

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

57

Briggs & Stratton 208538GS

DECAL
(Superseded to 705920)

$33.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 316727GS

DECAL

$9.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, Qty 15

0

60

Briggs & Stratton 316783GS

CARBON CANISTER

$74.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 316503GS

CLIP

$9.49

$

In Stock, only 1 left!

0

62

Briggs & Stratton 314075GS

KIT, Nozzle

$37.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 316768GS

OIL BOTTLE

$

$

Currently unavailable

64

Briggs & Stratton 316157GS

GUN
(Superseded to 704622)

$117.99

$

In Stock, only 4 left!

0

65

Briggs & Stratton 316465GS

HOSE

$195.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 316330GS

MANUAL, Operator

$13.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 200595GS

EXTENSION
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

900

-----

** ENGINE

$

$

Not available

--

Briggs & Stratton 316782GS

WRENCH, Allen

Note: (Not Illustrated)

$6.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 317365GS

OIL FUNNEL

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 705001

KIT-O RING

Note: (Optional Accessory - Not Included)

$18.99

$

In Stock, Qty 20+

0
