020463-0 - Diamond 3,800 PSI Pressure Washer Main Unit (313728) Parts Diagram

3,800 PSI Pressure Washer

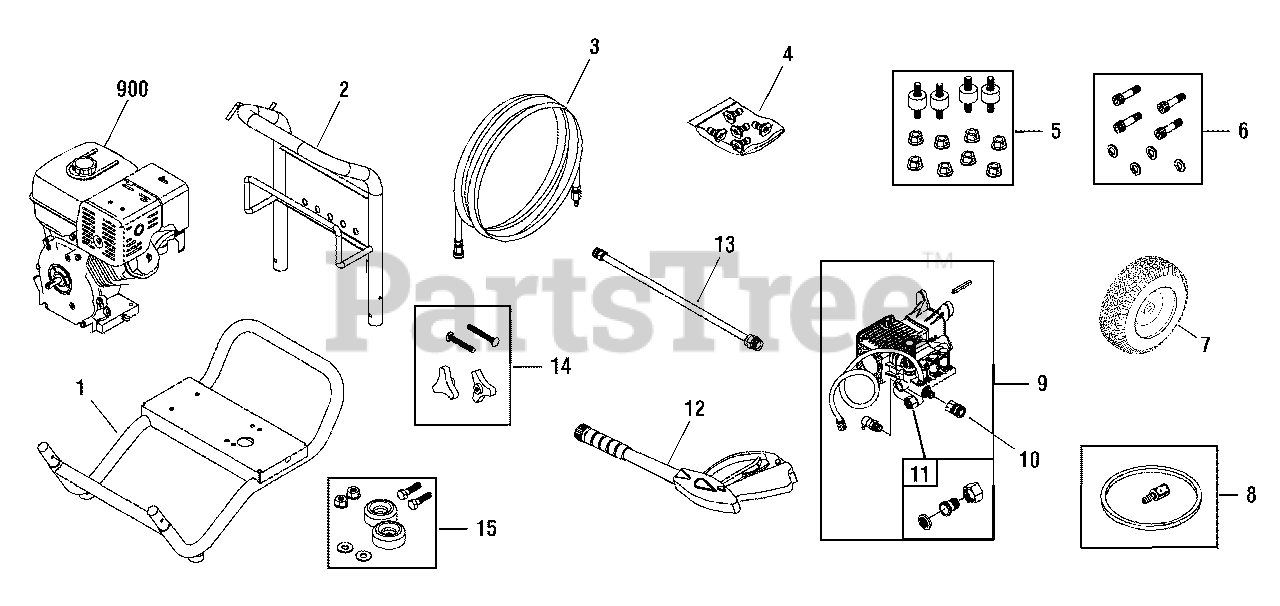

Main Unit (313728) Parts Diagram

  • Title

1

Briggs & Stratton 313328GS

BASE

$378.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 313192BTGS

HANDLE

$186.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205734GS

HOSE

$

$

Not available

4

Briggs & Stratton 196233GS

KIT, QC Nozzles
(Superseded to 207491GS)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983BGS

NOZZLE, QC Yellow

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983CGS

NOZZLE, QC Green

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983DGS

NOZZLE, QC White

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195846ZZGS

NOZZLE, QC Black

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 195294GS

KIT, Hardware, Engine Mounting

$23.99

$

In Stock, Qty 11

0

6

Briggs & Stratton 192132GS

KIT, Hardware, Pump Mounting

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 312774GS

WHEEL

$79.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 189971GS

HOSE, Chemical

$

$

Not available

9

Briggs & Stratton 203046GS

PUMP
(Superseded to 318207GS)

$731.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 63281GS

KEY
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 95458GS

FITTING
(Superseded to 703824)

$

$

Not available

11

Briggs & Stratton 199310GS

ADAPTER, Garden Hose

$12.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 199956GS

GUN
(Superseded to 704311)

$115.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 207785GS

EXTENSION, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 203040GS

KIT, Hardware, Handle

$6.99

$

In Stock, Qty 11

0

15

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 11

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 313724GS

MANUAL, Operator

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191267RGS

AXLE

Note: (Not Illustrated)

$44.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

Note: (Not Illustrated)

$4.99

$

In Stock, Qty 15

0

--

Briggs & Stratton 30809GS

GROMMET

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE (Qty 2 Required)
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 208538GS

DECAL, Warning
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 209697GS

DECAL, Max PSI

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 313719GS

DECAL, Unit

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 196002GS

KIT, O-Rings
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0
