020451-0 - Briggs & Stratton 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

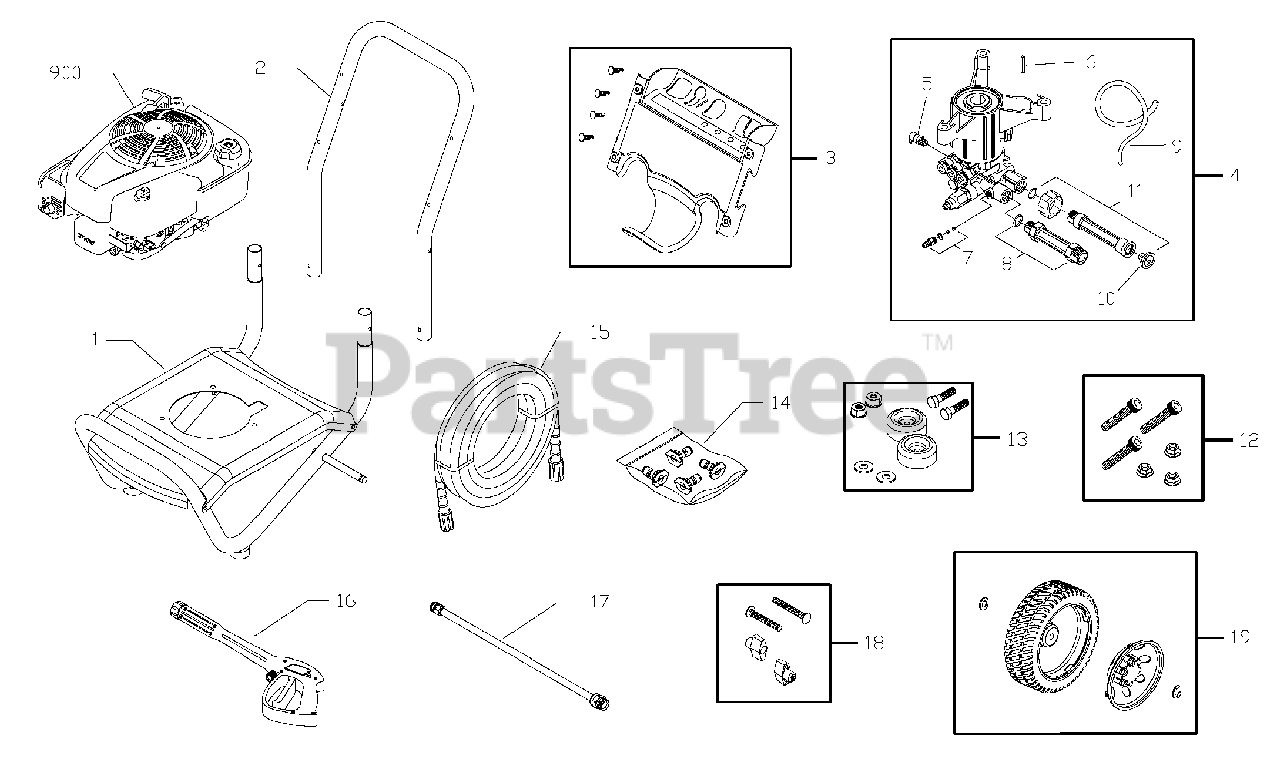

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 312028GS

BASE

Note: (Includes following item)

$

$

Not available

--

Briggs & Stratton 205413GS

AXLE
(Superseded to 312393GS)

$

$

Not available

2

Briggs & Stratton 199110BRGS

HANDLE

$76.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312181GS

BILLBOARD

Note: (Includes following item)

$95.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 209261GS

PUMP
(Superseded to 317055GS)

Note: (Includes Ref. Nos. 5, 6, 7, 8, 9, 10 & 11)

$338.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192914GS

KIT, Chemical Injection

$24.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 201497GS

FITTING

$28.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

$12.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, Qty 15

0

11

Briggs & Stratton 201496GS

KIT, Water Inlet

$46.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 200199GS

KIT, Hardware, Pump Mounting

$6.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 11

0

14

Briggs & Stratton 208583GS

KIT, QC Nozzles

Note: (Includes following 4 items)

$24.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983PGS

NOZZLE, QC Yellow

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983ANGS

NOZZLE, QC Red

$9.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

18

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 1 left!

0

19

Briggs & Stratton 209568GS

KIT, Wheel
(Superseded to 203083GS)

Note: (Includes following 2 items)

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 312186GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 312180GS

DECAL, Shroud

Note: (Not Illustrated)

$15.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6048

O-RING MAINTENANCE
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
