020437-1 - Craftsman 3,100 PSI Pressure Washer Main Unit (314135) Parts Diagram

3,100 PSI Pressure Washer

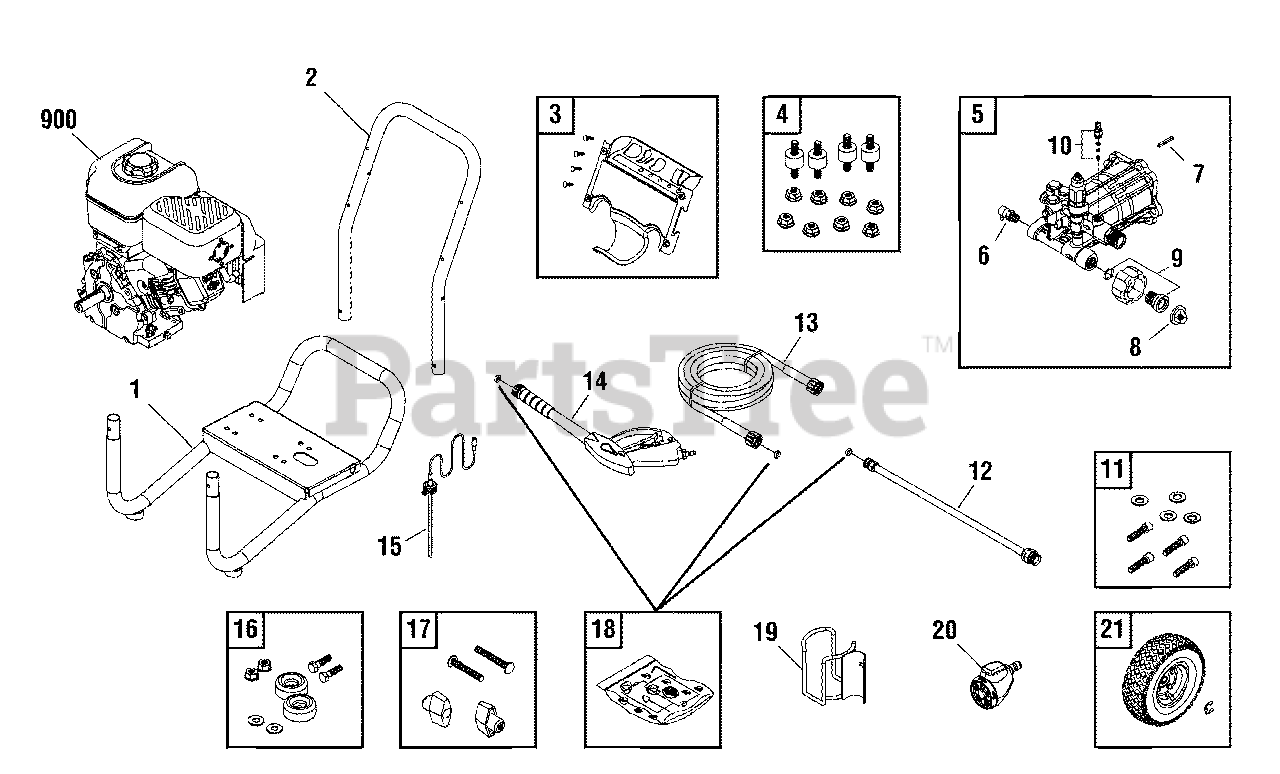

Main Unit (314135) Parts Diagram

  • Title

1

Briggs & Stratton 314195GS

BASE

$

$

Currently unavailable

2

Briggs & Stratton 199110BTGS

HANDLE

$79.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 311843GS

BILLBOARD

$84.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 203901GS

PUMP
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, Qty 15

0

9

Briggs & Stratton 204085GS

KIT, Water Inlet

$65.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 192914GS

KIT, Chemical Injection

$24.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 192131GS

KTI, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

13

Briggs & Stratton 209283GS

HOSE

$106.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

15

Briggs & Stratton 204658GS

HOSE

$30.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 9

0

17

Briggs & Stratton B2203GS

KTI, Hardware, Handle

$5.49

$

In Stock, only 1 left!

0

18

Briggs & Stratton 196002GS

KIT, O-Ring
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 206566GS

WELDMENT

$27.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 209093GS

NOZZLE, QC
(Superseded to 314509GS)

$

$

Not available

21

Briggs & Stratton 311470GS

KIT, Wheel

$65.99

$

In Stock, Qty 10

0

--

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

900

Briggs & Stratton 121012-0122-B8

* ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 313997GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 191267ABGS

AXLE

Note: (Not Illustrated)

$22.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 695755

KNOB, Throttle

Note: (Not Illustrated)

$11.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 311177GS

DECAL, Engine

Note: (Not Illustrated)

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311240GS

DECAL-Air Cleaner

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 276928

DECAL-Recoil

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 194256GS

TAG-WARNING
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187

GARDEN HOSE QUICK CONNECT
(Superseded to 7175187GS)

Note: (Optional Accessory)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

ACCESSORY QUICK CONNECT
(Superseded to 312981GS)

Note: (Optional Accessory)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124

ROTATING BRUSH KIT

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175122

30' REPLACEMENT HOSE

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-RING REPAIR KIT
(Superseded to 196002GS)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7175129

TURBO NOZZLE

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7175121

25' EXTENSION HOSE

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174402

HOSE REEL
(Superseded to 192648GS)

Note: (Optional Accessory)

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403

PUMP SAVER

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7133386

CARTRIDGE, Fresh Start

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174404

Project Pro® PerfectMix™ Multi-Purpose & Vehicle Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174405

Project Pro® PerfectMix™ Concrete, Brick & Tile Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7174406

Project Pro® PerfectMix™ Mold and Mildew Cleaner

Note: (Optional Accessory)

$

$

Currently unavailable
