020422-1 - Troy-Bilt 2,700 PSI Pressure Washer Main Unit (314216) Parts Diagram

2,700 PSI Pressure Washer

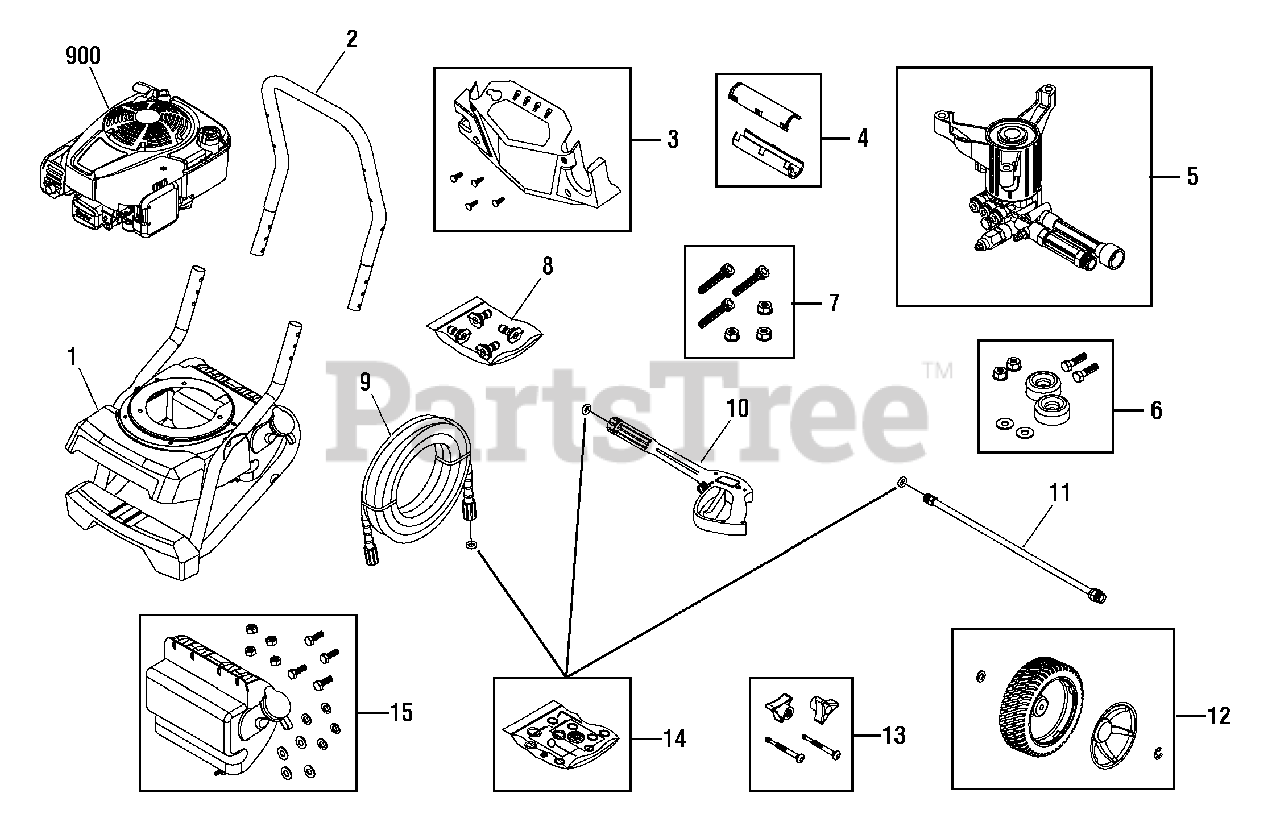

Main Unit (314216) Parts Diagram

  • Title

1

Briggs & Stratton 311970GS

BASE

$317.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 310629BVGS

HANDLE

$127.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 310790GS

BILLBOARD

$84.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

KIT, Tree Clips

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 311969GS

GRIP

$18.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 311966GS

PUMP

$315.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 11

0

7

Briggs & Stratton 203526GS

KIT, Hardware, Pump Mounting

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 314075GS

KIT, QC Nozzles

$37.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983TGS

NOZZLE, QC Yellow

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983AAGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

12

Briggs & Stratton 202477GS

KIT, Wheel

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200519GS

HUBCAP

$19.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

13

Briggs & Stratton 311896GS

KIT, Hardware, Handle

$22.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 196002GS

KIT, O-Rings
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 310800GS

TANK, Chemical
(Superseded to 704228)

$70.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310804GS

CAP, Chemical Tank
(Superseded to 312369GS)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310333GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 6

0

900

§

* ENGINE

$

$

Not available

--

Briggs & Stratton 314085GS

MANUAL, Operators

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199272GS

OIL BOTTLE
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton A1040JGS

HOSE, Chemical

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 310788GS

DECAL, Unit

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310789GS

DECAL, Shroud

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 208538GS

DECAL, Spark
(Superseded to 705920)

Note: (Not Illustrated)

$33.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201314GS

AXLE

Note: (Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
