020422-0 - Troy-Bilt 2,700 PSI Pressure Washer Main Unit (311271) Parts Diagram

2,700 PSI Pressure Washer

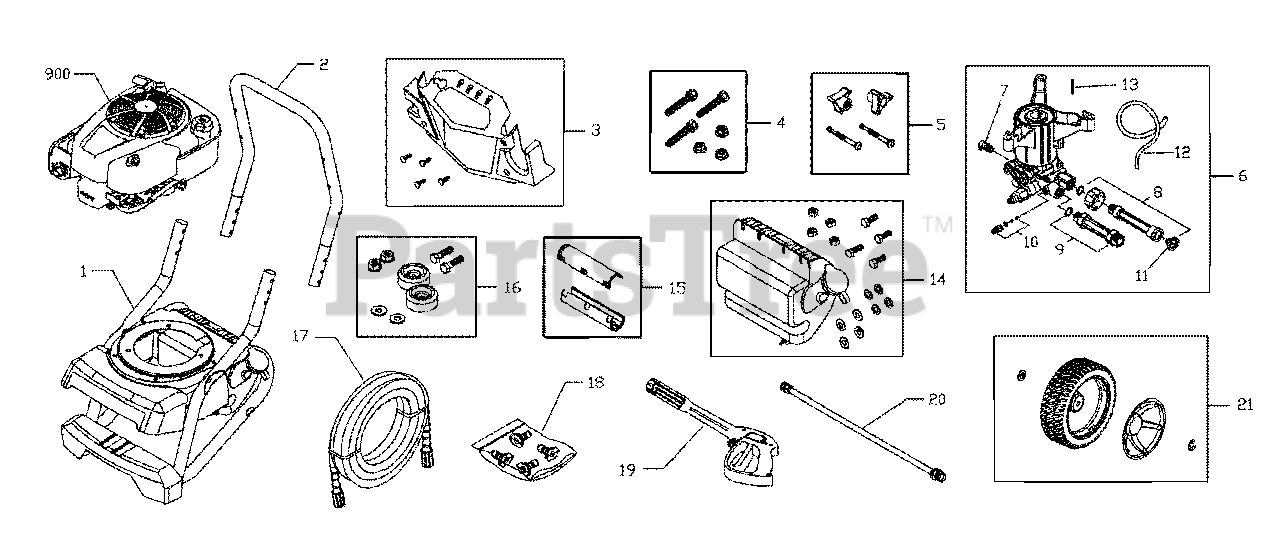

Main Unit (311271) Parts Diagram

  • Title

1

Briggs & Stratton 311970GS

BASE

$317.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 310629BVGS

HANDLE

$127.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 310790GS

BILLBOARD

$84.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

KIT-TREE CLIPS

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 203526GS

KIT-HARDWARE PUMP MOUNTING

$5.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 311896GS

KIT-HARDWARE HANDLE

$22.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 311966GS

PUMP

$315.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 208673GS

VALVE-THERMAL RELIEF

$14.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 201496GS

KIT-WATER INLET

$46.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 201497GS

FITTING

$28.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 192914GS

KIT-CHEM INJ

$24.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton B2384GS

FILTER-GARDEN HOSE

$4.49

$

In Stock, Qty 18

0

12

Briggs & Stratton 189971GS

HOSE-CHEMICAL

$

$

Not available

13

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 310800GS

TANK-CHEMICAL
(Superseded to 704228)

$70.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310804GS

CAP-CHEMICAL TANK
(Superseded to 312369GS)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310333GS

KIT-FUEL VALVE

$10.99

$

In Stock, Qty 6

0

15

Briggs & Stratton 311969GS

GRIP

$18.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 192310GS

MOUNT-VIBRATION

$9.99

$

In Stock, Qty 11

0

17

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 208041GS

KIT-QC NOZZLES

$32.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AKGS

NOZZLE-QC YELLOW

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AMGS

NOZZLE-QC WHITE

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AJGS

NOZZLE-QC RED

$9.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 198841GS

NOZZLE-QC BLACK

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 200595GS

EXTENSION-QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

21

Briggs & Stratton 202477GS

KIT-WHEEL

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200519GS

HUBCAP

$19.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 310795GS

MANUAL-OPERATOR’S

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 310788GS

DECAL-Unit

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310789GS

DECAL-Shroud

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203874GS

AXLE
(Superseded to 201314GS)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 194256GS

TAG-WARNING
(Superseded to 705752)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6048

O-RING MAINTENANCE
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0
