020416-0 - Troy-Bilt 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

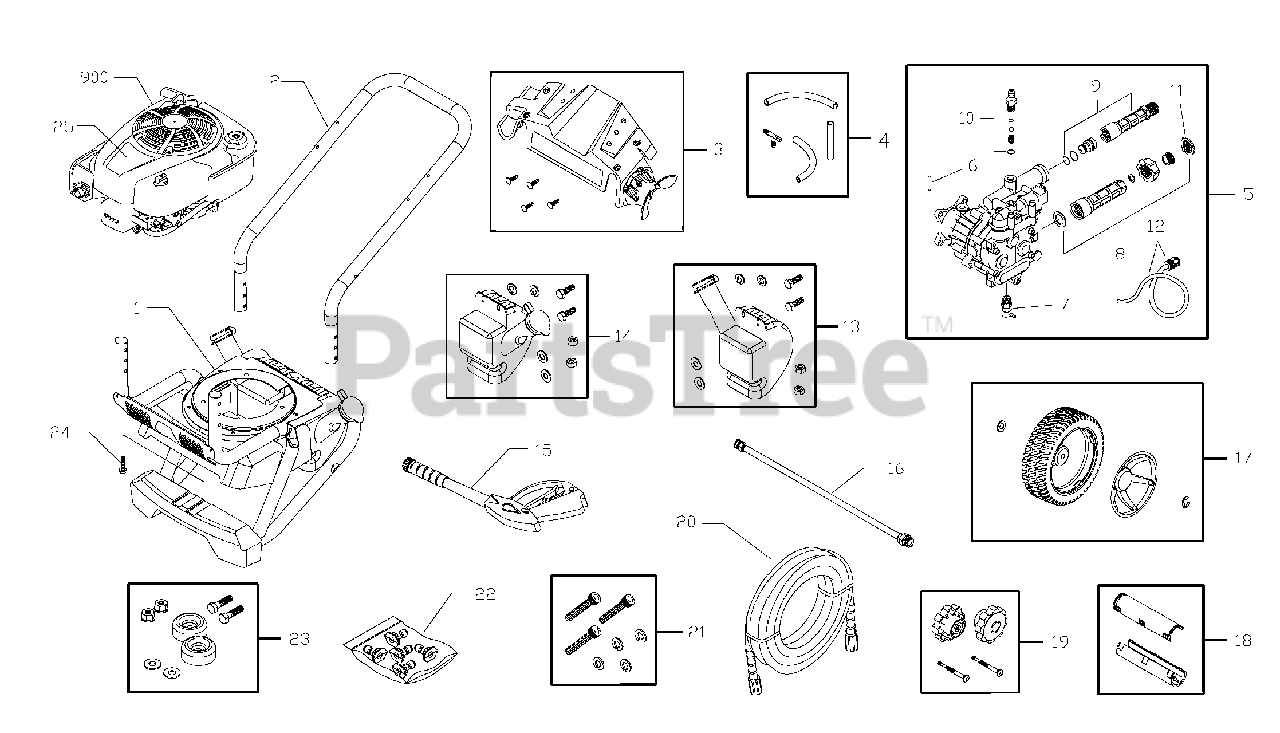

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 312100GS

BASE

$398.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 310628BWGS

HANDLE

$117.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 310857GS

BILLBOARD

$85.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

KIT, Tree Clips

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 208728GS

HOSE, Chemical

$7.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 206376GS

PUMP

$385.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 208673GS

VALVE, Thermo Relief

$14.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 206374GS

KIT, Water Inlet

$

$

Not available

9

Briggs & Stratton 206375GS

KIT, Water Outlet

$120.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 190593GS

KIT, Chemical Injection

$

$

Not available

11

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, Qty 15

0

12

Briggs & Stratton 189971GS

HOSE, Chemical

$

$

Not available

13

Briggs & Stratton 310821GS

TANK, Chemical

$

$

Not available

--

Briggs & Stratton 310806GS

CAP, Chemical Tank
(Superseded to 312369GS)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310333GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 6

0

14

Briggs & Stratton 310820GS

TANK, Chemical

$87.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310805GS

CAP, Chemical Tank
(Superseded to 312369GS)

$5.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310333GS

KIT, Fuel Valve

$10.99

$

In Stock, Qty 6

0

15

Briggs & Stratton 209094GS

GUN
(Superseded to 704310)

$116.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

17

Briggs & Stratton 202477GS

KIT, Wheel

$47.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200519GS

HUBCAP

$19.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

18

Briggs & Stratton 311969GS

GRIP

$18.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 312099GS

KIT, Hardware, Handle

$25.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 311528GS

HOSE

$88.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 311311GS

KIT, QC Nozzles

$41.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983ANGS

NOZZLE, QC, Red

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983QGS

NOZZLE, QC, Green

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983RGS

NOZZLE, QC, White

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983APGS

NOZZLE, QC, Cyan

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AQGS

NOZZLE, QC, Magenta
(Superseded to 706155)

$11.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 11

0

24

Briggs & Stratton 75246GS

TAPTITE

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 310865GS

DECAL

$8.99

$

Usually ships in 2-12 days

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 310851GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 310983GS

DECAL, Unit

Note: (Not Illustrated)

$8.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311247GS

DECAL, Gun

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 311807GS

AXLE

Note: (Not Illustrated)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0
