020413-02 - Troy-Bilt 2,500 PSI Pressure Washer Main Unit (316450) Parts Diagram

2,500 PSI Pressure Washer

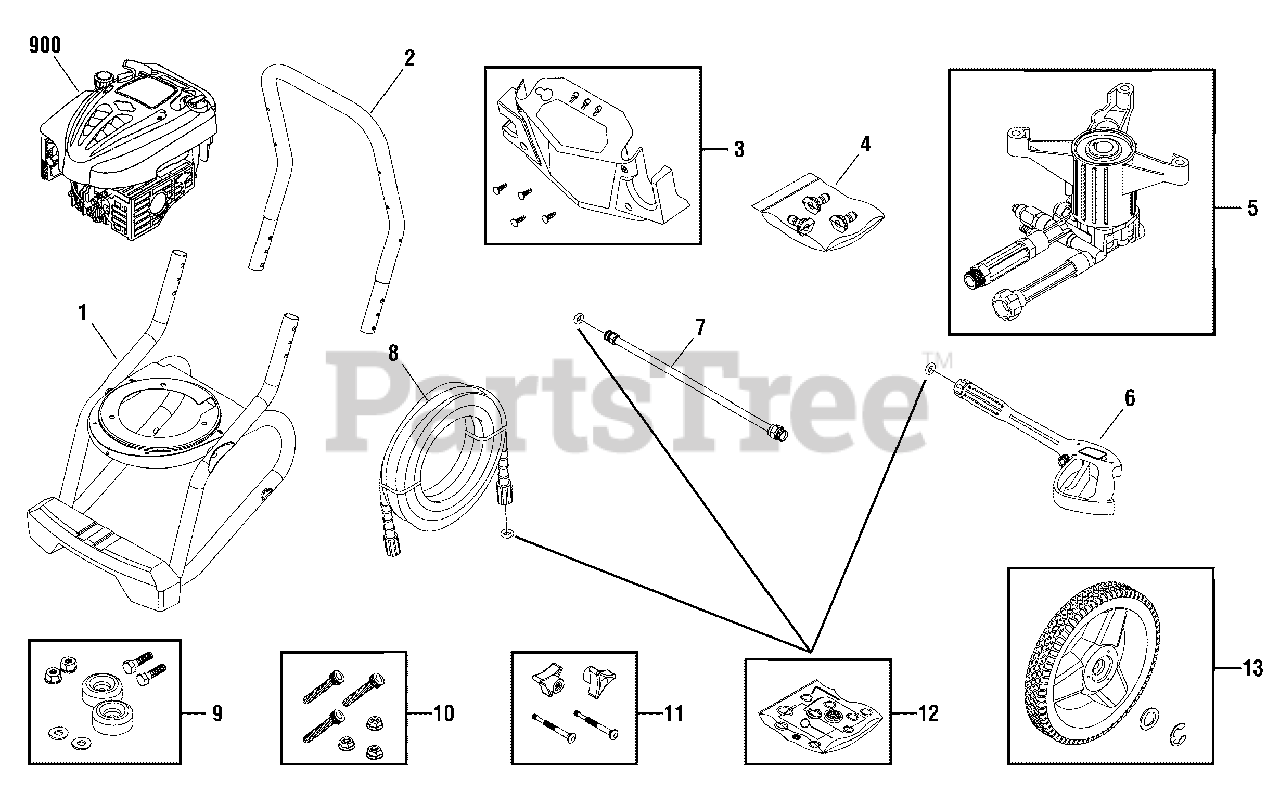

Main Unit (316450) Parts Diagram

  • Title

1

Briggs & Stratton 311895GS

BASE

$243.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 310629BVGS

HANDLE

$127.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 316455GS

BILLBOARD

$85.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

CLIP

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 201324GS

KIT, QC Nozzles

$22.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983QGS

NOZZLE, QC Green

$10.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 195983AEGS

NOZZLE, QC Red

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 311554GS

PUMP
(Superseded to 706385)

$253.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 204627GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 207784GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

8

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 192310GS

MOUNT, Vibration

$9.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 315139GS

KIT, Hardware, Pump Mounting

$9.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 311896GS

KIT, Hardware, Handle

$22.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 196002GS

KIT, O-Ring
(Superseded to 705001)

$18.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 311902GS

KIT, Wheel

$51.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

900

-----

* ENGINE

$

$

Not available

--

Briggs & Stratton 316460GS

MANUAL, Operator

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 199272GS

OIL BOTTLE
(Superseded to 100005WEB)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 310975GS

HOSE, Chemical
(Superseded to 705076)

Note: (Not Illustrated)

$12.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 23139GS

KEY

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 314957GS

AXLE

Note: (Not Illustrated)

$15.99

$

In Stock, only 1 left!

0

--

Murray 794693

LABEL, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 790037

COVER, Static / Label

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
