020410-1 - Craftsman 2,550 PSI Pressure Washer Main Unit (313703) Parts Diagram

2,550 PSI Pressure Washer

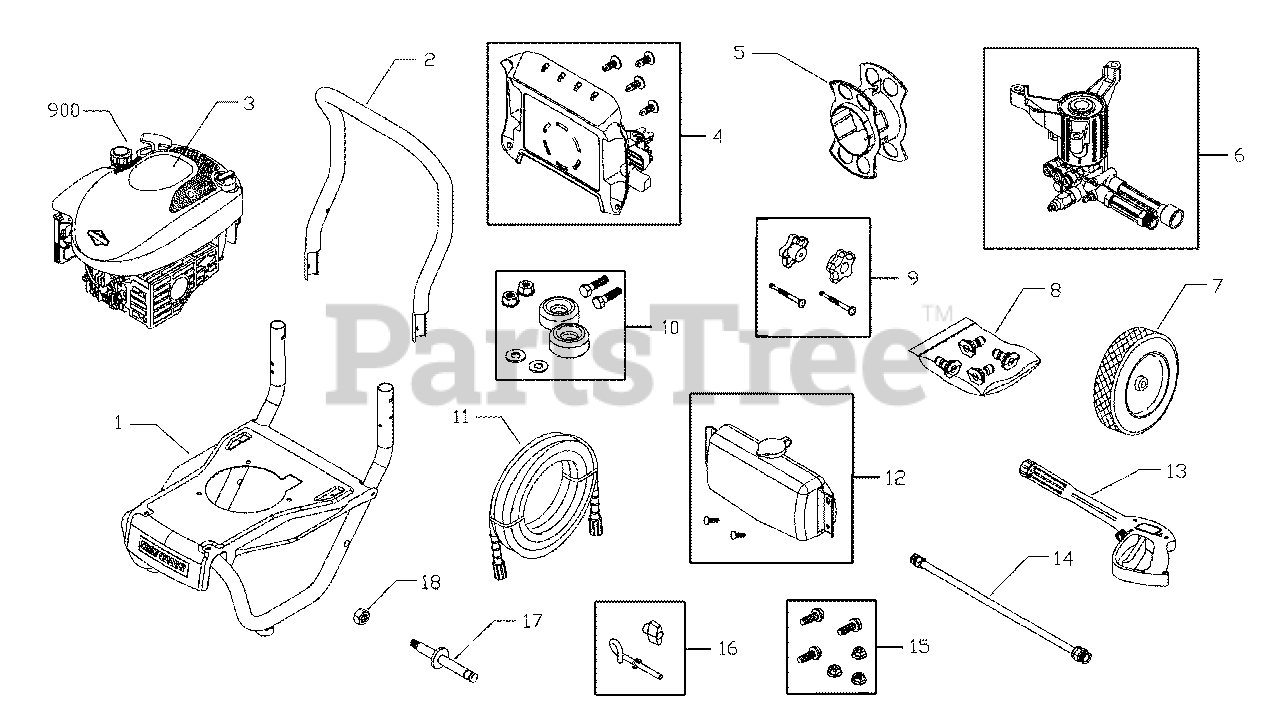

Main Unit (313703) Parts Diagram

  • Title

1

Briggs & Stratton 313850GS

BASE (BASE)

$397.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 204257BNGS

HANDLE (POIGNÉE)

$79.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 312091GS

DECAL (DÉCALQUE)

$30.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 310270GS

BILLBOARD (PANNEAU D’AFFICHAGE)

$142.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS (AGRAFES)

$3.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 204684GS

WRAP-HOSE (DÉVIDOIR-BOYAU)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 202274GS

PUMP (POMPE)
(Superseded to 207365GS)

$234.99

$

In Stock, Qty 7

0

7

Briggs & Stratton 208402GS

WHEEL (ROUE)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 204971GS

KIT-QC NOZZLES (ENSEMBLE-BUSES RACCORDS RAPIDES)

$35.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE-QC BLACK (BUSE-RACCORDS RAPIDES NOIRE)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983AEGS

NOZZLE-QC RED (BUSE-RACCORDS RAPIDES ROUGE)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195983XGS

NOZZLE-QC YELLOW (BUSE-RACCORDS RAPIDES JAUNE)

$10.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 195983RGS

NOZZLE-QC WHITE (BUSE-RACCORDS RAPIDES BLANCHE)

$10.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 205910GS

KIT-HARDWARE HANDLE (ENSEMBLE-QUINCAILLERIE DE POIGNÉE)

$22.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192310GS

MOUNT-VIBRATION (MONTANT-ANTIVIBRATILE)

$9.99

$

In Stock, Qty 11

0

11

Briggs & Stratton 196006GS

HOSE (BOYAU)
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 205369GS

TANK-CHEMICAL (RÉSERVOIR-PRODUITS CHIMIQUES)

$67.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 310333GS

KIT-FUEL VALVE (ENSEMBLE-SOUPAPE D’ESSENCE)

$10.99

$

In Stock, Qty 6

0

--

Briggs & Stratton B3222EGS

CAP-CHEMICAL TANK (BOUCHON-RÉSERVOIR DE PRODUITS CHIMIQUES)

$5.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS (AGRAFES)

$3.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 204627GS

GUN (PISTOLET)
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 200595GS

EXTENSION-QC (RALLONGE-RACCORDS RAPIDES)
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

15

Briggs & Stratton 203526GS

KIT-HARDWARE, PUMP MOUNTING (ENSEMBLE-QUINCAILLERIE, MONTAGE DE POMPE)

$5.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205912GS

GUIDE-ROPE (GUIDE-CÂBLE)

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 313032GS

AXLE (AXE)

$6.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 015X68MA

NUT (ÉCROU)
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 126T02-0344-B1

* ENGINE (MOTEUR)

$

$

Currently unavailable

--

Briggs & Stratton 313702GS

MANUAL-OPERATOR’S (MANUEL-UTILISATION)

Note: (Not Illustrated)

$13.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 23139GS

KEY (CLÉ)

Note: (Not Illustrated)

$4.49

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING (ANNEAU EN E)
(Superseded to 703976)

Note: (Not Illustrated)

$4.49

$

In Stock, Qty 10

0

--

Briggs & Stratton A1040JGS

HOSE-CHEMICAL (BOYAU-CHIMIQUES)

Note: (Not Illustrated)

$13.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton AB3061BGS

OIL BOTTLE (BOUTEILLE D’HUILE)

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 189332GS

PLUG-HOLE (BOUCHON-TROU)

Note: (Not Illustrated)

$3.99

$

In Stock, only 2 left!

0

--

Murray 794693

LABEL-WARNING (ÉTIQUETTE-AVERTISSEMENT)

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195015GS

TAG-WARNING (ÉTIQUETTE-AVERTISSEMENT)

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 196002GS

O-RING MAINTENANCE (ENTRETIEN DU JOINT TORIQUE)
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 7167300GS

House Wash Concentrate (Concentré de nettoyant ménager)

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7167301GS

Deck Wash Concentrate (Concentré de nettoyant de pont)

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate (Concentré de nettoyant de véhicule/bateau)

Note: (Optional Accessory)

$

$

Currently unavailable

--

Briggs & Stratton 7167303GS

Degreaser Concentrate (Concentré de dégraissant)

Note: (Optional Accessory)

$

$

Currently unavailable
