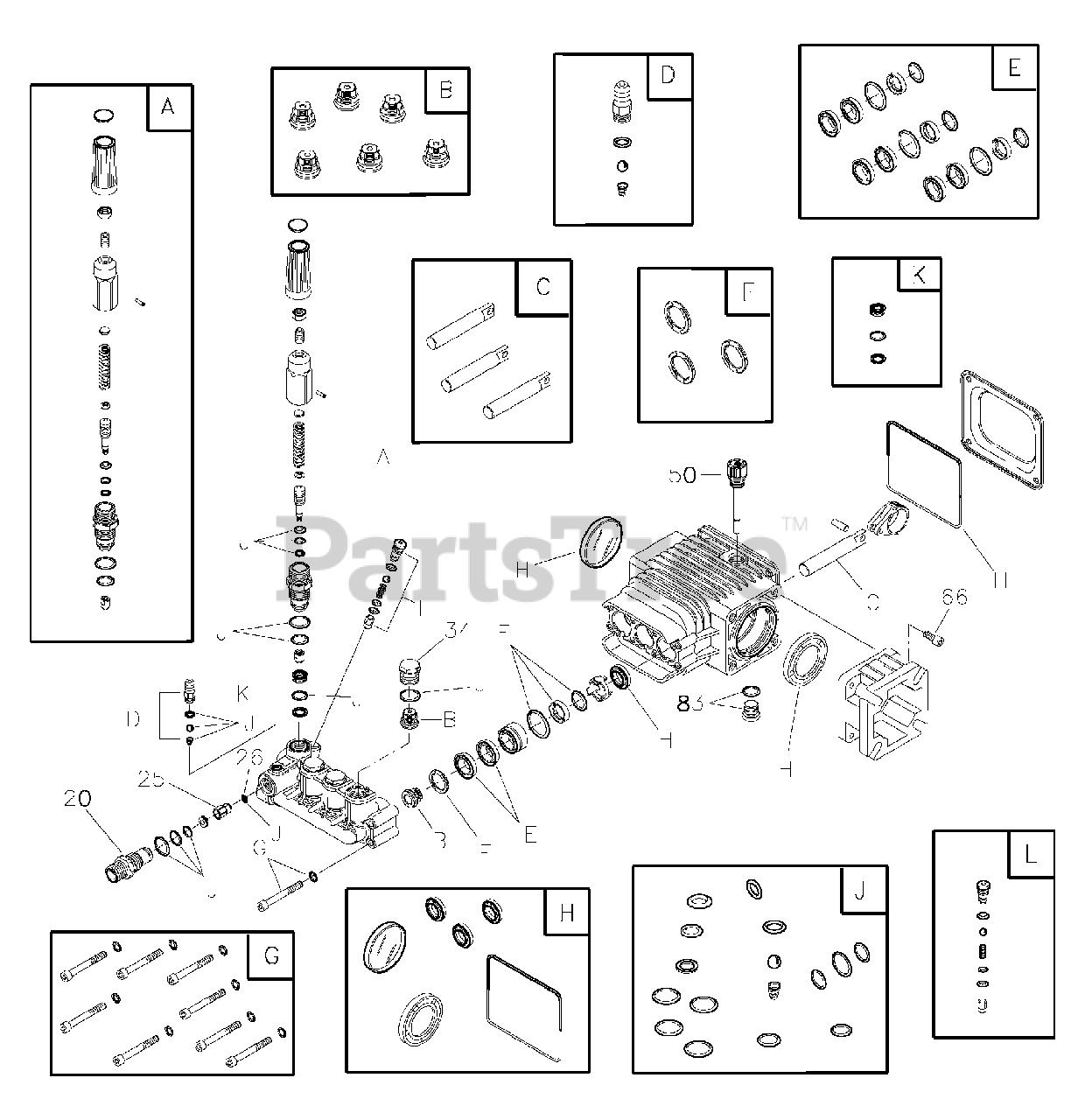

020324-0 - Briggs & Stratton 2,800 PSI Pressure Washer Pump Parts Diagram

2,800 PSI Pressure Washer

Pump Parts Diagram

  • Title

20

Briggs & Stratton 198851GS

INJTR, Detergent 3/8NPT

$45.99

$

In Stock, Qty 8

0

25

Briggs & Stratton 204860GS

JET

$

$

Not available

26

Briggs & Stratton 204859GS

O-RING

$5.49

$

In Stock, only 4 left!

0

34

Briggs & Stratton 198850GS

PLUG

$20.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198849GS

CAP, Oil Dipstick

$33.99

$

In Stock, only 2 left!

0

66

Briggs & Stratton 198297GS

SCREW, M8 x 20

$9.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 203034GS

KIT, Drain Plug

$14.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198736GS

KIT, Unloader

Note: Service kits and include all parts shown within the box

$134.99

$

In Stock, only 4 left!

0

B

Briggs & Stratton 198843GS

KIT, Valves

Note: Service kits and include all parts shown within the box

$86.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 198844GS

KIT, Piston

Note: Service kits and include all parts shown within the box

$286.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 192914GS

KIT, Hose Tail

Note: Service kits and include all parts shown within the box

$24.99

$

In Stock, only 1 left!

0

E

Briggs & Stratton 198845GS

KIT, Water Seals

Note: Service kits and include all parts shown within the box

$164.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 198848GS

KIT, Support Ring

Note: Service kits and include all parts shown within the box

$13.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 198852GS

KIT, Pump Head Hardware

Note: Service kits and include all parts shown within the box

$33.99

$

In Stock, only 1 left!

0

H

Briggs & Stratton 198846GS

KIT, Oil Seals

Note: Service kits and include all parts shown within the box

$101.99

$

Usually ships in 2-12 days

0

J

Briggs & Stratton 198847GS

KIT, O-Rings

Note: Service kits and include all parts shown within the box

$26.99

$

In Stock, only 1 left!

0

K

Briggs & Stratton 202902GS

KIT, Seat

Note: Service kits and include all parts shown within the box

$152.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 202800GS

KIT, EZ Start

Note: Service kits and include all parts shown within the box

$69.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton B2384GS

FILTER Inlet

Note: Parts Not Illustrated

$4.49

$

In Stock, Qty 15

0

L

Briggs & Stratton 194298GS

Thermal Relief
(Superseded to 208673GS)

Note: Parts Not Illustrated

$14.99

$

In Stock, Qty 20+

0

L

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, Qty 20+

0

L

Briggs & Stratton 6033

OIL BOTTLE, Pump

Note: Optional Accessories

$24.99

$

Usually ships in 2-12 days

0
