020287-0 - Troy-Bilt 3,800 PSI Pressure Washer Main Unit Parts Diagram

3,800 PSI Pressure Washer

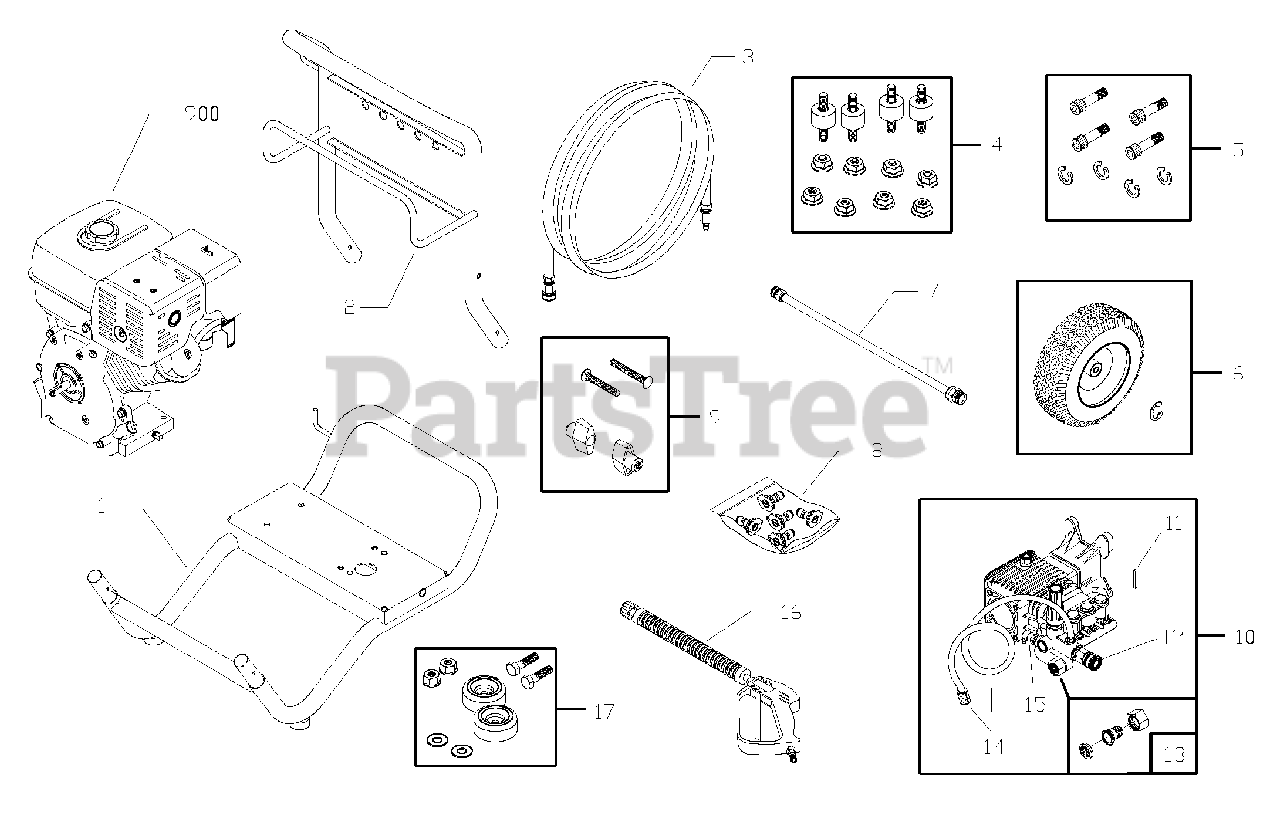

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B194424GS

BASE, w/Mounts

$229.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B196133GS

HANDLE

$164.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B4805GS

HOSE
(Superseded to 205734GS)

$

$

Not available

4

Briggs & Stratton 195294GS

KIT, Engine Mounting Hardware

$23.99

$

In Stock, Qty 14

0

5

Briggs & Stratton 192132GS

KIT, Pump Mounting Hardware

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 194411GS

KIT, Wheel

$87.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

7

Briggs & Stratton 193814GS

EXTENSION
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 196233GS

KIT, Spray Tips
(Superseded to 207491GS)

$43.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983AGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983BGS

Nozzle, QC,Yellow

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195983CGS

Nozzle, QC, Green

$11.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 195983DGS

Nozzle, QC,White

$11.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 195851ZZGS

Nozzle, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 63281GS

Key
(Superseded to 703890)

$4.99

$

In Stock, Qty 7

0

10

Briggs & Stratton 199311GS

PUMP, Complete
(Superseded to 203046GS)

$731.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 95458GS

Quick Connect
(Superseded to 703824)

$

$

Not available

13

Briggs & Stratton 199310GS

Kit, Connector Garden Hose

$12.99

$

In Stock, Qty 5

0

14

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

15

Briggs & Stratton 194298GS

Valve, Thermal
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton B1436BGS

GUN
(Superseded to 704311)

$115.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 11

0

900

§

ENGINE

$

$

Not available

900

Briggs & Stratton 200110GS

MANUAL, Operator’s

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 191267RGS

AXLE

Note: Not Illustrated

$44.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 192126GS

KIT, Vinyl Cap

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 30809GS

GROMMET

Note: Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 200173GS

KIT, Decals, Service

Note: Not Illustrated

$29.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, Qty 20+

0
