020275-2 - Briggs & Stratton 3,400 PSI Pressure Washer Main Unit Parts Diagram

3,400 PSI Pressure Washer

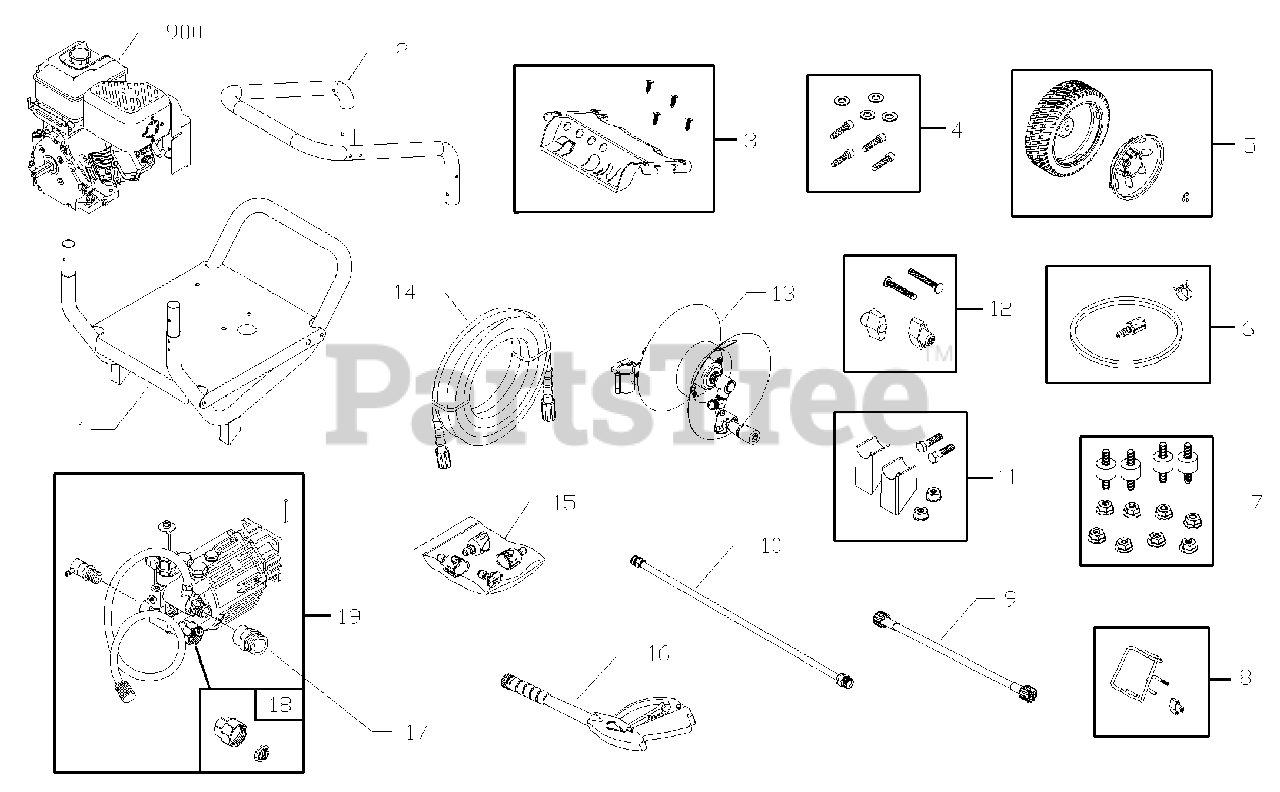

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 209894GS

BASE

$

$

Not available

2

Briggs & Stratton Y201499GS

HANDLE

$59.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202854GS

BILLBOARD

$71.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

KIT, Tree Clips

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 192131GS

KIT, Hardware, Pump Mounting

$5.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 203083GS

KIT, Wheel

$43.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 200520GS

HUBCAP

$17.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

6

Briggs & Stratton 192796GS

KIT, Chemical Hose and Filter

$16.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192134GS

KIT, Vibration Mount

$29.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 201661GS

WIREFORM

$36.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202418GS

HOSE, Whip

$39.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193814GS

EXTENSION, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 209884GS

KIT, Vibration Mount

$15.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton B2203GS

KIT, Hardware, Handle

$5.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 202136GS

REEL, Hose

$78.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 203488GS

KIT, Hardware, Hose Reel

$7.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202419GS

HOSE

$211.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 202182GS

KIT, QC Nozzles
(Superseded to 207471GS)

$31.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 201580RGS

NOZZLE, QC Project Pro, Yellow

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201580XGS

NOZZLE, QC Project Pro, Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 201580AAGS

NOZZLE, QC, Project Pro, Red
(Superseded to 195983AAGS)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC, Black

$10.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

17

Briggs & Stratton 1795457GS

ADAPTER

$

$

Currently unavailable

18

Briggs & Stratton 194004GS

CONNECTOR, Garden Hose

$

$

Not available

19

Briggs & Stratton 202005GS

PUMP

$719.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

900

-----

*ENGINE

$

$

Not available

--

Briggs & Stratton 206859

MANUAL, Operator's

Note: (Not Shown)

$

$

Currently unavailable

--

Briggs & Stratton 87815

GOGGLES
(Superseded to 87815GS)

Note: (Not Shown)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: (Not Shown)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 203874

AXLE

Note: (Not Shown)

$

$

Currently unavailable

--

Briggs & Stratton 695755

KNOB, Throttle

Note: (Not Shown)

$11.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 202367

KIT, Decals

Note: (Not Shown)

$

$

Currently unavailable

--

Briggs & Stratton 194256

TAG, Warning

Note: (Not Shown)

$

$

Currently unavailable

--

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
