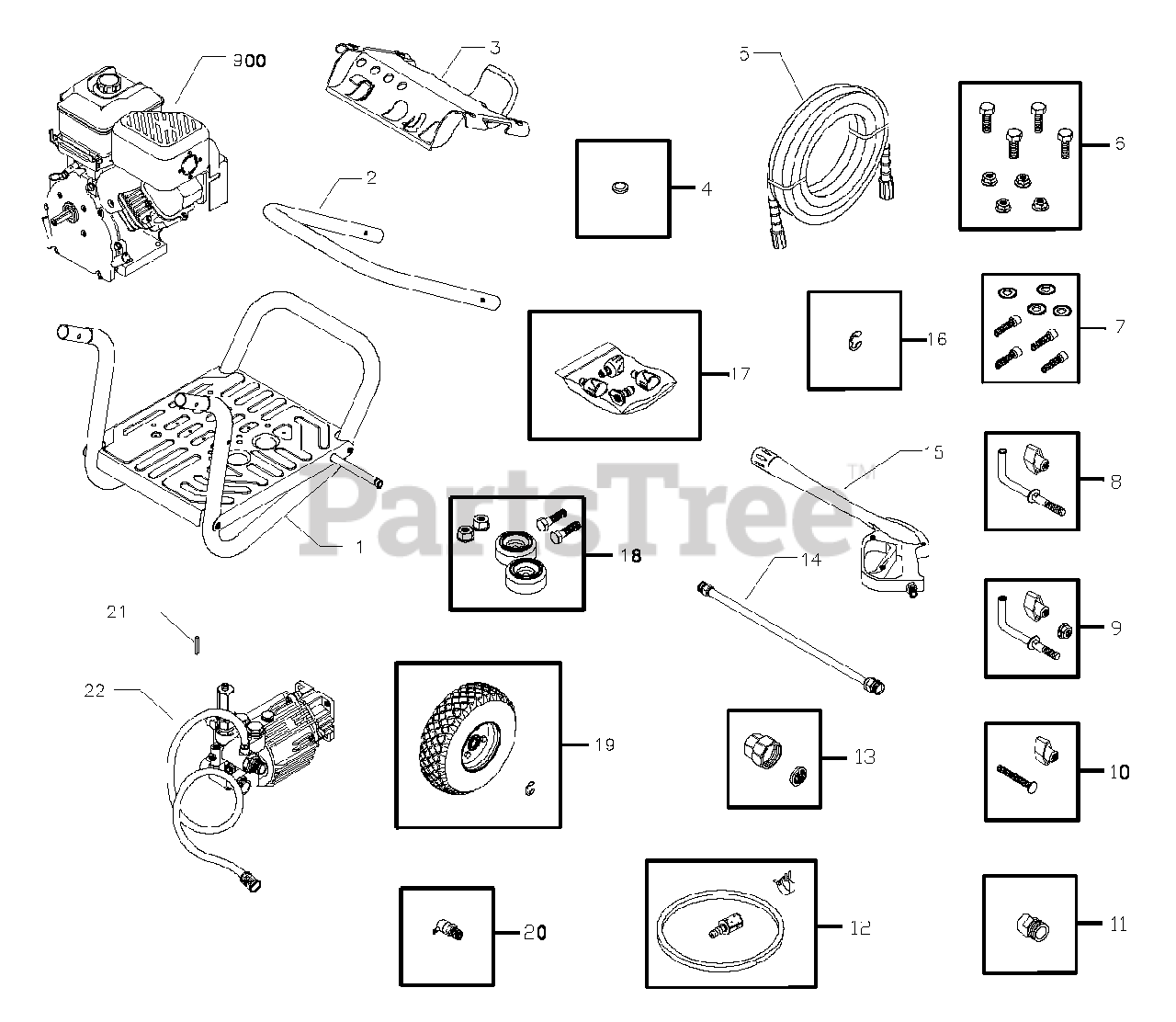

020242-1 - Troy-Bilt 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196695GS

BASE

$207.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P194567GS

HANDLE

$78.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196788GS

ASSY, Billboard w/Clips

$48.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

CLIPS,Tree

$4.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 194564GS

HOSE
(Superseded to 206192GS)

$103.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 192318GS

KIT, Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 193819GS

KIT, Hook, Lower Handle

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 194264GS

KIT, Hook, Upper Handle

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B2203GS

KIT, Handle Hardware

$5.49

$

In Stock, only 1 left!

0

11

Briggs & Stratton 95457GS

ADAPTER, Hose to Hose

$7.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192796GS

KIT, Chem Hose & Filter

$16.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 194004GS

KIT, Inlet, Hose, Grdn, Srv

$

$

Not available

14

Briggs & Stratton 195970GS

ASSY,Wand, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

15

Briggs & Stratton B3263GS

GUN

$93.99

$

In Stock, Qty 7

0

16

Briggs & Stratton 191265GS

E-RING
(Superseded to 703977)

$4.99

$

In Stock, Qty 14

0

17

Briggs & Stratton 195889GS

KIT, Nozzle
(Superseded to 202182GS)

$31.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 195851ZZGS

NOZZLE, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 195842AAGS

NOZZLE, QC, Proj Pro, Red
(Superseded to 201580AAGS)

$10.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 195842XGS

NOZZLE, QC, Proj Pro, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton 195842RGS

NOZZLE, QC, Proj Pro,Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 192310GS

KIT,Vibration Mount

$9.99

$

In Stock, Qty 9

0

19

Briggs & Stratton 194509GS

KIT,Wheel

$52.99

$

In Stock, only 4 left!

0

20

Briggs & Stratton 194298GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

21

Briggs & Stratton 23139DGS

KEY

$4.49

$

In Stock, only 1 left!

0

22

Briggs & Stratton 194003GS

ASSY, Pump
(Superseded to 202005GS)

Note: (see "Pump")

$719.99

$

Usually ships in 2-12 days

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton MS6737

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 197410GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191267SGS

AXLE

Note: Not Illustrated

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT,Tag Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100031

STABILIZER, Fuel
(Superseded to 100126)

Note: Optional Accessories

$3.49

$

In Stock, Qty 20+

0

Briggs & Stratton 100516GS

KIT-O-Ring
(Superseded to 705001)

Note: Optional Accessories

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessories

$12.99

$

In Stock, Qty 20+

0
