020241-0 - Troy-Bilt 2,600 PSI Pressure Washer Main Unit Parts Diagram

2,600 PSI Pressure Washer

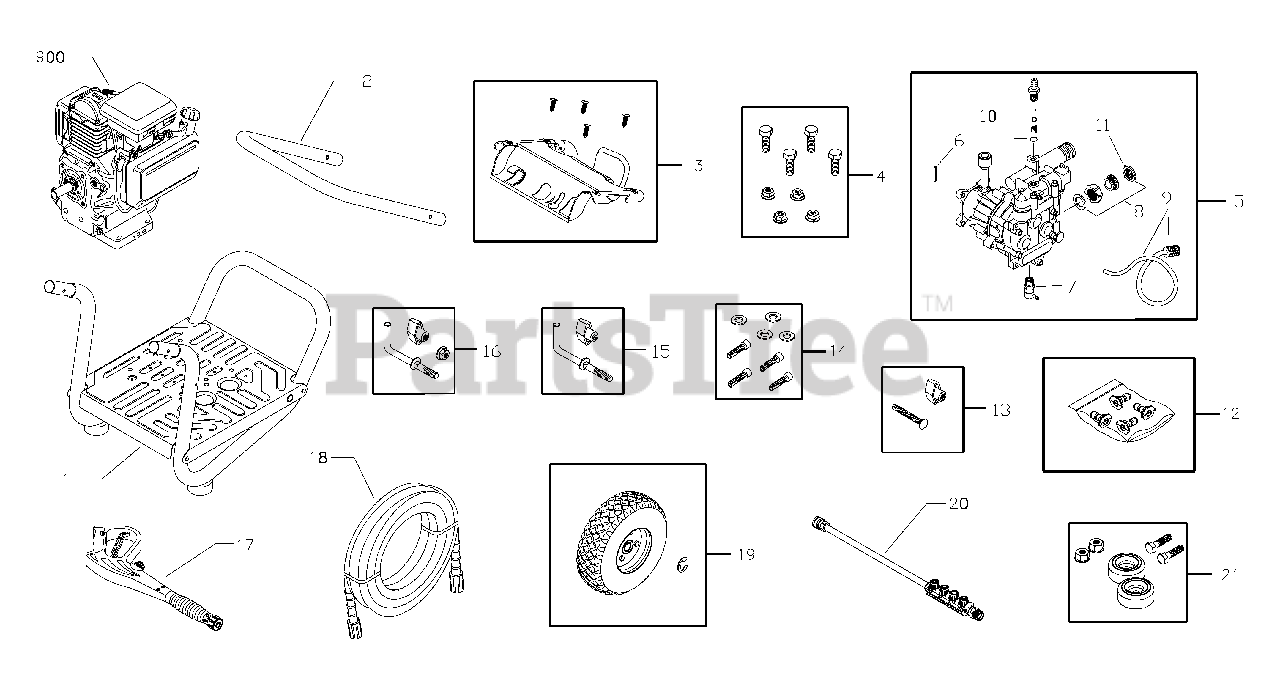

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196695GS

Base, w/Mounts

$207.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P194567GS

Handle

$78.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196780GS

Assy, Billboard w/Decals

$58.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192318GS

Kit, Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 198347GS

Assy, Pump
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 23139DGS

Key

$4.49

$

In Stock, only 1 left!

0

7

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 190670GS

Kit, Water Inlet

$40.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

10

Briggs & Stratton 190593GS

Kit, Chemical Injection

$

$

Not available

11

Briggs & Stratton B2384GS

Filter

$4.49

$

In Stock, Qty 15

0

12

Briggs & Stratton 196020GS

Kit, Nozzle
(Superseded to 208324GS)

$39.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 195983NGS

Nozzle, QC, Red

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 195983PGS

Nozzle, QC, Yellow

$10.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 195983RGS

Nozzle, QC, White

$10.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton B2203GS

Kit, Handle Hardware

$5.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 192131GS

Kit, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 193819GS

Kit, Hook, Lower Handle

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194264GS

Kit, Hook, Upper Handle

$5.49

$

In Stock, only 1 left!

0

17

Briggs & Stratton 199117GS

Gun
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

18

Briggs & Stratton 196006GS

Hose
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 194509GS

Kit, Wheel

$52.99

$

In Stock, only 4 left!

0

19

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 17

0

20

Briggs & Stratton 192198GS

Extension, QC w/Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, Qty 11

0

900

Engine

Note: Contact Engine Manufacturer

$

$

Not available

900

Briggs & Stratton B3294GS

Manual, Engine

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 196019GS

Manual, Operator’s

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton BB3061BGS

Oil Bottle
(Superseded to 100005)

Note: Items Not Illustrated

$8.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 191267SGS

Axle

Note: Items Not Illustrated

$36.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 194524GS

Decal, Honda Choke

Note: Items Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 194256GS

Kit, Tag Warning
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 6048

Kit, O-Ring
(Superseded to 705001)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 20+

0

900

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, Qty 20+

0
