020240-2 - Troy-Bilt 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

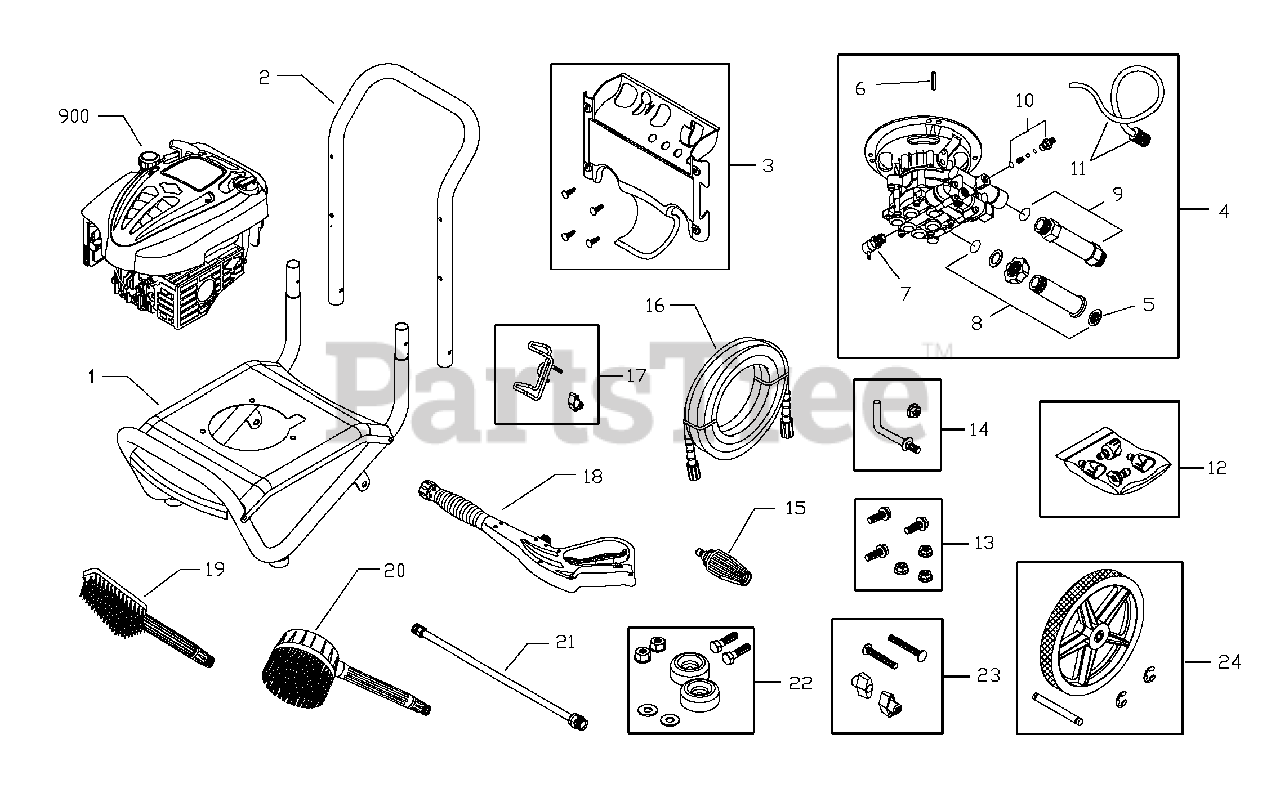

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196471GS

BASE

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P195428GS

HANDLE

$94.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196010GS

BILLBOARD

$49.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton B1797GS

CLIPS, Tree

$3.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 199735GS

PUMP
(Superseded to 207365GS)

Note: (Includes Ref. Nos. 5, 6, 7, 8, 9, 10 & 11)

$234.99

$

In Stock, Qty 7

0

5

Briggs & Stratton B2384GS

FILTER, Garden Hose

$4.49

$

In Stock, Qty 15

0

6

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 208673GS

VALVE, Thermal Relief

$14.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 190632GS

CONNECTOR, Garden Hose

$

$

Not available

9

Briggs & Stratton 190634GS

KIT, Water Outlet
(Superseded to 201497GS)

$28.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 190593GS

KIT, Chemical Injection

$

$

Not available

11

Briggs & Stratton 189971GS

KIT, Chemical Hose

$

$

Not available

12

Briggs & Stratton 195943GS

KIT, QC Nozzles

$48.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

NOZZLE, QC Black

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195842AEGS

NOZZLE, QC Red
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201580XGS

NOZZLE, QC Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 195842RGS

NOZZLE, QC Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192529GS

KIT, Hardware, Pump Mounting

$6.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192309GS

HOOK

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 194236CGS

NOZZLE, Turbo

$70.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 202200GS

WIREFORM

$31.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 199117GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, Qty 7

0

19

Briggs & Stratton 196534GS

BRUSH, Utility

$38.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 196535GS

BRUSH, Rotating

$60.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200595GS

EXTENSION, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 11

0

22

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 11

0

23

Briggs & Stratton B2203GS

KIT, Hardware Handle

$5.49

$

In Stock, only 1 left!

0

24

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

--

Briggs & Stratton 195454GS

AXLE

$12.99

$

Usually ships in 2-12 days

0

900

-----

*ENGINE

$

$

Not available

--

Briggs & Stratton 196015GS

MANUAL, Operator's

Note: (Not Illustrated)

$14.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton MS6847

MANUAL, Engine

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton BB3061BGS

OIL BOTTLE
(Superseded to 100005)

Note: (Not Illustrated)

$8.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 196009GS

DECAL

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 194256GS

TAG, Warning
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6048

KIT, O-Ring Maintenance
(Superseded to 705001)

Note: (Optional Accessory)

$18.99

$

In Stock, Qty 20+

0

--

Briggs & Stratton 6039

PUMP SAVER

Note: (Optional Accessory)

$12.99

$

In Stock, Qty 20+

0
