020224-1 - Briggs & Stratton 2,700 PSI Pressure Washer Main Unit Parts Diagram

2,700 PSI Pressure Washer

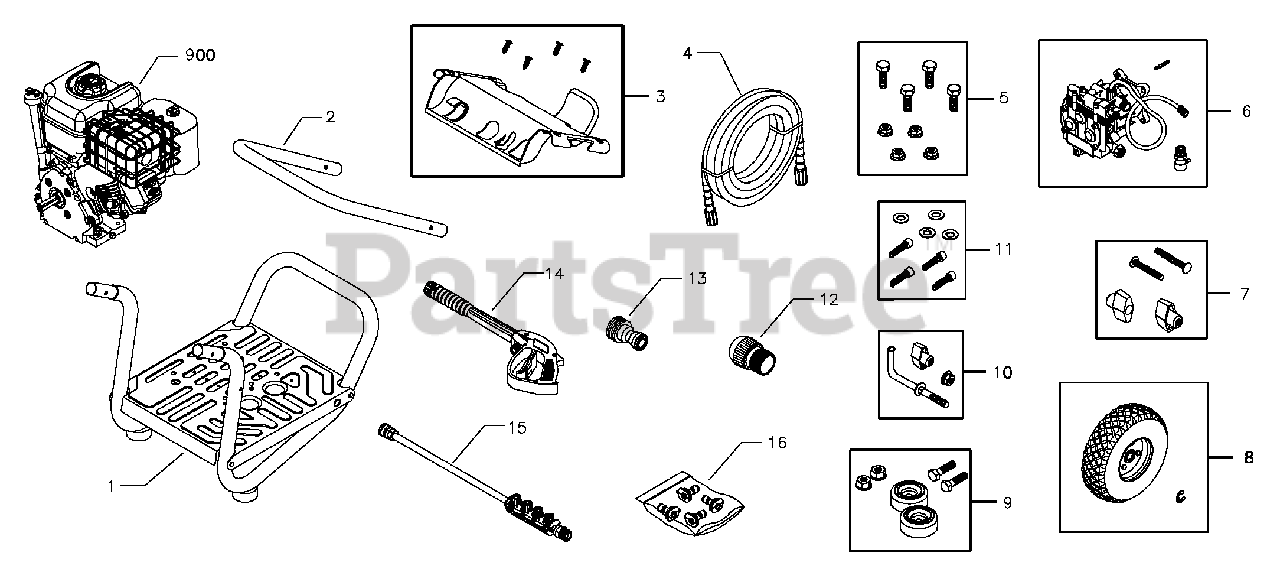

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 198732GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton M194567GS

HANDLE

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 200170GS

ASSY, Billboard w/Decals & Clips

$58.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 192318GS

KIT, Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 198347GS

ASSY, Pump
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 23139DGS

Key

$4.49

$

In Stock, only 1 left!

0

Briggs & Stratton 94298GS

Valve, Thermal Relief

$

$

Not available

7

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 194509GS

KIT, Wheel

$52.99

$

In Stock, only 4 left!

0

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, Qty 15

0

9

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 11

0

10

Briggs & Stratton 193819GS

KIT, Hook

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 96016GS

QUICK CONNECT, Female, Plastic
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

13

Briggs & Stratton 95456GS

QUICK CONNECT, Male
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192198GS

EXTENSION, w/Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 196902GS

KIT, Nozzle
(Superseded to 202514GS)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198841GS

Nozzle, QC, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983WGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983XGS

Nozzle, QC, Yellow

$10.99

$

In Stock, only 2 left!

0

Briggs & Stratton 195983ZGS

Nozzle, QC, White

$10.99

$

In Stock, only 1 left!

0

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 203763GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS3431

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 191267SGS

AXLE

Note: Not Illustrated

$36.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192014GS

FITTING, 1/2"

Note: Not Illustrated

$7.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192015GS

FITTING, 3/4"

Note: Not Illustrated

$8.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 200171GS

KIT, INT'L Tag Warning

Note: Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6048

KIT-O-Ring
(Superseded to 705001)

Note: Not Illustrated

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 6039

PUMP SAVER

Note: Optional Accessory

$12.99

$

In Stock, Qty 20+

0
