020219-0 - Briggs & Stratton Elite 2,450 PSI Pressure Washer Pump Parts Diagram

Elite 2,450 PSI Pressure Washer

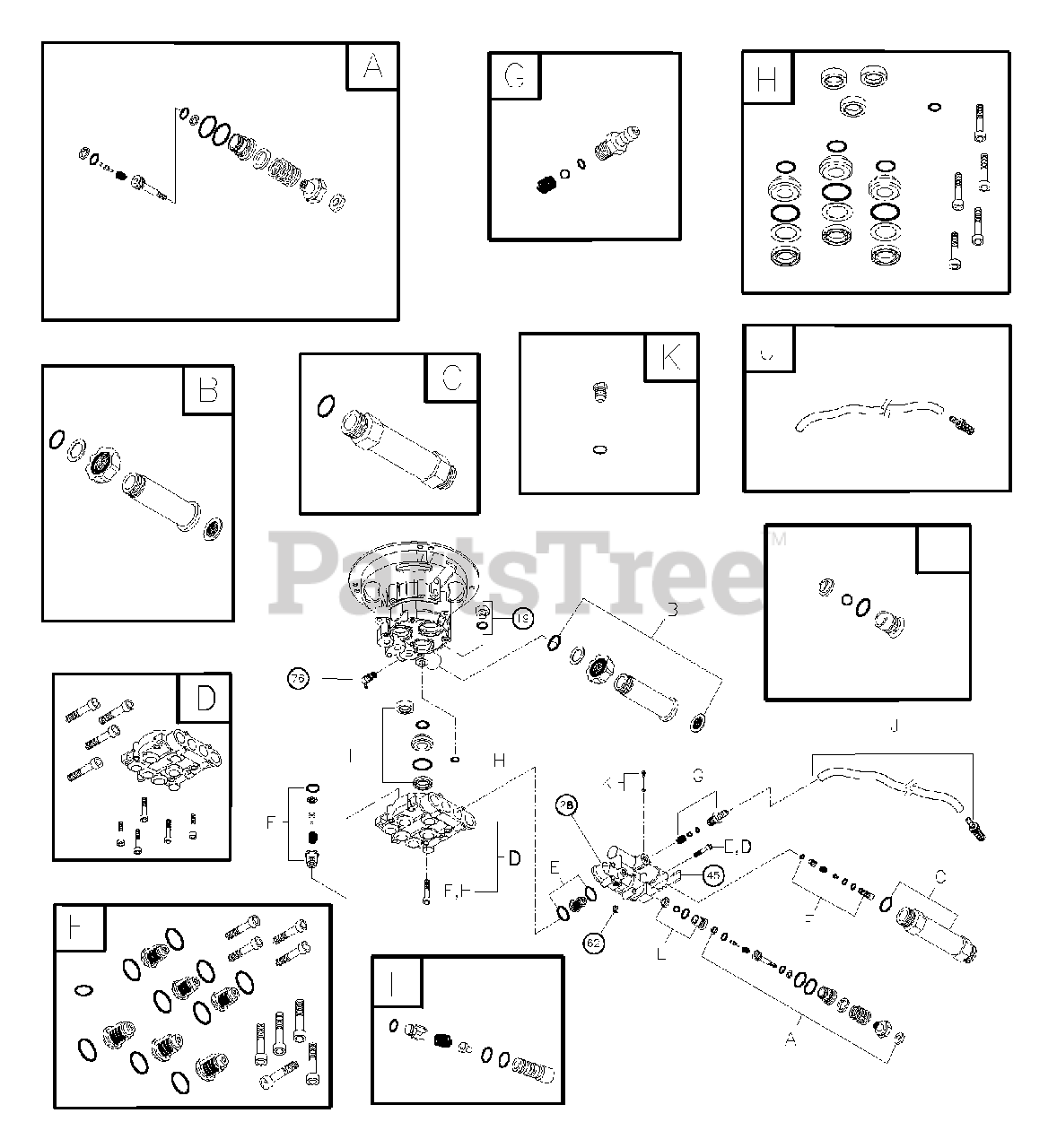

Pump Parts Diagram

  • Title

19

Briggs & Stratton 190571GS

CAP, Oil

$

$

Not available

28

Briggs & Stratton 190627GS

MANIFOLD

$100.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 190578GS

PIN

$

$

Not available

62

Briggs & Stratton 190581GS

CAP, 1/8

$7.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

77

Briggs & Stratton 190586GS

OIL BOTTLE

Note: (not shown)

$11.99

$

In Stock, only 3 left!

0

A

Briggs & Stratton 190594GS

KIT, UNLOADER STEM

Note: Service kits include all parts shown within the box.

$

$

Not available

B

Briggs & Stratton 190632GS

KIT, WATER INLET, ALUM

Note: Service kits include all parts shown within the box.

$

$

Not available

C

Briggs & Stratton 190634GS

KIT, OUTLET, ALUM
(Superseded to 201497GS)

Note: Service kits include all parts shown within the box.

$28.99

$

In Stock, Qty 20+

0

D

Briggs & Stratton 193808GS

KIT, HEAD BRASS

Note: Service kits include all parts shown within the box.

$

$

Not available

E

Briggs & Stratton 193806GS

KIT,CHECK VALVES

Note: Service kits include all parts shown within the box.

$

$

Not available

F

Briggs & Stratton 190592GS

KIT, INLET CHECK

Note: Service kits include all parts shown within the box.

$20.99

$

In Stock, Qty 6

0

G

Briggs & Stratton 190593GS

KIT, CHEMICAL INJECTION

Note: Service kits include all parts shown within the box.

$

$

Not available

H

Briggs & Stratton 193807GS

KIT, SEAL SET

Note: Service kits include all parts shown within the box.

$

$

Not available

J

Briggs & Stratton 189971GS

KIT, CHEMICAL HOSE

Note: Service kits include all parts shown within the box.

$

$

Not available

K

Briggs & Stratton 193971GS

KIT, PIPE FITTING

Note: Service kits include all parts shown within the box.

$7.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 193972GS

KIT, UNLOADER SEAT

Note: Service kits include all parts shown within the box.

$62.99

$

In Stock, only 1 left!

0

Briggs & Stratton B2384GS

FILTER, Inlet

Note: Not Illustrated

$4.49

$

In Stock, Qty 15

0
