020215-0 - Briggs & Stratton Elite 2,450 PSI Pressure Washer Main Unit Parts Diagram

Elite 2,450 PSI Pressure Washer

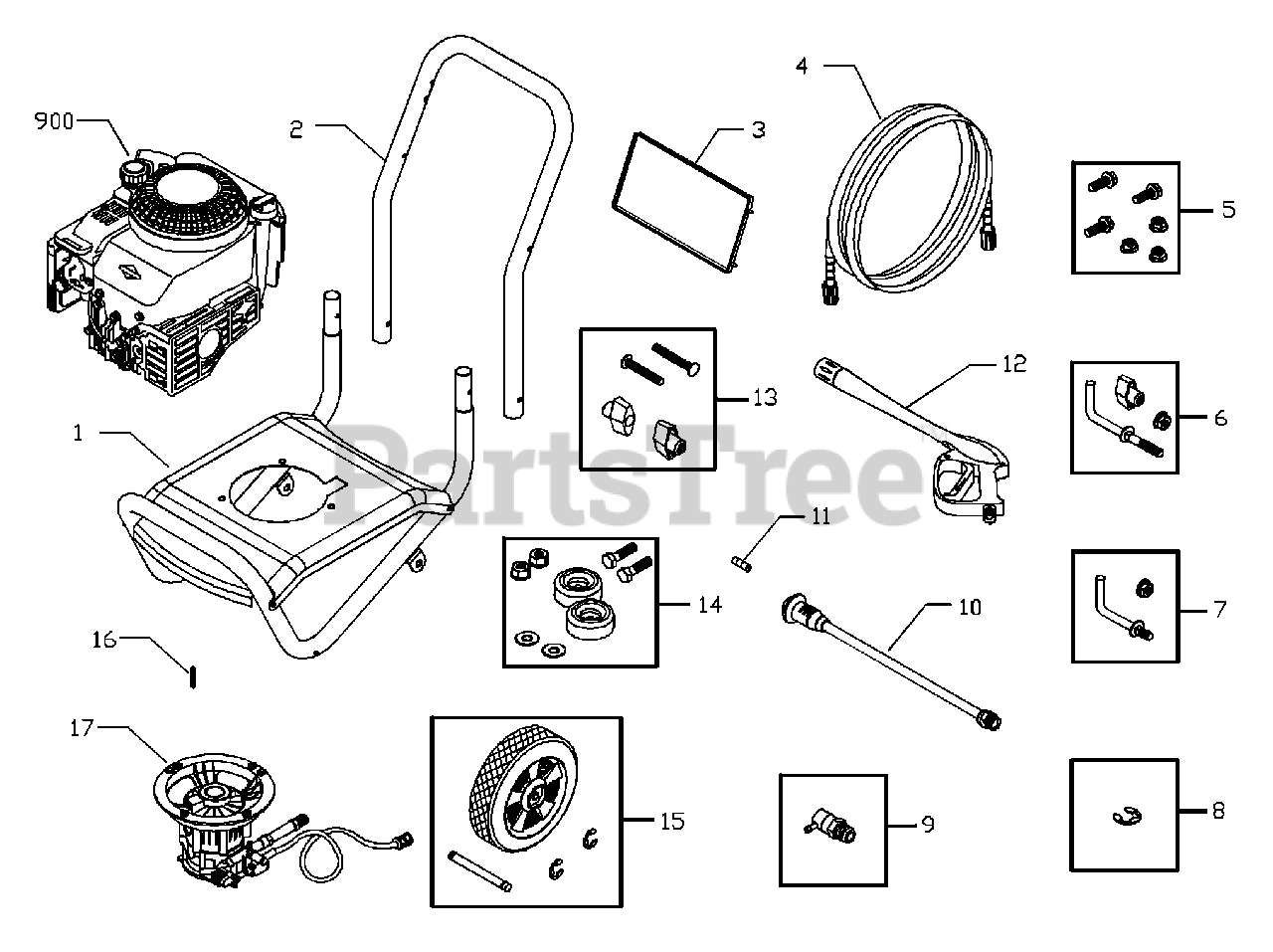

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 195339GS

BASE

$

$

Not available

2

Briggs & Stratton B194718GS

HANDLE

$22.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 194469GS

ASSY, Billboard with Decal

$40.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 192645GS

KIT, Pump Mounting Hardware

$

$

Not available

6

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192309GS

KIT, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

9

Briggs & Stratton 194298GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

10

Briggs & Stratton 188792HGS

WAND,Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 21760GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B3263GS

GUN

$93.99

$

In Stock, Qty 7

0

13

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 9

0

15

Briggs & Stratton 192311GS

KIT, Wheel

$29.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 194216GS

ASSY, Pump
(Superseded to 206383GS)

Note: (see "Pump")

$

$

Not available

900

ENGINE

Note: Contact Engine Manufacturer

$

$

Not available

Briggs & Stratton 194466GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6847

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 194256GS

KIT,Tag,Warning with Clip
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0

Briggs & Stratton 191922GS

KIT, O-RING MAINT & NZZL CLNNG

Note: Not Illustrated

$18.99

$

In Stock, Qty 20+

0
