020207-1 - Troy-Bilt 2,450 PSI Pressure Washer Main Unit Parts Diagram

2,450 PSI Pressure Washer

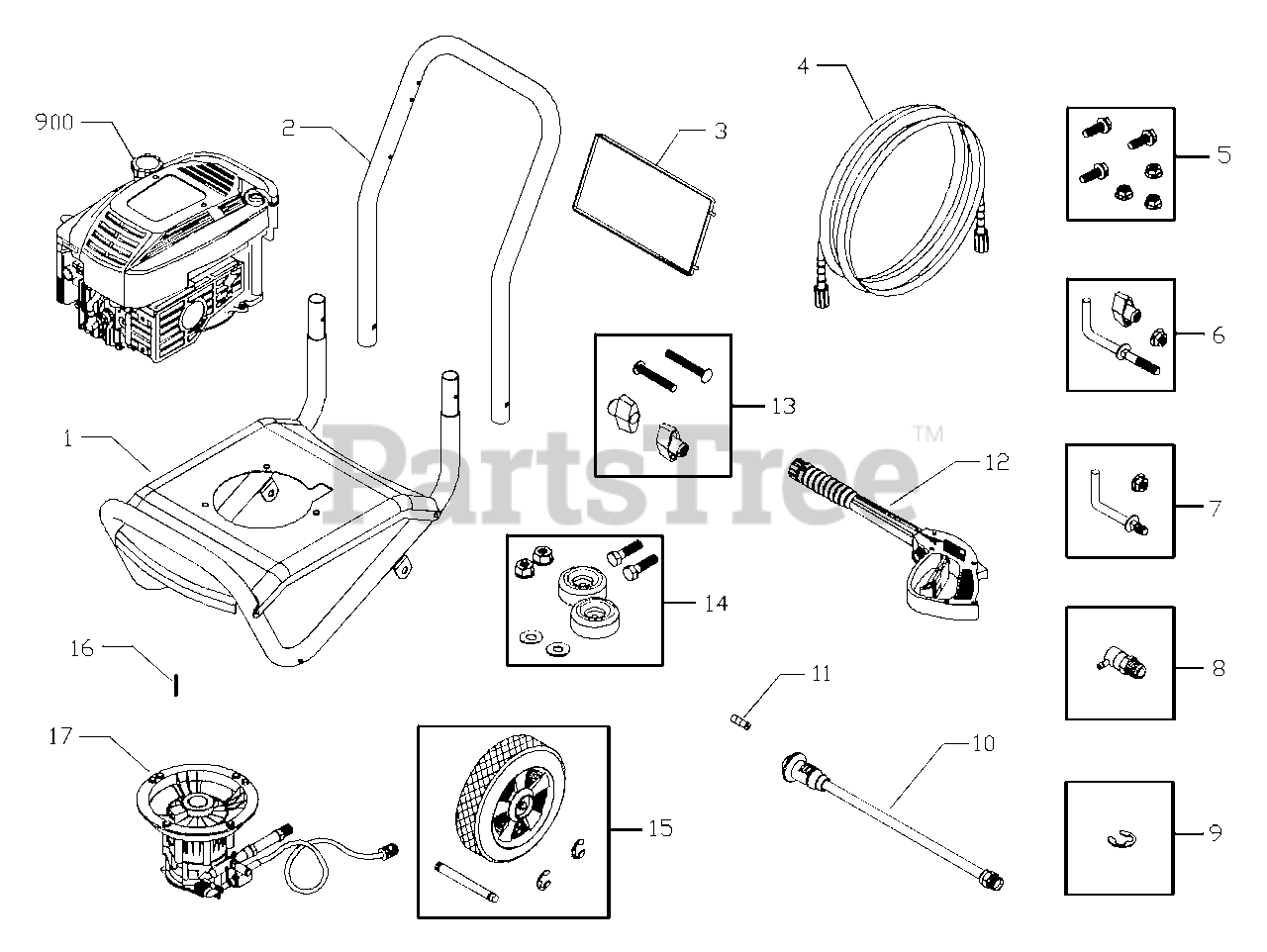

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 192422GS

BASE
(Superseded to 192419GS)

$220.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton P191874GS

HANDLE

$65.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 194613GS

ASSY, Billboard

$40.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 190249GS

HOSE
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 192645GS

KIT, Pump Mounting Hardware

$

$

Not available

6

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192309GS

KIT, Hook, Base

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194298GS

VALVE,Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 9

0

10

Briggs & Stratton 188792HGS

WAND,Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 1 left!

0

11

Briggs & Stratton 21760GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1862BGS

GUN

$93.99

$

In Stock, Qty 7

0

13

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 192310GS

KIT,Vibration Mount

$9.99

$

In Stock, Qty 9

0

15

Briggs & Stratton 194255GS

KIT,Wheel

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 194258GS

ASSY, Pump
(Superseded to 207365GS)

Note: (see "Pump")

$234.99

$

In Stock, Qty 7

0

900

NSP

ENGINE

$

$

Not available

Briggs & Stratton 194620GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton MS6847

MANUAL, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 194256GS

KIT,Tag,Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton BB3061BGS

OIL, Engine
(Superseded to 100005)

Note: Not Illustrated

$8.99

$

In Stock, Qty 20+

0
