020 (211-020-100) - Cub Cadet Front-Tine Tiller Engine (1991) Tec 2 HP TCH300-3304 Parts Diagram

Front-Tine Tiller Engine

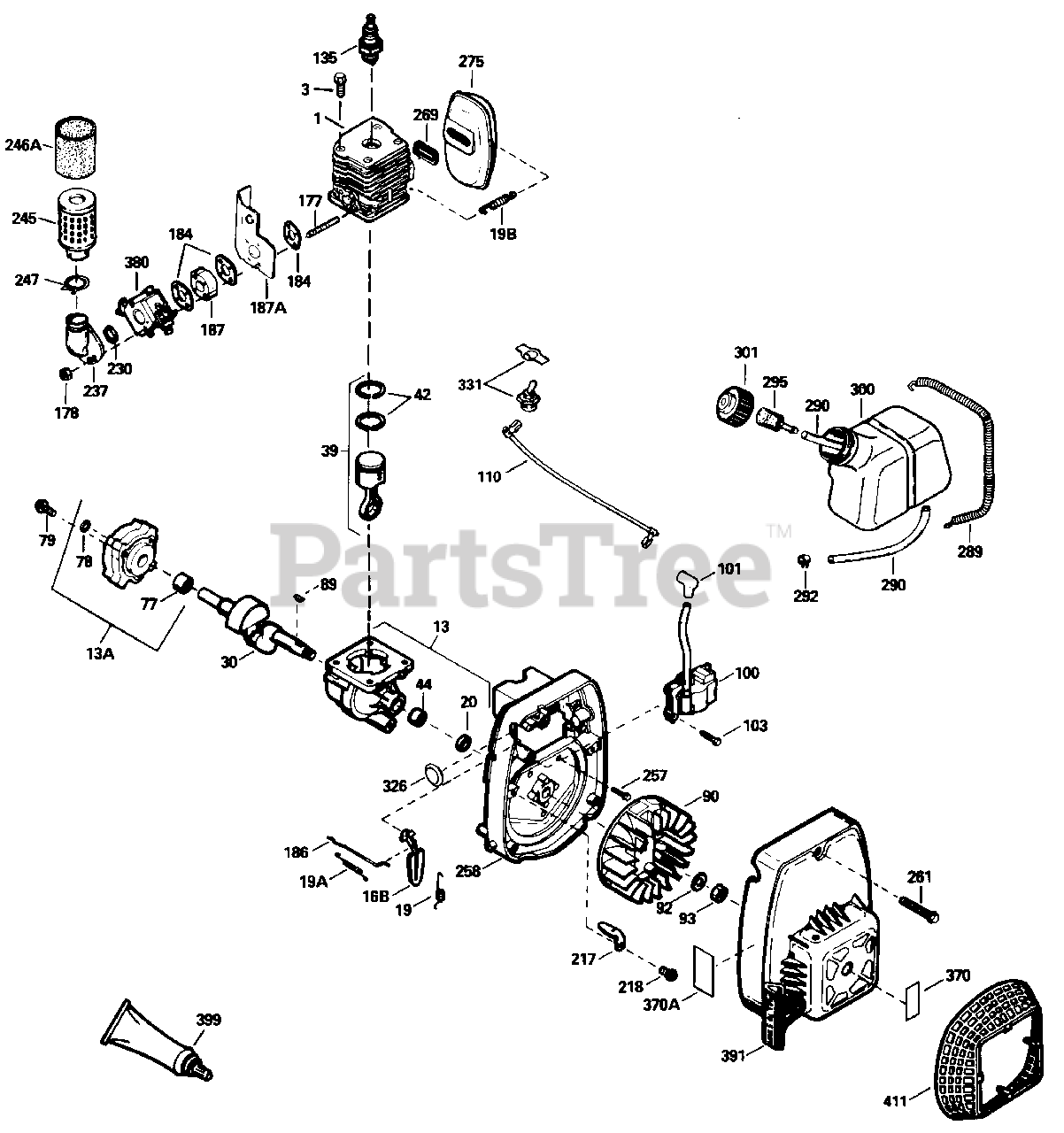

Tec 2 HP TCH300-3304 Parts Diagram

  • Title

1

Cub Cadet TC-250292

Cylinder

$

$

Not available

3

Cub Cadet TC-650888

Screw, Torx Int. Drive Flanged Hd., 1/4-20 x 43/64

$1.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-270288

Crankcase Ass'y.

Note: (Incl. Nos. 20 & 44)

$

$

Currently unavailable

13A

Cub Cadet TC-270291

Cover Ass'y., Crankcase

Note: (Incl. Nos. 77 & 78)

$

$

Currently unavailable

16B

Cub Cadet TC-490303

Vane, Air

$

$

Not available

19

Cub Cadet TC-570669

Spring, Governor

$

$

Currently unavailable

19A

Cub Cadet TC-570690

Spring, Back Lash

$1.99

$

In Stock, Qty 5

0

19B

Cub Cadet TC-570650

Spring, Muffler

$

$

Currently unavailable

20

Cub Cadet TC-510328

Seal, Oil

$10.99

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-290620

Crankshaft

$

$

Currently unavailable

39

Cub Cadet TC-310285

Piston & Rod Ass'y.

Note: (Incl. Nos. 29 & 42)

$

$

Not available

42

Cub Cadet TC-310275

Ring Set, Piston

$

$

Not available

44

Cub Cadet TC-530163

Bearing, Cartridge

$

$

Currently unavailable

77

Cub Cadet TC-530162

Bearing, Cartridge

$

$

Currently unavailable

78

Cub Cadet TC-510329

Seal, Oil

$10.99

$

In Stock, only 3 left!

0

79

Cub Cadet TC-650844

Screw, Hex Washer Hd. Taptite, 1/4-20 x 3/4

$

$

Currently unavailable

89

Cub Cadet TC-611054

Key, Flywheel

$1.99

$

In Stock, only 4 left!

0

90

Cub Cadet TC-611055

Flywheel

$68.99

$

In Stock, only 1 left!

0

92

Cub Cadet TC-650848

Washer, Belleville

$

$

Currently unavailable

93

Cub Cadet TC-650849

Nut, Flywheel (3/8-24)

$

$

Currently unavailable

100

Cub Cadet TC-611056

Lamination Ass'y. (Solid State)

$74.99

$

In Stock, only 1 left!

0

101

Cub Cadet TC-610118

Cover, Spark Plug

$6.49

$

In Stock, only 4 left!

0

103

Cub Cadet TC-650814

Screw, Hex Hd. Sems, 10-24 x 1
(Superseded to TC-651007)

$1.99

$

In Stock, only 4 left!

0

110

Cub Cadet TC-611135

Wire, Cut-Off

$

$

Currently unavailable

135

Cub Cadet TC-611100

Plug, Spark

$

$

Currently unavailable

177

Cub Cadet TC-650858

Stud, Air Cleaner

$

$

Currently unavailable

178

Cub Cadet TC-650580

Nut, Lock, 10-24

$

$

Currently unavailable

184

Cub Cadet TC-510327A

Gasket, Carburetor

$

$

Not available

186

Cub Cadet TC-490315

Link, Governor

$

$

Not available

187

Cub Cadet TC-570648

Spacer, Carburetor

$

$

Not available

187A

Cub Cadet TC-570666

Baffle, Carburetor

$

$

Not available

217

Cub Cadet TC-570667A

Lever, Speed Adjusting

$1.99

$

Usually ships in 3-12 days

0

218

Cub Cadet TC-650847

Screw, Hex Washer Hd. Taptite, 8/32 x 1/2

$1.99

$

In Stock, only 2 left!

0

230

Cub Cadet TC-570649

"O"-Ring, Air Cleaner

$

$

Not available

237

Cub Cadet TC-570689

Adapter, Air Cleaner

$

$

Currently unavailable

245

Cub Cadet TC-32972

Filter, Air

$13.99

$

Usually ships in 3-12 days

0

246A

Cub Cadet TC-35435

Filter, Pre-Air

$

$

Currently unavailable

247

Cub Cadet TC-33168

Clamp, Air Cleaner

$

$

Currently unavailable

257

Cub Cadet TC-650867

Screw, Hex Washer Hd. Taptite Thread Rolling, 10-24 x 1/2

$

$

Currently unavailable

258

Cub Cadet TC-350435

Base, Blower Housing

$

$

Currently unavailable

261

Cub Cadet TC-650850

Screw, Hex Washer Hd. Taptite Thread Rolling, 8/32 x 1-9/16

$

$

Currently unavailable

269

Cub Cadet TC-510336A

Gasket, Exhaust

$1.99

$

Usually ships in 3-12 days

0

275

Cub Cadet TC-390304

Muffler

$

$

Currently unavailable

289

Cub Cadet TC-570684

Spring, Fuel Tank

$

$

Currently unavailable

290

Cub Cadet TC-410246A

Line, Fuel

$

$

Currently unavailable

292

Cub Cadet TC-410253

Clamp, Fuel Line

$

$

Currently unavailable

295

Cub Cadet TC-410263

Fitting & Filter Ass'y., Fuel

$

$

Not available

300

Cub Cadet TC-410262

Tank, Fuel (1 Pint)

Note: (Incl. Nos. 290 & 295)

$

$

Currently unavailable

301

Cub Cadet TC-410248

Cap Ass'y., Fuel

$

$

Currently unavailable

326

Cub Cadet TC-570659

Plug

$

$

Currently unavailable

331

Cub Cadet TC-610650B

Switch, Toggle

$

$

Currently unavailable

370

Cub Cadet TC-550223

Decal, Name

$

$

Not available

370A

Cub Cadet TC-550237

Decal, Instruction

$

$

Currently unavailable

380

Cub Cadet TC-632508

Carburetor

Note: (Incl. No. 184)

$

$

Not available

391

Cub Cadet TC-590614A

Starter & Housing Ass'y., Rewind

$

$

Currently unavailable

399

Cub Cadet TC-510334

Gasket Eliminator

$12.99

$

Usually ships in 3-12 days

0

411

Cub Cadet TC-590570

Screen, Starter

$

$

Currently unavailable
