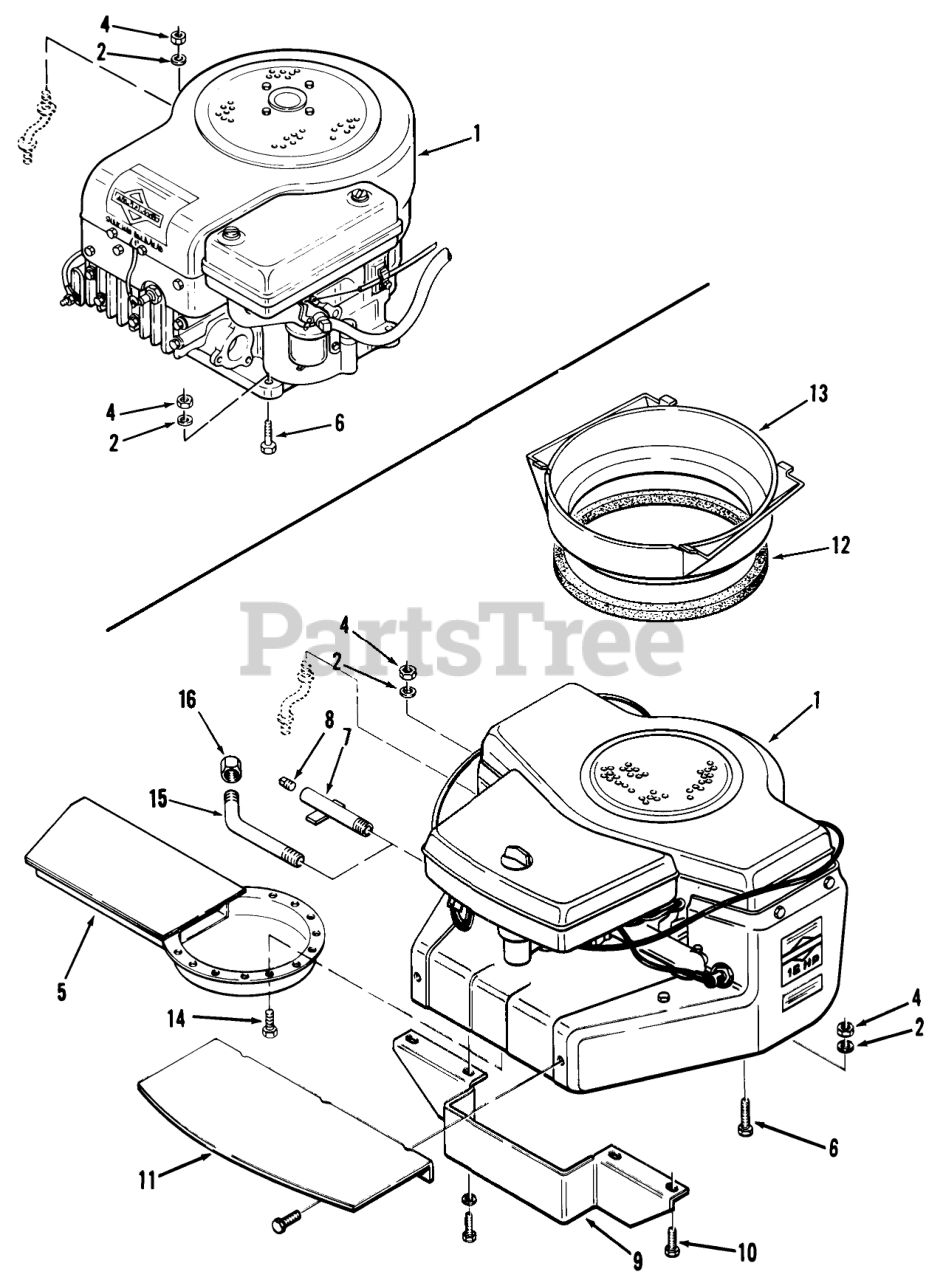

02-16BP04 (B-165) - Toro Lawn Tractor (1982) ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title

1

Toro 108569

Engine-11HP-B&S Model 252707, Type 0209-01

Note: Order Replacement Parts or Complete Assembly through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. NOTE: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON B-85 & B-165 MODELS.

$

$

Currently unavailable

1

Toro 108988

Engine-16HP-B&S Model 401707, Type 0632-01 Later Production

Note: Order Replacement Parts or Complete Assembly through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. NOTE: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON B-85 & B-165 MODELS.

$

$

Currently unavailable

1

Toro 109588

Engine-16HP-B&S Model 402707, Type 0130-03, LT-1637 Only

Note: Order Replacement Parts or Complete Assembly through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. NOTE: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON B-85 & B-165 MODELS.

$

$

Currently unavailable

2

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 108989

Exhaust Deflector B-165 Only
(Superseded to 110809)

$

$

Not available

6

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

6

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0

7

Toro 108258

Drain Pipe B-165 Only
(Superseded to 109544)

$

$

Not available

8

Toro 943419

Plug-Pipe 1/4-18

$

$

Not available

9

Toro 108552

Duct-Rear 216-5 Only

$

$

Not available

10

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 1 left!

0

11

Toro 108553

Duct-Front B-165 Only

$

$

Not available

12

Toro 108582

Insulation-Hood B-165 Only
(Superseded to 114874)

$

$

Not available

13

Toro 108583

DUCT-AIR INTAKE

$144.99

$

Usually ships in 3-6 days

0

14

Toro 108993

SCREW 8-32X3/8

$

$

Not available

15

Toro 109544

PIPE

$

$

Not available

16

Toro 5224

Cap
(Superseded to 288-4)

$23.99

$

In Stock, only 1 left!

0

1

Toro 109339

Engine-8HP-B&S Model 191707, Type 1136-02-B-85 Only

Note: Order Replacement Parts or Complete Assembly through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. NOTE: MUFFLER SUPPLIED BY ENGINE MANUFACTURER ON B-85 & B-165 MODELS.

$

$

Currently unavailable
