02-16BE01 (B-165) - Toro Lawn Tractor (1982) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

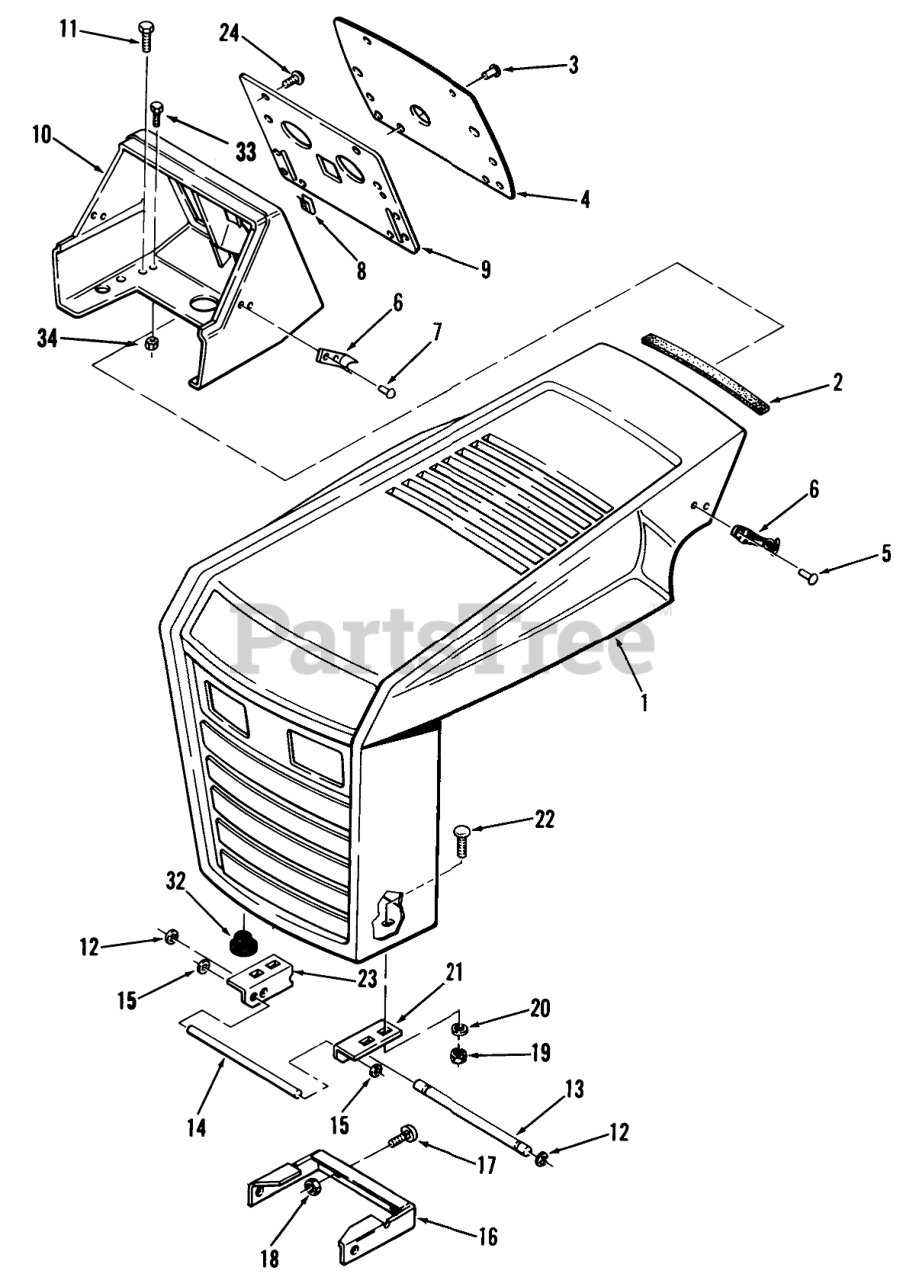

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 108244

Hood

$

$

Not available

2

Toro 108134

TRIM-CONSOLE

$

$

Not available

3

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

4

Toro 108280

PLATE-INSTRUMENT

$

$

Not available

5

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

6

Toro 106825

ASSY-FLEX DRAW LATCH

$53.99

$

Usually ships in 3-6 days

0

7

Toro 923787

RIVET
(Superseded to 3269-13)

$0.99

$

In Stock, only 2 left!

0

8

Toro 5442

SPEED NUT

$

$

Not available

9

Toro 108116

Back-Up Plate

$

$

Not available

10

Toro 109315

CONSOLE

$

$

Not available

11

Toro 926694

SCREW

$

$

Not available

12

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

13

Toro 108458

ROD-GRILL PIVOT

$

$

Not available

14

Toro 108243

ROD-HOOD STOP

$

$

Not available

15

Toro 5466

SPEED NUT

$

$

Not available

16

Toro 108764

BRACKET-HOOD PIVOT

$

$

Not available

17

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

18

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

19

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

20

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

21

Toro 108053

BRKT-HOOD PIVOT LH

$

$

Not available

22

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

23

Toro 108052

Pivot Bracket Hood RH

$

$

Not available

24

Toro 102168

SCREW BLACK

$

$

Not available

32

Toro 5667

GROMMET

$4.99

$

In Stock, Qty 5

0

33

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

34

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0
