02-11BP02 (B-115) - Toro Lawn Tractor (1980) ENGINE Parts Diagram

Lawn Tractor

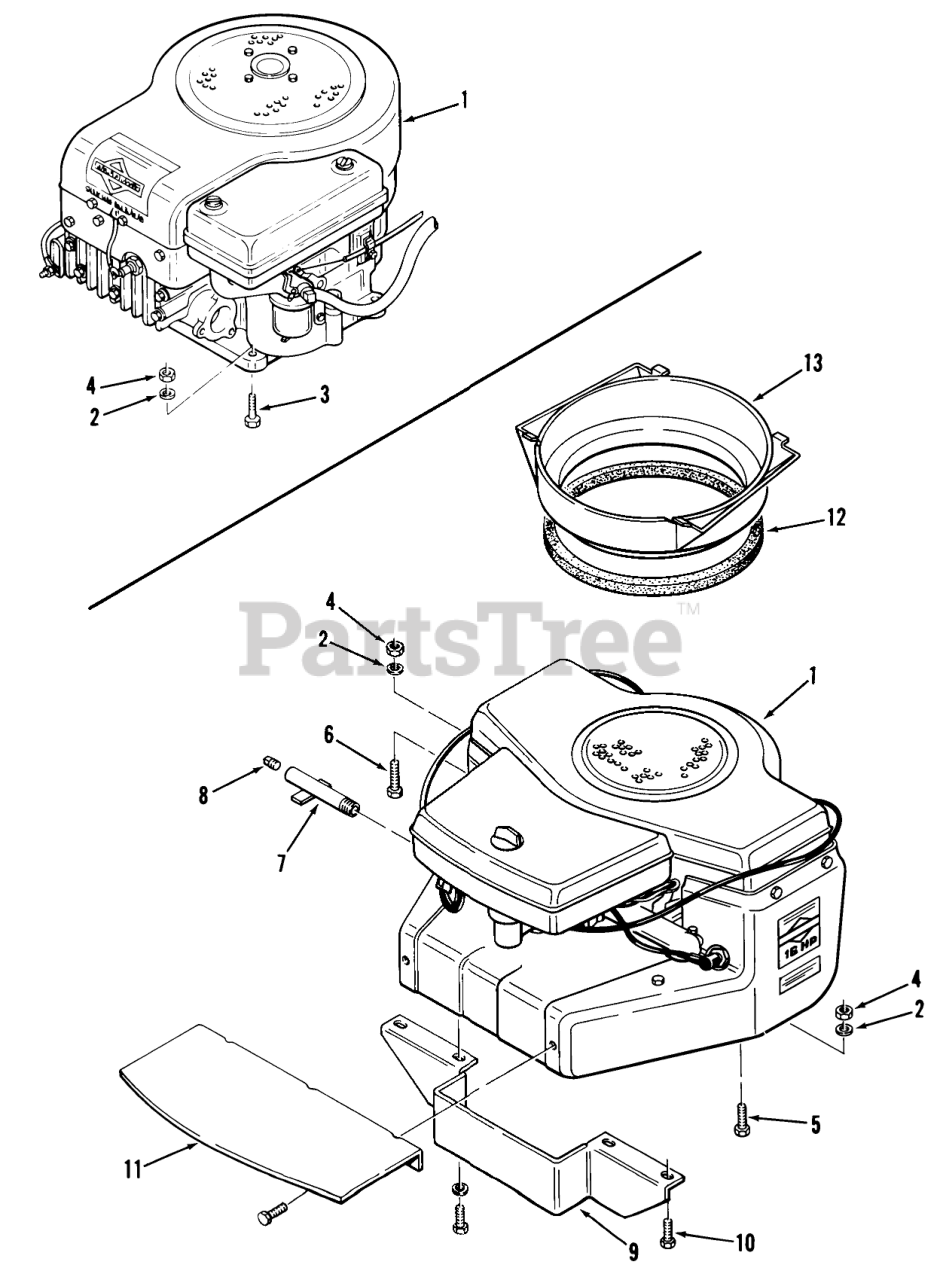

ENGINE Parts Diagram

  • Title
1

Toro 107806

Engine-8HP-B&S Model 191707, Type 1136-01

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

1

Toro 108558

Engine-11HP-B&S Model 252707, Type 0206-01

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

1

Toro 108569

Engine-11HP-B&S Model 252707, Type 0209-01

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

1

Toro 108257

Engine-16HP-B&S Model 401707, Type 0111-04

Note: Order Replacement Parts or Complete Assembly Through Manufacturer-s Distribution System, Using Model/Spec. Number Shown. WHEEL HORSE Part Number Is Listed For Cross-Reference Purposes Only; Item Is Not Available Through WHEEL HORSE.

$

$

Currently unavailable

2

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

3

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

4

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

5

Toro 908022

HHCS
(Superseded to 322-9)

$3.49

$

In Stock, only 3 left!

0

6

Toro 908021

Bolt
(Superseded to 322-7)

$1.49

$

In Stock, Qty 20+

0

7

Toro 108258

Drain Pipe B-165 Only
(Superseded to 109544)

$

$

Not available

8

Toro 943419

Plug-Pipe 1/4-18

$

$

Not available

9

Toro 108552

Duct-Rear 216-5 Only

$

$

Not available

10

Toro 908001

Bolt
(Superseded to 321-2)

$3.49

$

In Stock, only 1 left!

0

11

Toro 108553

Duct-Front B-165 Only

$

$

Not available

12

Toro 108582

Insulation-Hood B-165 Only
(Superseded to 114874)

$

$

Not available

13

Toro 11CB583

Duct-Hood Air Intake B-165 Only

$

$

Currently unavailable
