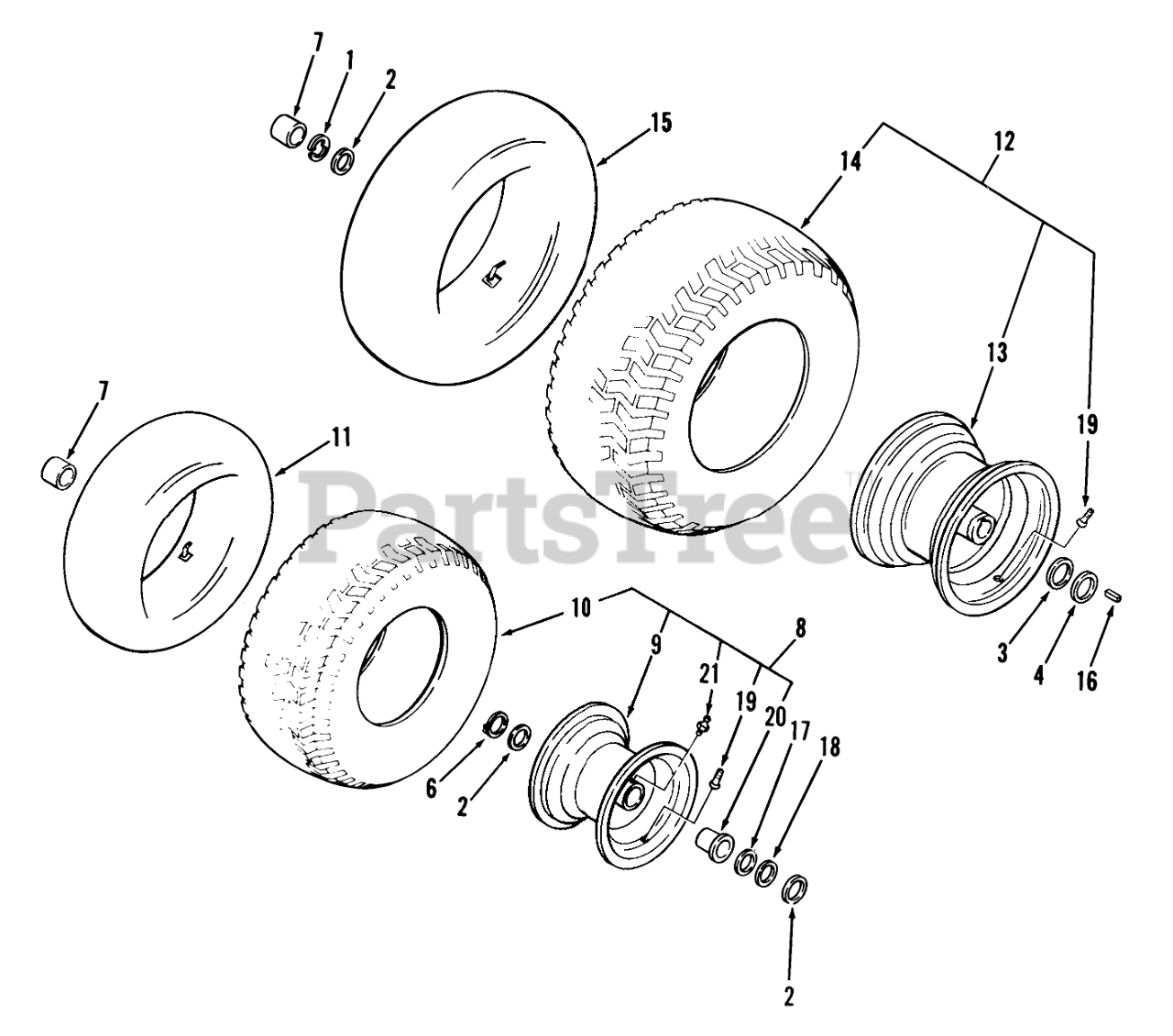

02-11BH01 (SB-371) - Toro Lawn Tractor (1982) WHEELS AND TIRES Parts Diagram

Lawn Tractor

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 104636

E Ring
(Superseded to 32151-48)

$1.99

$

In Stock, Qty 14

0

2

Toro 109262

WASHER-FLAT

$4.49

$

In Stock, only 1 left!

0

3

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

4

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

6

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

7

Toro 109261

HUB CAP

$

$

Not available

8

Toro 8187

Front Wheel

$

$

Not available

9

Toro 8118

Front Wheel (Includes Items 19, 20, 21)
(Superseded to 109502)

$

$

Not available

10

Toro 8188

TIRE

$191.99

$

Usually ships in 3-6 days

0

11

Toro 100043

Front Tube-Service Only
(Superseded to 5712)

$

$

Not available

12

Toro 109806

Assy-Wheel & Tire Rear

$

$

Not available

13

Toro 109805

Rear Wheel
(Superseded to 110432)

$327.99

$

Usually ships in 3-6 days

0

14

Toro 8287

TIRE

$

$

Not available

15

Toro 8462

Rear Tube-Service Only
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

16

Toro 1120

SQ KEY

$3.49

$

Usually ships in 3-6 days

0

17

Toro 1278

WASHER

$2.99

$

In Stock, only 3 left!

0

18

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 7

0

19

Toro 5108

VALVE

$6.99

$

In Stock, Qty 16

0

20

Toro 100166

FLANGE BEARING

$34.99

$

Usually ships in 3-6 days

0

21

Toro 109500

ZERK-GREASE

$3.99

$

Usually ships in 3-6 days

0
