02-11BH01 (SB-371) - Toro Lawn Tractor (1982) FRONT AXLE AND STEERING (MOWER HANGER) Parts Diagram

Lawn Tractor

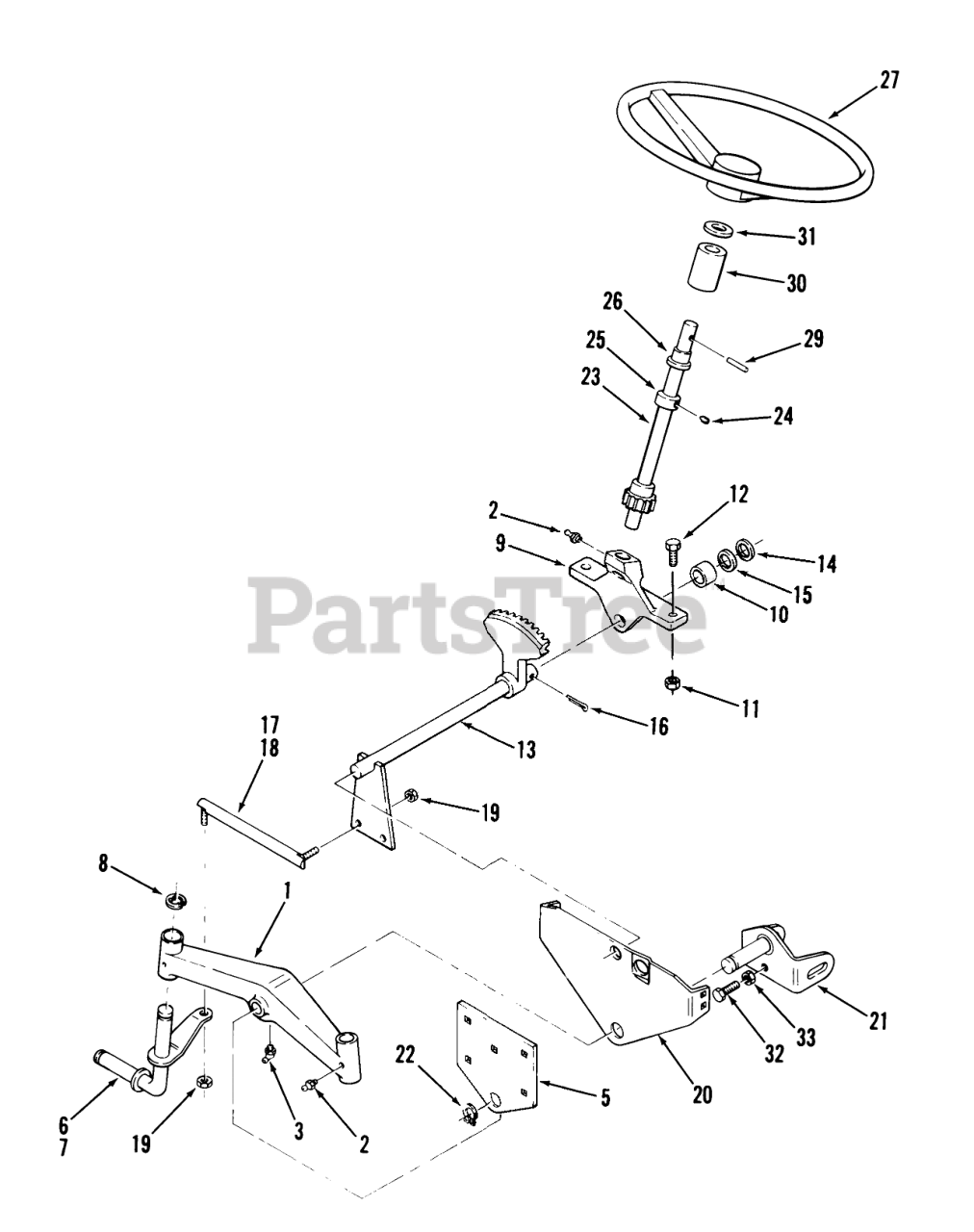

FRONT AXLE AND STEERING (MOWER HANGER) Parts Diagram

  • Title
1

Toro 106199

AXLE-FRONT R

$

$

Not available

2

Toro 1030

Zerk

$

$

Not available

3

Toro 1481

FITTING-GREASE

$6.49

$

Usually ships in 3-6 days

0

5

Toro 108910

PLATE-FRONT AXLE R

$

$

Not available

6

Toro 106302

Assy-Front Spdl RH
(Superseded to 115432)

$

$

Not available

7

Toro 106303

Assy-Front Spdl LH
(Superseded to 115431)

$

$

Not available

8

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

9

Toro 109733

Support
(Superseded to 88-2710-03)

$

$

Not available

10

Toro 6397

BEARING-BRONZE

$24.99

$

In Stock, only 1 left!

0

11

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

12

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

13

Toro 106310

ASSY-STRG SHFT LO R

$

$

Not available

14

Toro 5210

WASHER-SHIM

$2.49

$

In Stock, Qty 8

0

15

Toro 1278

WASHER

$2.99

$

In Stock, only 4 left!

0

16

Toro 932035

PIN-4

$

$

Not available

17

Toro 1772

25LL JOINT ASSY R R
(Superseded to 1772-01)

$100.99

$

Usually ships in 3-6 days

0

18

Toro 1773

BALL JOINT ASSY L R
(Superseded to 1773-01)

$100.99

$

Usually ships in 3-6 days

0

19

Toro 915002

NUT-6
(Superseded to 9150026)

$1.99

$

In Stock, Qty 20+

0

20

Toro 108909

Support Front Axle

$

$

Not available

21

Toro 108906

Front Hanger (Mower)

$

$

Not available

22

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

23

Toro 104885

ASSY-STEER SHFT U R

$

$

Not available

24

Toro 909848

SCREW-SET
(Superseded to 3245-32)

$5.49

$

In Stock, only 3 left!

0

25

Toro 1085

Collar
(Superseded to 83-2770)

$

$

Not available

26

Toro 101442

BEARING

$

$

Not available

27

Toro 106055

STEERING WH 13" PLAS

$

$

Not available

29

Toro 933221

Pin-Roll
(Superseded to 32121-111)

$2.99

$

In Stock, Qty 20+

0

30

Toro 108813

Collar

$

$

Not available

31

Toro 7896

WASHER-BOWED

$1.49

$

In Stock, only 1 left!

0

32

Toro 911424

SCREW-HH
(Superseded to 67-1900)

$4.99

$

Usually ships in 3-6 days

0

33

Toro 915234

Nut
(Superseded to 3218-1)

$1.49

$

In Stock, only 4 left!

0
