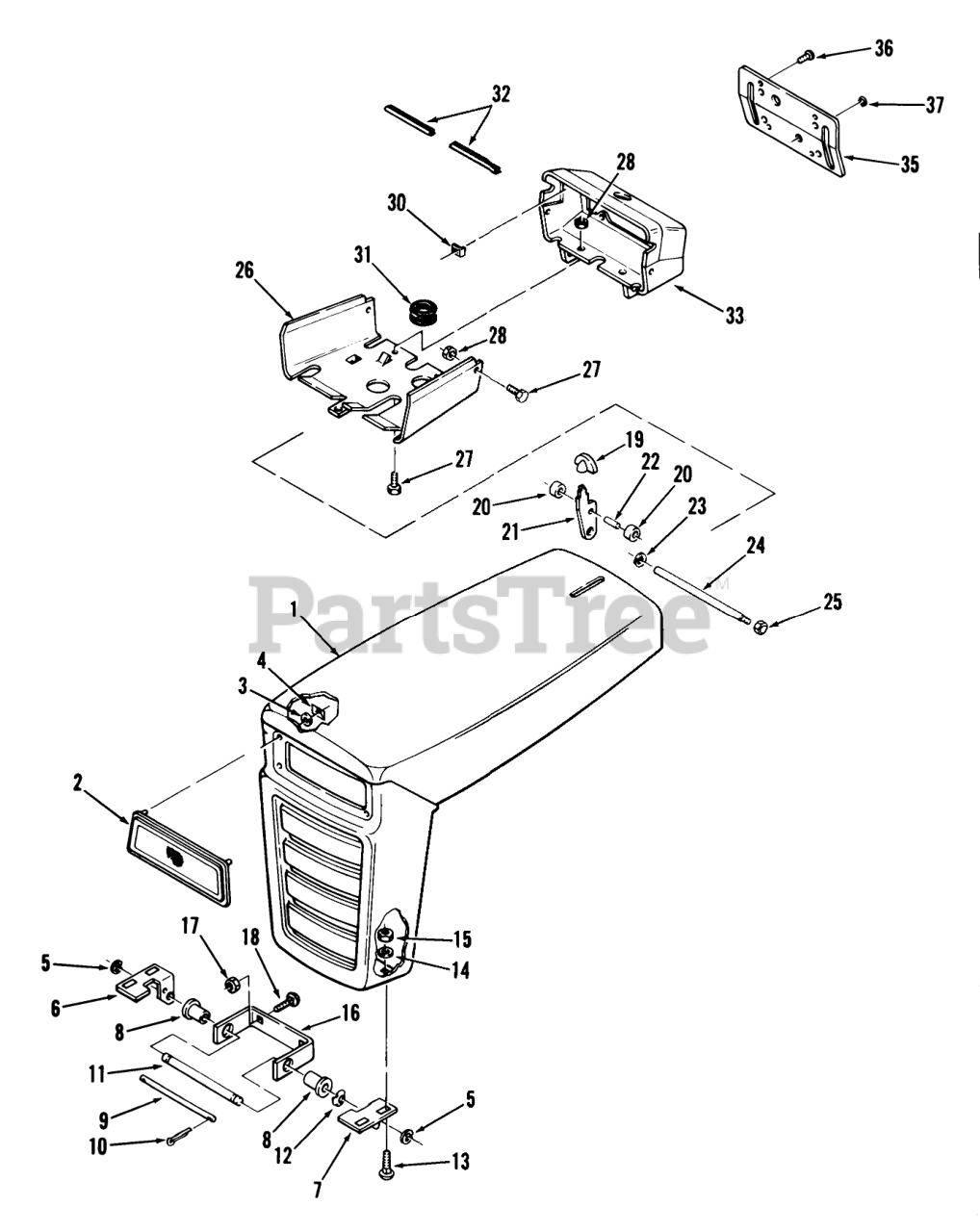

02-11BH01 (SB-371) - Toro Lawn Tractor (1982) FRAME, SHEET METAL AND COVERS Parts Diagram

Lawn Tractor

FRAME, SHEET METAL AND COVERS Parts Diagram

  • Title
1

Toro 9699

Hood
(Superseded to 114289)

$

$

Not available

2

Toro 7416

ESCUTCHEON PLATE

$

$

Not available

3

Toro 100646

WASHER

$

$

Not available

4

Toro 7721

SPEED NUT

$1.99

$

Usually ships in 3-6 days

0

5

Toro 105797

RING-RETAINING

$0.99

$

In Stock, Qty 20+

0

6

Toro 108385

BRKT-GRILL PIVOT RH

$

$

Not available

7

Toro 108384

BRKT-GRILL PIVOT LH

$

$

Not available

8

Toro 5979

BUSHING-NYLINER

$3.49

$

In Stock, Qty 9

0

9

Toro 9707

ROD PIVOT STOP

$

$

Not available

10

Toro 932000

Cotter Pin
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 16

0

11

Toro 101452

Rod-Pivot
(Superseded to 101710)

$

$

Not available

12

Toro 106553

WASHER-SPRING

$

$

Not available

13

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

14

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

15

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

16

Toro 106282

Bracket-Hood Pivot

$

$

Not available

17

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

18

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 5

0

19

Toro 5469

KNOB

$4.49

$

Usually ships in 3-6 days

0

20

Toro 5468

Roller

$

$

Not available

21

Toro 5467

LEVER HOOD LATCH

$174.99

$

Usually ships in 3-6 days

0

22

Toro 933182

SPIROL PIN

$

$

Not available

23

Toro 5466

SPEED NUT

$

$

Not available

24

Toro 5522

Rod Latch
(Superseded to 88-2090)

$

$

Not available

25

Toro 915932

USE 915932P NUT

$8.49

$

Usually ships in 3-6 days

0

26

Toro 104108

Support-Tank

$

$

Not available

27

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

28

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

30

Toro 108135

SPEED NUT

$

$

Not available

31

Toro 101971

Grommet

$

$

Not available

32

Toro 106772

EDGE TRIM 4IN OF 102896

$

$

Not available

33

Toro 5450

Housing

$

$

Not available

35

Toro 108915

Control Panel

$

$

Not available

36

Toro 102168

SCREW BLACK

$

$

Not available

37

Toro 104868

PLUG BUTTON

$

$

Not available
