02-08BP02 (B-82) - Toro Lawn Tractor (1981) ATTACHMENT LIFT Parts Diagram

Lawn Tractor

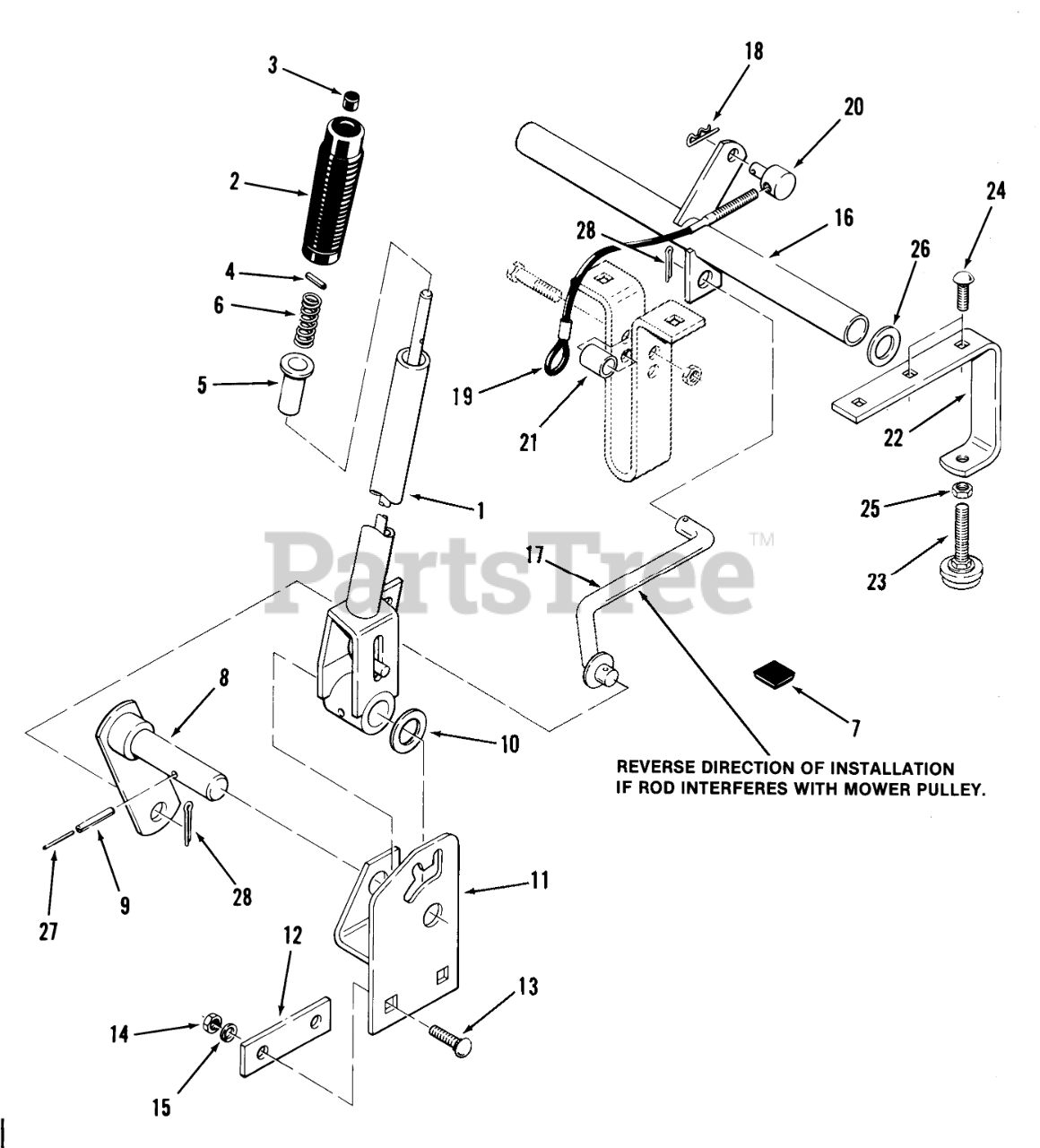

ATTACHMENT LIFT Parts Diagram

  • Title

1

Toro 108575

ASSY-HANDLE

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

2

Toro 6542

HANDGRIP

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$16.99

$

Usually ships in 3-6 days

0

3

Toro 105316

CAP-ROD, PLUNGER

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.49

$

In Stock, Qty 20+

0

4

Toro 933148

PIN-SPIROL

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$0.99

$

In Stock, only 3 left!

0

5

Toro 8130

RETAINER-SPRING

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$23.99

$

Usually ships in 3-6 days

0

6

Toro 3624

SPRING-COMPRESSION

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$4.99

$

Usually ships in 3-6 days

0

7

Toro 518211

BUMPER

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$4.49

$

In Stock, Qty 6

0

8

Toro 108665

Lift Arm

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

9

Toro 933215

ROLL PIN 1/4 X 1-1/4

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.99

$

Usually ships in 3-6 days

0

10

Toro 7993

RACE

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

11

Toro 107678

ASSY-QUADRANT

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

12

Toro 107558

Spacer

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

13

Toro 900064

Bolt
(Superseded to 3231-25)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.99

$

In Stock, Qty 20+

0

14

Toro 915113

Nut
(Superseded to 32153-2)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$0.99

$

In Stock, Qty 13

0

15

Toro 908033

Bolt
(Superseded to 110242)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$2.49

$

In Stock, Qty 5

0

16

Toro 108386

ASSY-LIFT TUBE

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

17

Toro 108389

ROD-CONNECTING

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

18

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.99

$

In Stock, Qty 20+

0

19

Toro 108390

Lift Cable
(Superseded to 109609)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

20

Toro 104524

TRUNNION-CLUTCH ROD

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$43.99

$

Usually ships in 3-6 days

0

21

Toro 108391

SPACER

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

22

Toro 108392

BRACKET-BUMPER

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

23

Toro 100087

LEVELER MOWER

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$

$

Not available

24

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.49

$

In Stock, Qty 14

0

25

Toro 915112

Nut
(Superseded to 3217-6)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.49

$

In Stock, Qty 12

0

26

Toro 920013

WASHER
(Superseded to 3256-27)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$2.99

$

In Stock, Qty 15

0

27

Toro 933267

PIN-SPIROL

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$1.49

$

In Stock, Qty 11

0

28

Toro 932009

Cotter Pin
(Superseded to 3272-9)

Note: ITEMS LISTED ARE PART OF ATTACHMENT LIFT ACCESSORY 8-4321, SUPPLIED AS STANDARD EQUIPMENT ON 5-SPEED MODELS.

$0.99

$

Usually ships in 3-6 days

0
