02-08BP01 (B-82) - Toro Lawn Tractor (1980) 5-SPEED TRANSMISSION Parts Diagram

Lawn Tractor

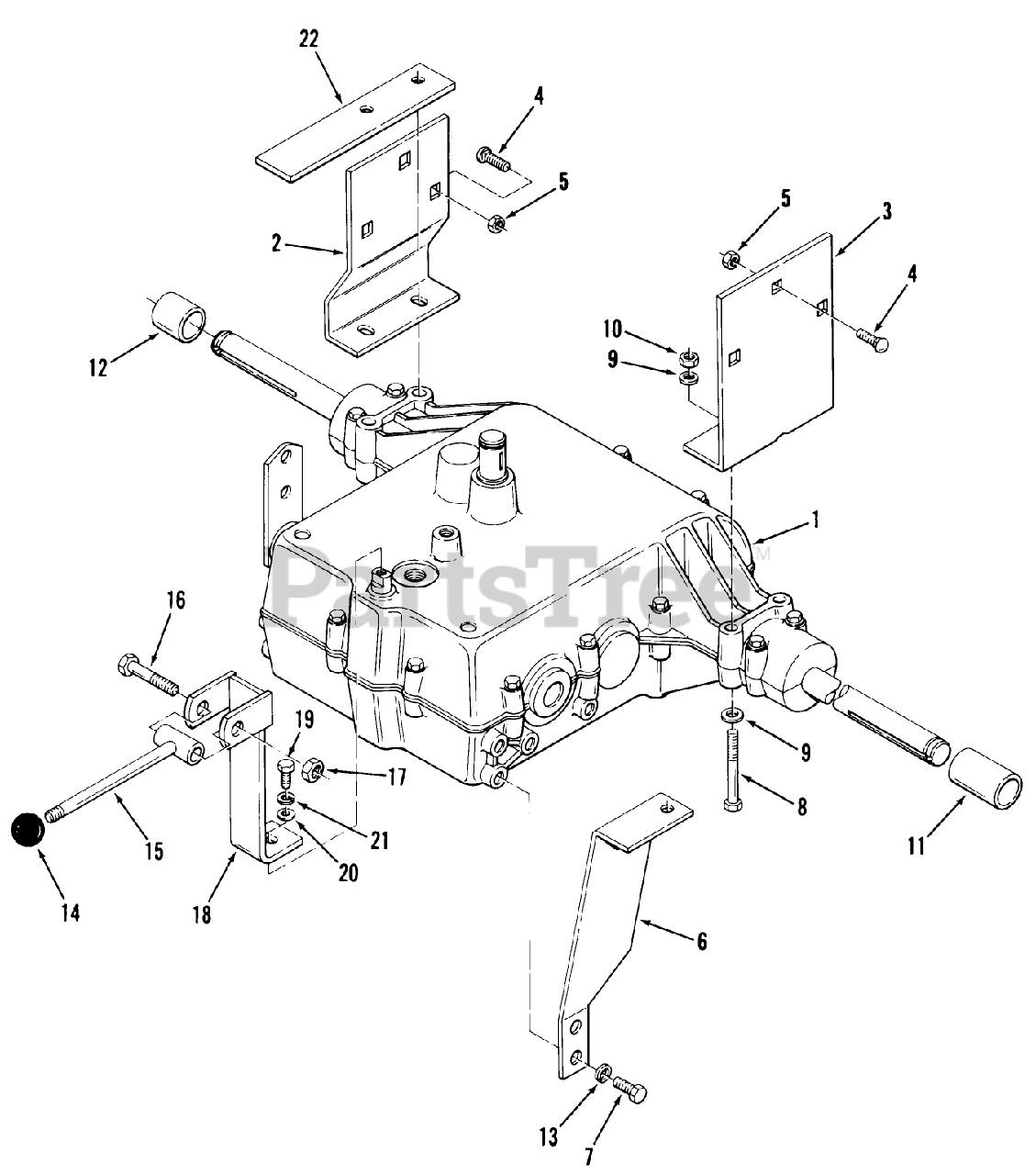

5-SPEED TRANSMISSION Parts Diagram

  • Title

1

Toro 108394

Transmission-Peerless Model 812

$

$

Not available

2

Toro 107970

Bracket-Rear Axle RH

$

$

Not available

3

Toro 107971

BRK-TRANS MTG LH

$

$

Not available

4

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

5

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

6

Toro 108395

Torque Strap
(Superseded to 113-904)

$3.23

$

Usually ships in 3-6 days

0

7

Toro 926720

Screw
(Superseded to 9264964)

$1.49

$

Usually ships in 3-6 days

0

8

Toro 908025

HHCS
(Superseded to 322-12)

$2.49

$

In Stock, Qty 10

0

9

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 1108421

Axle Spacer LH

$

$

Currently unavailable

12

Toro 108420

SPACER-AXLE RH

$

$

Not available

13

Toro 920082

Lockwasher
(Superseded to 325-34)

$3.99

$

In Stock, only 2 left!

0

14

Toro 102871

SHIFT KNOB

$

$

Not available

15

Toro 108401

ASSY-UP SHIFT ROD

$45.99

$

Usually ships in 3-6 days

0

16

Toro 908040

Bolt
(Superseded to 323-12)

$2.99

$

In Stock, Qty 20+

0

17

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 13

0

18

Toro 108398

Shift Lever-Lower

$

$

Not available

19

Toro 908153

Bolt 1/4-28 X 7/8
(Superseded to 329-5)

$

$

Not available

20

Toro 920037

WASHER

$

$

Not available

21

Toro 920081

Washer
(Superseded to 325-33)

$14.99

$

In Stock, only 4 left!

0

22

Toro 108396

Brake Stop Bar

$

$

Not available
