01597800 - Gravely Hydro-Gear Transmission Transmission - 01597800 Parts Diagram

Hydro-Gear Transmission

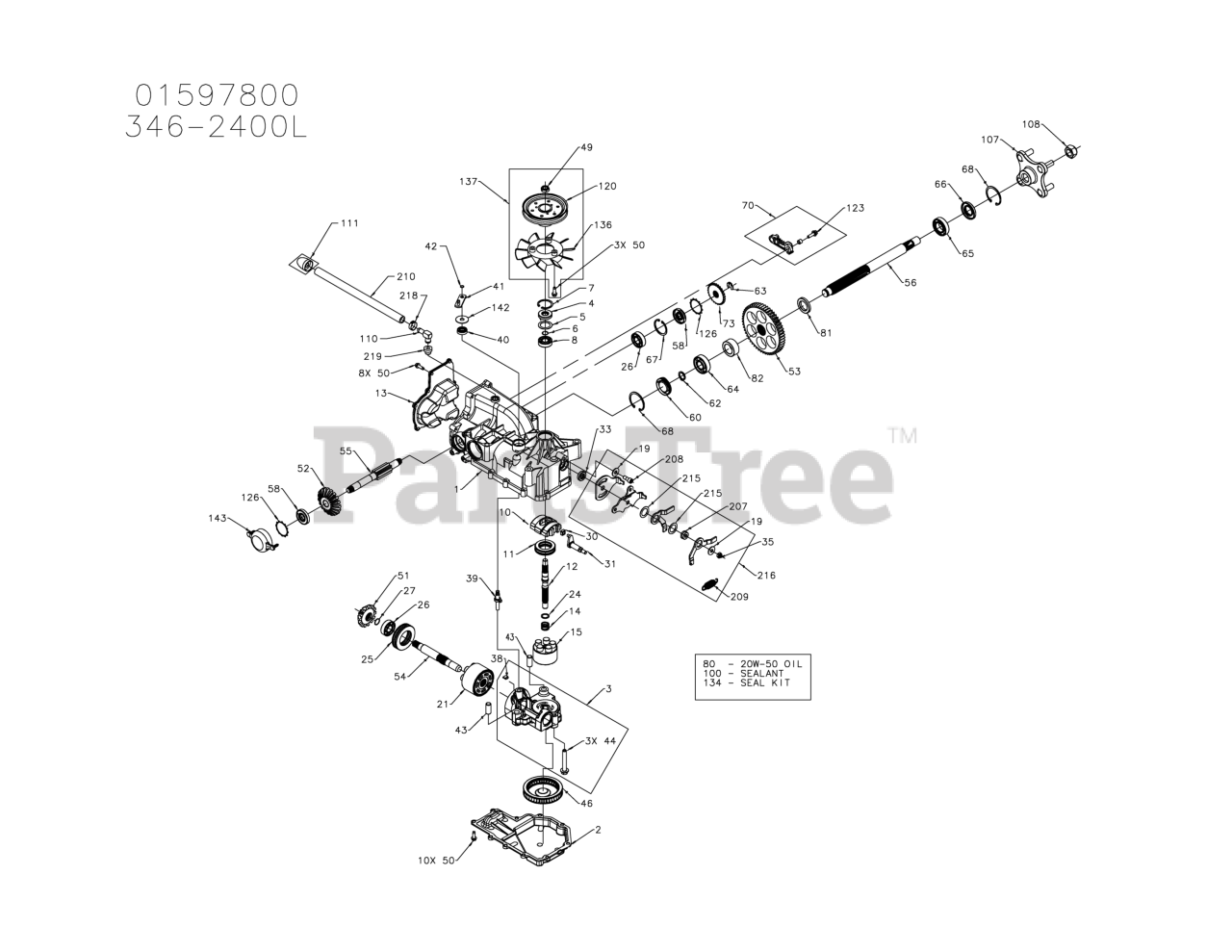

Transmission - 01597800 Parts Diagram

  • Title

1

Gravely 21543915

KIT, SHAFT-MAIN HOUSING

$

$

Not available

2

Gravely 21543983

HSG, IZT LOWER

$

$

Not available

3

Gravely 21543916

KIT, C-SECTION

$284.99

$

Usually ships in 4-12 days

0

4

Gravely 21543998

SEAL, LIP 15X35X7

$

$

Not available

5

Gravely 21543964

WASHER .98X1.37X.04

$1.99

$

Usually ships in 4-12 days

0

6

Gravely 08613300

RING, WIRE RETAINING

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 08608800

RING. RETAINING

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 08613200

BEARING, SHAFT BALL

$

$

Not available

10

Gravely 08609000

SWASHPLATE. VARIABLE

$

$

Not available

11

Gravely 08609100

BEARING. THRUST 30 X 52 X 13

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 21543719

SHAFT, INPUT

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 21543984

COVER, END IZT

$

$

Not available

14

Gravely 08621500

SPRING. BLOCK

$1.99

$

In Stock, Qty 6

0

15

Gravely 21543889

KIT, 10 CC BLOCK

$101.99

$

Usually ships in 4-12 days

0

19

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

21

ASSEMBLY BLOCK

Note: HG 70082

$

$

Not available

24

Gravely 08609400

WASHER. THRUST .59 X .79 X .04

$1.99

$

In Stock, only 1 left!

0

25

Gravely 21543747

BRG, THRUST BALL 42X68X16

$

$

Not available

26

Gravely 21543738

BRG, BALL 17X40X12

$19.99

$

Usually ships in 4-12 days

0

27

Gravely 21543960

RING, RET WIRE .561 ID

$1.99

$

Usually ships in 4-12 days

0

30

Gravely 08610700

GUIDE. SLOT

$

$

Not available

31

Gravely 08610800

ARM. TRUNNION TAPERED SQUARE

$57.99

$

Usually ships in 4-12 days

0

33

Gravely 21543997

SEAL, LIP 12X25X7

$

$

Not available

35

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

38

Note: Not Available Separate, Included In Item Number 3

$

$

Not available

39

Gravely 08609800

ACTUATOR, BYPASS

$

$

Not available

40

Gravely 08613800

SEAL, LIP

$4.49

$

Usually ships in 4-12 days

0

41

Gravely 08611100

ARM. BYPASS

$

$

Not available

42

RING, RETAINING

Note: HG 44870

$

$

Not available

43

Note: Not Available Separate, Included In Item Number 3

$

$

Not available

44

Note: Not Available Separate, Included In Item Number 3

$

$

Not available

46

Gravely 21543779

FILTER

$71.99

$

Usually ships in 4-12 days

0

49

Note: Not Available Separate, Included In Item Number 137

$

$

Not available

50

Gravely 21543759

HFHCS 1/4-20X.75

$

$

Not available

51

Gravely 21543754

GEAR, BEVEL 14T

$

$

Not available

52

Gravely 21543755

GEAR, BEVEL 19T

$

$

Not available

53

Gravely 21543756

GEAR, SPUR 53T

$

$

Not available

54

Gravely 21543761

SHAFT, MOTOR

$67.99

$

Usually ships in 4-12 days

0

55

Gravely 21543827

SHAFT, BRAKE

$

$

Not available

56

Gravely 21543757

AXLE, 1.0X12.3

$156.99

$

In Stock, only 1 left!

0

58

Gravely 21543816

SEAL, LIP 17X40X7

$14.99

$

Usually ships in 4-12 days

0

60

Gravely 21543780

PLUG, SEAL 1.86

$7.99

$

Usually ships in 4-12 days

0

62

Gravely 21543762

RING, RET .75 EXT

$

$

Not available

63

Gravely 21543800

RING, RET .440 EXT

$2.49

$

Usually ships in 4-12 days

0

64

Gravely 21543753

BRG, BALL 20X47X14

$

$

Not available

65

Gravely 21543752

BRG, BALL 25X47X12

$27.99

$

In Stock, only 1 left!

0

66

Gravely 21543758

SEAL, LIP 25X47X7

$6.99

$

In Stock, only 1 left!

0

67

Gravely 21543741

RING, RET 1.56 INT

$6.99

$

Usually ships in 4-12 days

0

68

Gravely 21543763

RING, RET 1.87 INT

$3.49

$

In Stock, only 1 left!

0

70

Gravely 00372100

BRAKE ARM, LH IZT
(Superseded to 51514300)

$52.99

$

In Stock, only 1 left!

0

73

Gravely 21543760

BRAKE, PARK SPLINE

$

$

Not available

80

Gravely 00058100

FLUID, HYDRO 20W50 QT

Note: Optional Oil Approximatley 77 oz

$

$

Not available

80

Gravely 00057100

FLUID, HYDRO 15W50 QT

Note: Reccomended Oil Approximatley 77 oz

$14.99

$

In Stock, Qty 20+

0

81

Gravely 21543864

SPACER

$6.49

$

Usually ships in 4-12 days

0

82

Gravely 21543865

SPACER

$

$

Not available

100

Gravely 21543771

SEALANT TUBE 10.1OZ.

$116.99

$

In Stock, only 1 left!

0

107

ASSEMBLY, HUB

Note: HG 70314

$

$

Not available

108

NUT, HEX LOCK 3/4-16

Note: HG 50863

$

$

Not available

110

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

111

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

120

Note: Not Available Separate, Included In Item Number 137

$

$

Not available

123

Note: Not Available Separate, Included In Item Number 70

$

$

Not available

126

Gravely 21543828

RING, RET 1.43"

$

$

Not available

134

Gravely 21543905

KIT, SEAL

$

$

Not available

136

Note: Not Available Separate, Included In Item Number 137

$

$

Not available

137

KIT, FAN/PULLEY

Note: HG 70591

$

$

Not available

142

Gravely 21543855

WASHER, .392 X 1.250 X .0

$

$

Not available

143

Gravely 21543853

CAP, BRAKE

$

$

Not available

207

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

208

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

209

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

210

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

215

Note: Not Available Separate, Included In Item Number 216

$

$

Not available

216

Gravely 21543939

BREATHER ASSEMBLY

$33.99

$

Usually ships in 4-12 days

0

218

Note: Not Available Separate, Included In Item Number 217

$

$

Not available

219

Gravely 21543725

BUSHING-VENT (RUBBER)

$

$

Not available
