01-19KE02 (C-195) - Toro Garden Tractor (1984) WHEELS AND TIRES Parts Diagram

Garden Tractor

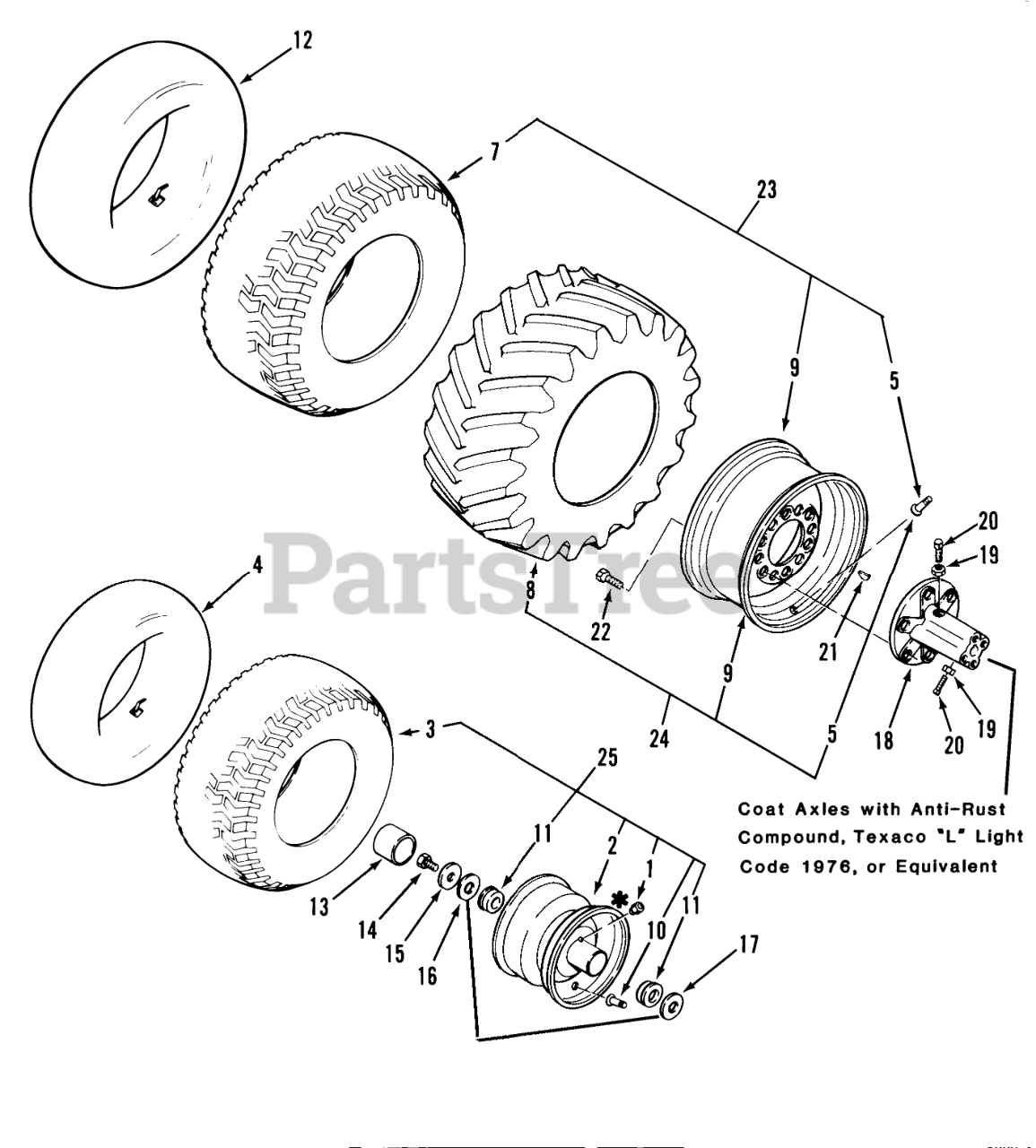

WHEELS AND TIRES Parts Diagram

  • Title

1

Toro 1030

Zerk

$

$

Not available

2

Toro 109763

Front Wheel (Includes Item 1)

$

$

Currently unavailable

3

Toro 8287

TIRE

$

$

Not available

4

Toro 106396

TUBE-TIRE

$41.99

$

Usually ships in 3-6 days

0

5

Toro 5435

VALVE TUBELESS

$

$

Not available

7

Toro 8285

Tire 27 x 9.50-15

$

$

Not available

8

Toro 9116

Rear Tire 27 x 8.50-15 Cleat

$

$

Currently unavailable

9

Toro 102900

Rear Wheel

$

$

Not available

10

Toro 5108

VALVE

$6.99

$

In Stock, Qty 14

0

11

Toro 104396

BEARING WHEEL

$

$

Not available

12

Toro 8461

Tube (Service Only)

$

$

Not available

13

Toro 104398

HUBCAP

$

$

Not available

14

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 5

0

15

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

16

Toro 920251

USE 920251P WASHER

$3.49

$

In Stock, only 2 left!

0

17

Toro 920252

Washer
(Superseded to 9202524)

$1.99

$

Usually ships in 3-6 days

0

18

Toro 102372

REAR HUB R

$

$

Not available

19

Toro 915236

Nut
(Superseded to 9152366)

$3.49

$

In Stock, only 1 left!

0

20

Toro 909556

SS-SQ HD3/8-16X1 1/2
(Superseded to 3243-13)

$4.49

$

Usually ships in 3-6 days

0

21

Toro 937121

WOODRUFF KEY

$

$

Not available

22

Toro 1487

LUG BOLT WHEEL 7/162

$18.99

$

Usually ships in 3-6 days

0

23

Toro 102899

Rear Wheel and Tire Assy Turf

$

$

Not available

24

Toro 110006

Right Rear Wheel and Tire Assy-Cleat

$

$

Not available

24

Toro 110007

Left Rear Wheel and Tire Assy-Cleat

$

$

Not available

25

Toro 109761

Front Wheel and Tire Assy

$

$

Not available
