01-19KE02 (C-195) - Toro Garden Tractor (1984) THROTTLE, CHOKE, FUEL AND EXHAUST SYSTEM Parts Diagram

Garden Tractor

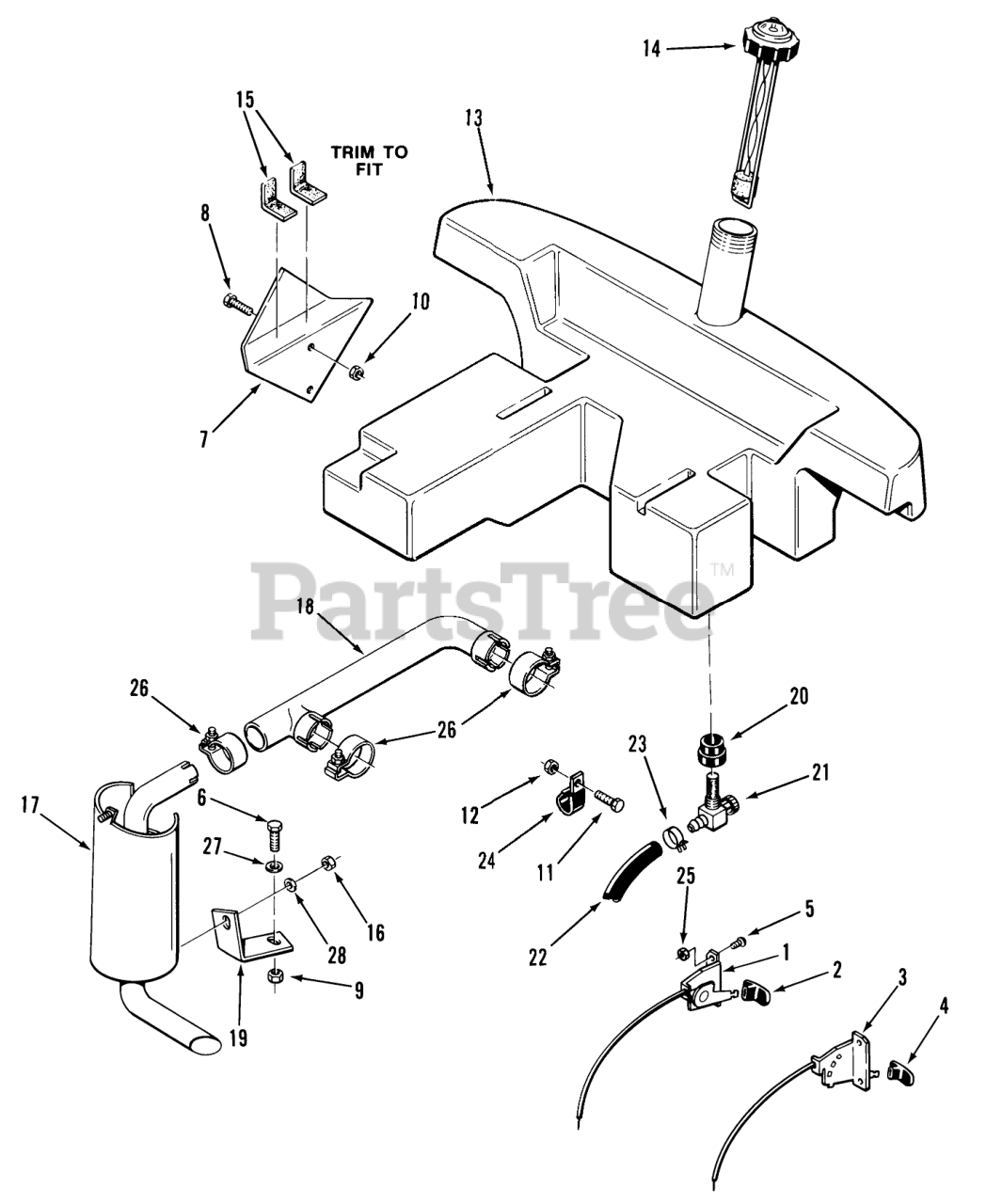

THROTTLE, CHOKE, FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Toro 108044

CONTROL-THROTTLE

$

$

Not available

2

Toro 108509

KNOB-THROTTLE

$7.49

$

In Stock, only 3 left!

0

3

Toro 108043

CONTROL-CHOKE

$

$

Not available

4

Toro 108510

KNOB-CHOKE

$10.99

$

In Stock, Qty 8

0

5

Toro 923795

RIVET-4

$0.99

$

Usually ships in 3-6 days

0

5

Toro 910792

Screw
(Superseded to 910790)

$0.99

$

In Stock, only 2 left!

0

6

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

7

Toro 109775

Support Bracket

$

$

Not available

8

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

9

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

10

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 14

0

11

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

12

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

13

Toro 109653

Fuel Tank

$

$

Not available

14

Toro 109655

ASSY GAGE CAP

$

$

Not available

15

Toro 108134

TRIM-CONSOLE

$

$

Not available

16

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

17

Toro 109690

Muffler

$

$

Not available

18

Toro 106867

MANIFOLD-EXHAUST

$

$

Not available

19

Toro 109749

Muffler Mounting Bracket

$

$

Not available

20

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 12

0

21

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

22

Toro 108201

Fuel Line-69 in. Long
(Superseded to 110521)

$

$

Not available

23

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

24

Toro 8830

CLIP

$2.49

$

In Stock, Qty 8

0

24

Toro 105490

CLAMP

$

$

Not available

25

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

26

Toro 108882

CLAMP-MUFFLER

$

$

Not available

27

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 15

0

28

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0
