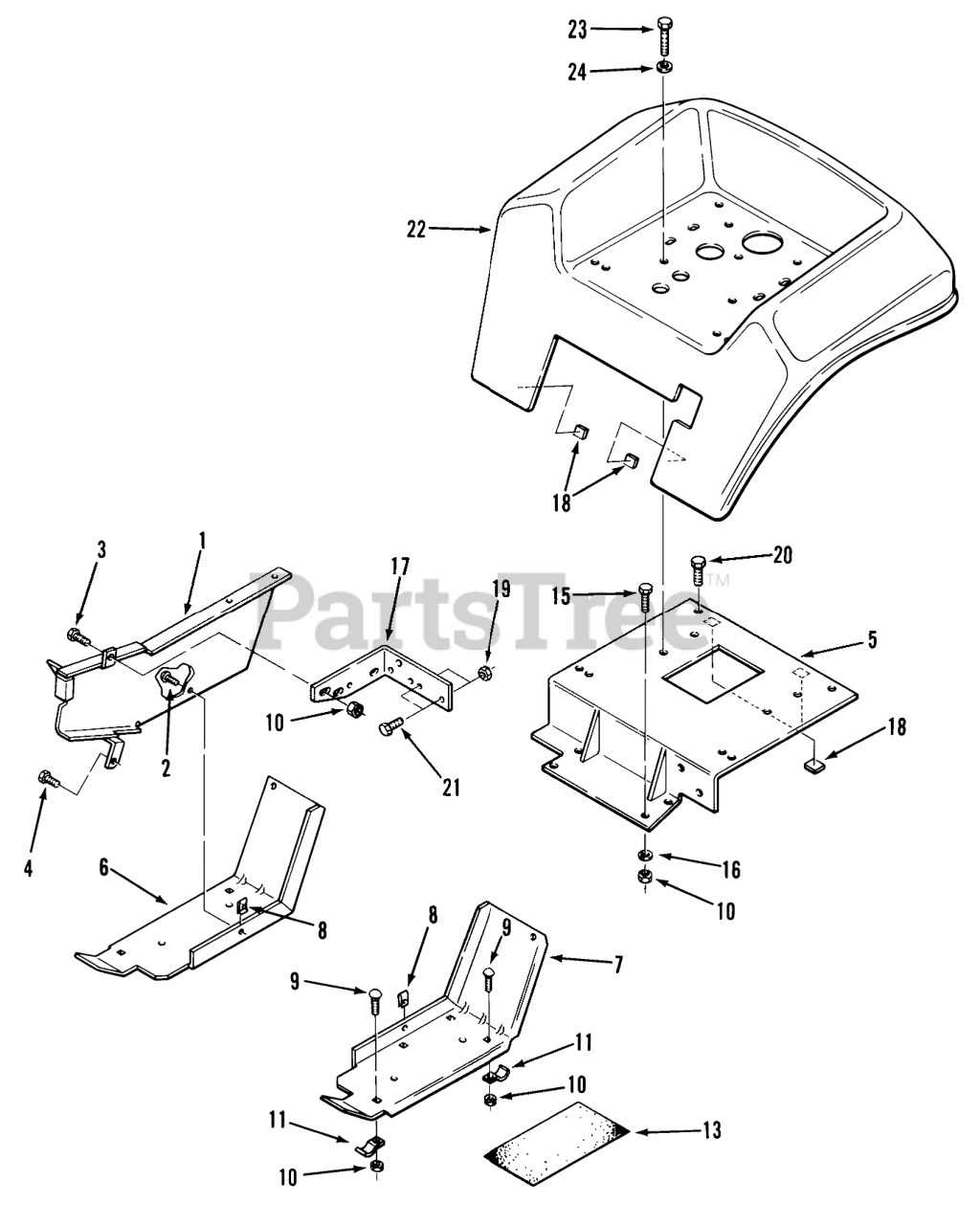

01-19KE02 (C-195) - Toro Garden Tractor (1984) SHEET METAL AND COVERS Parts Diagram

Garden Tractor

SHEET METAL AND COVERS Parts Diagram

  • Title

1

Toro 109681

Belt Guard

$

$

Not available

2

Toro 910837

Screw
(Superseded to 9108372)

$0.99

$

In Stock, Qty 20+

0

3

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

4

Toro 926694

SCREW

$

$

Not available

5

Toro 109687

Fender Support (Illustrated) 01-19KE01 Only

$

$

Not available

5

Toro 110485

Fender Support 01-19KE02 Only

$

$

Not available

6

Toro 106222

Footrest-RH
(Superseded to 106222-01)

$

$

Not available

7

Toro 106223

FOOTREST LH R

$

$

Not available

8

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

9

Toro 900036

CARRIAGE BOLT -4

$2.49

$

Usually ships in 3-6 days

0

10

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 12

0

11

Toro 7456

BRACKET

$

$

Not available

13

Toro 106264

PAD-FOOTREST

$45.99

$

In Stock, only 2 left!

0

13

Toro 110180

PAD-FOOTREST

$

$

Not available

15

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

16

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0

17

Toro 109554

BRACKET-BELTB

$

$

Not available

18

Toro 518211

BUMPER

$4.49

$

In Stock, Qty 6

0

19

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 8

0

20

Toro 926715

Bolt
(Superseded to 9267154)

$3.49

$

In Stock, Qty 6

0

21

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

22

Toro 109656

Fender (Illustrated) 01-19KE01 Only

$

$

Not available

22

Toro 110493

Fender 01-19KE02 Only

$

$

Not available

23

Toro 913467

S.T. Bolt 5/16-18 x 1 1/2

$

$

Currently unavailable

24

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 8

0
